Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications >> Rear Drive Axle/Differential >> Torque Specifications

Torque Specifications

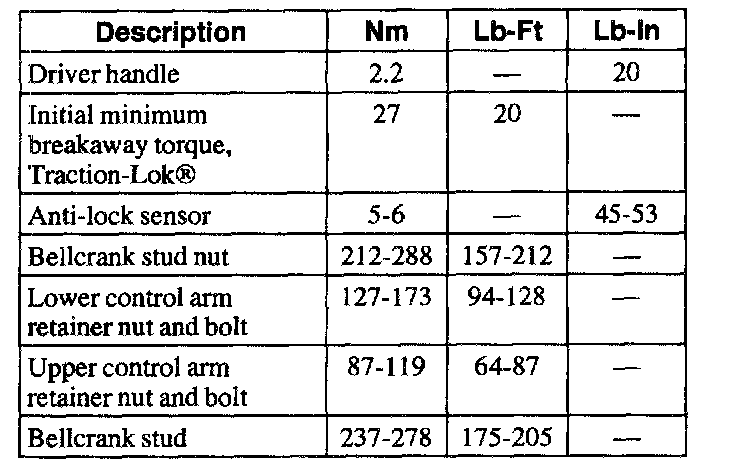

1 Of 3:

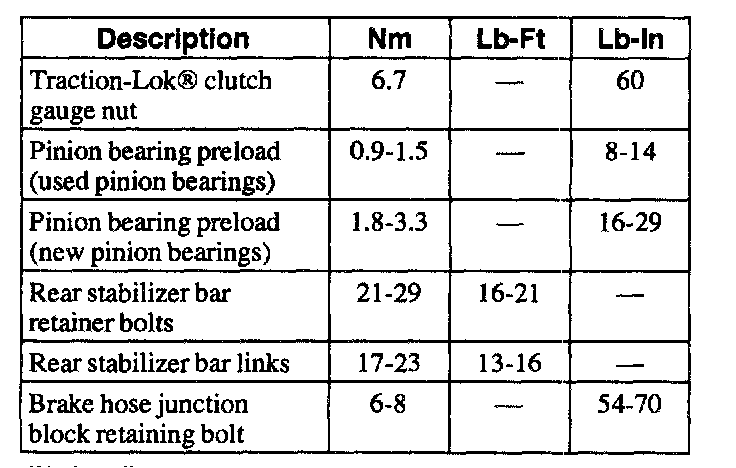

2 Of 3:

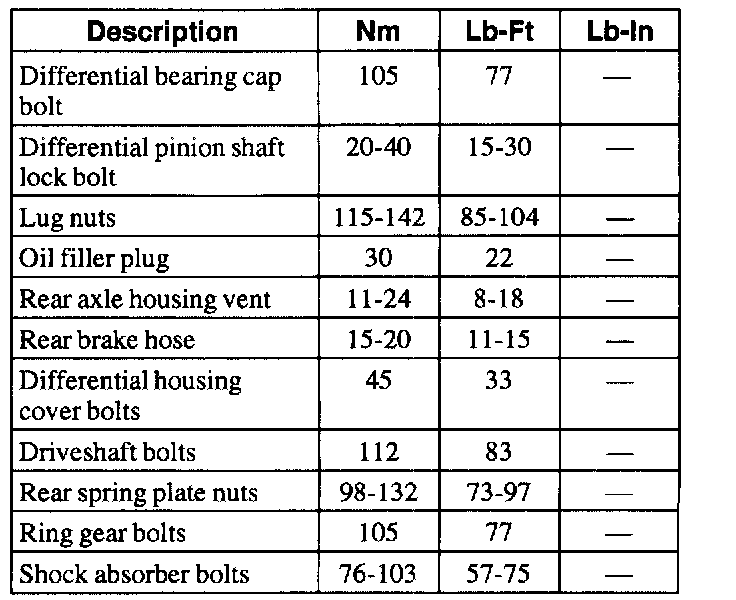

3 Of 3:





Torque Specifications
