Ford Traction LOK 8.8

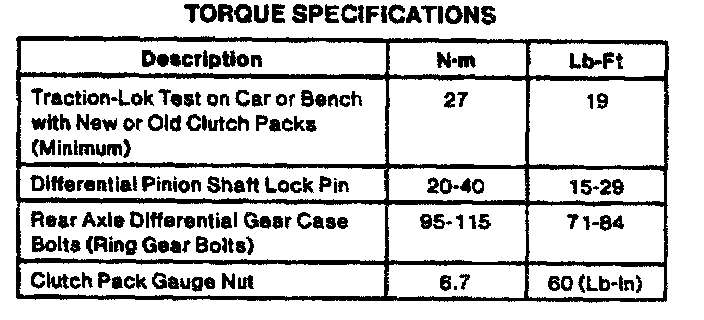

Ford Traction Lok 8.8, Differential (Mustang):

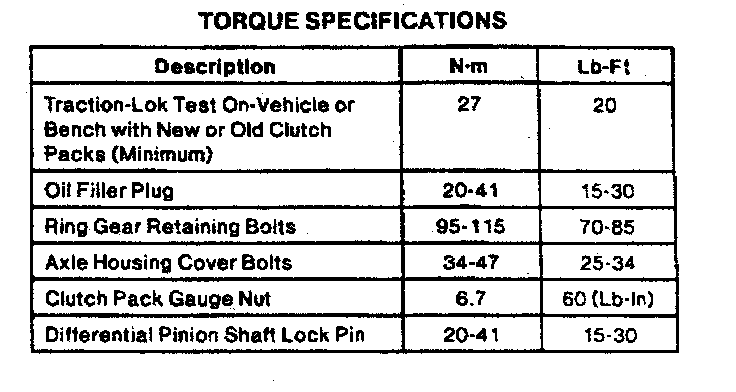

Ford Traction Lok 8.8, Differential (T-bird/Cougar):

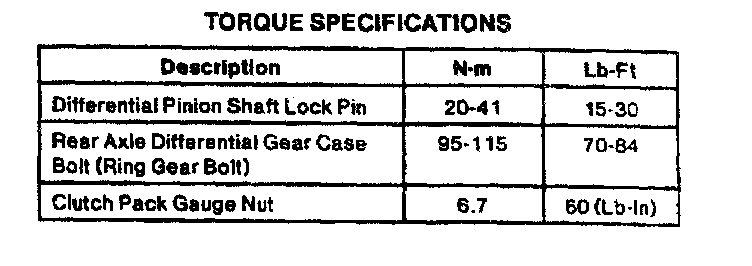

Ford Traction Lok 8.8, Differential (Town Car):

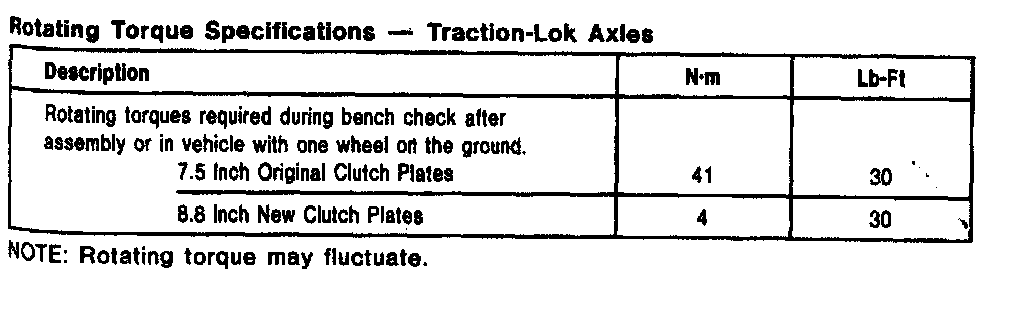

Ford Traction Lok 8.8, Clutch Plates (All Other Vehicles):
