Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Testing and Inspection >> RF Window/Door Lock Control Switch

RF Window/Door Lock Control Switch

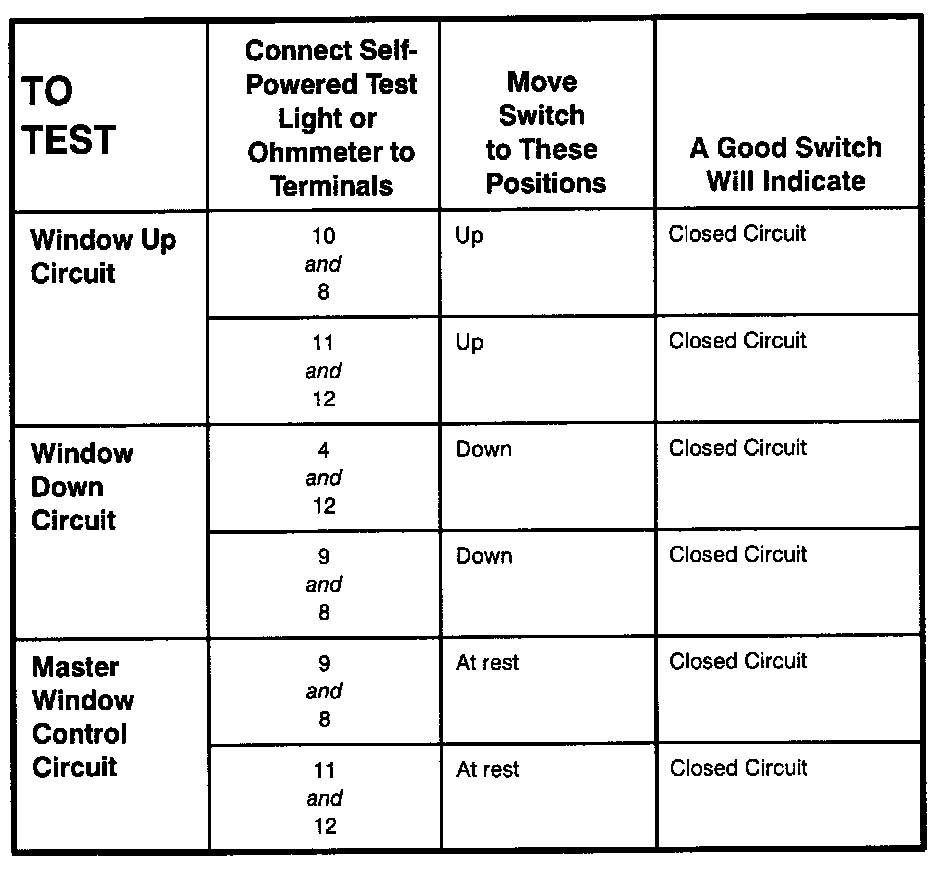

Component Testing Procedure:

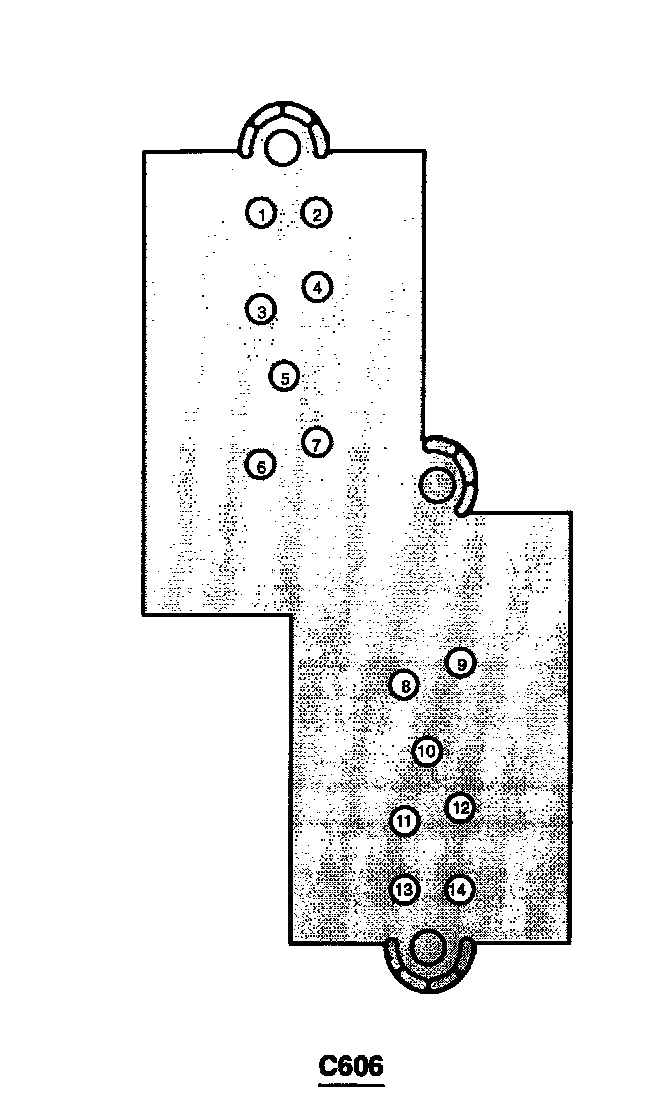

Terminals:

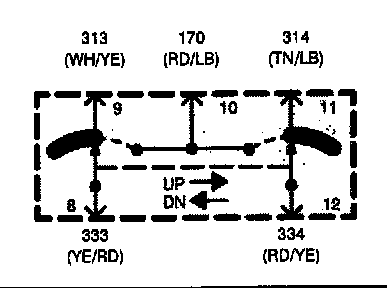

Schematic:
