Component Test

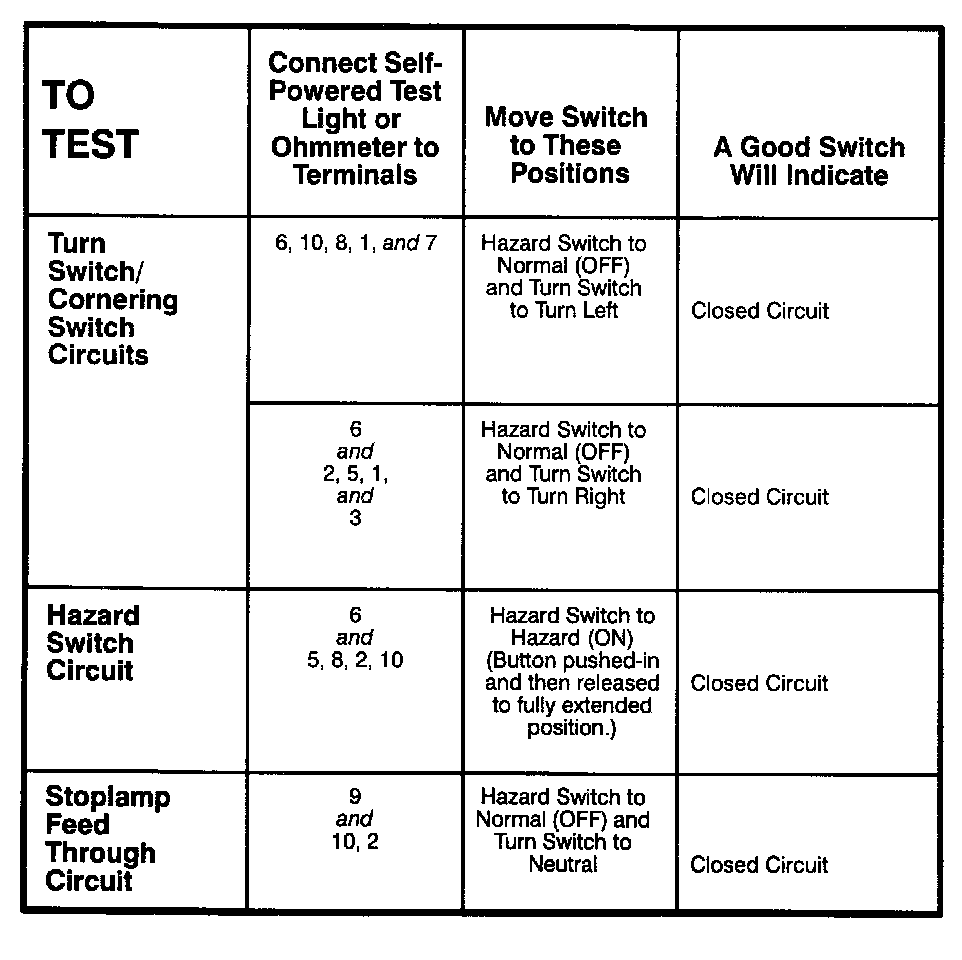

Component Testing Procedure:

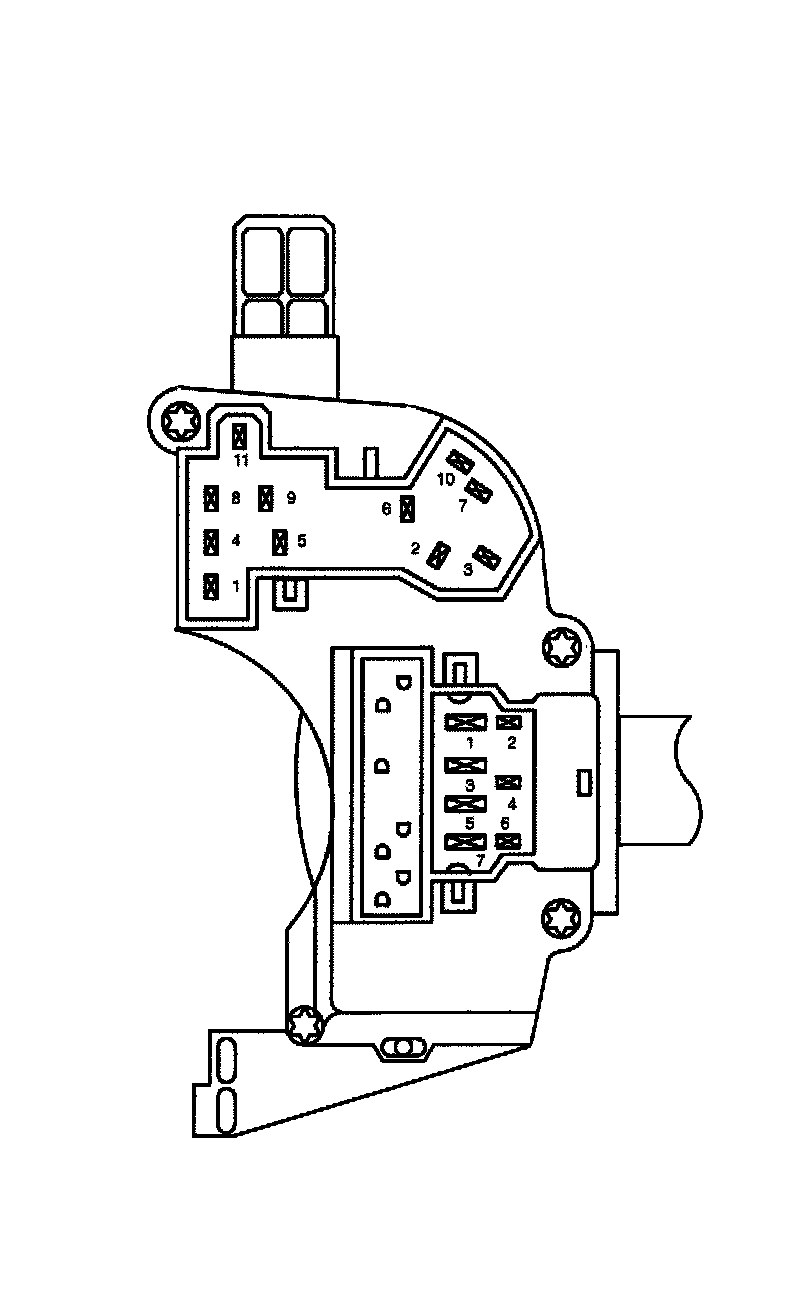

Terminals:

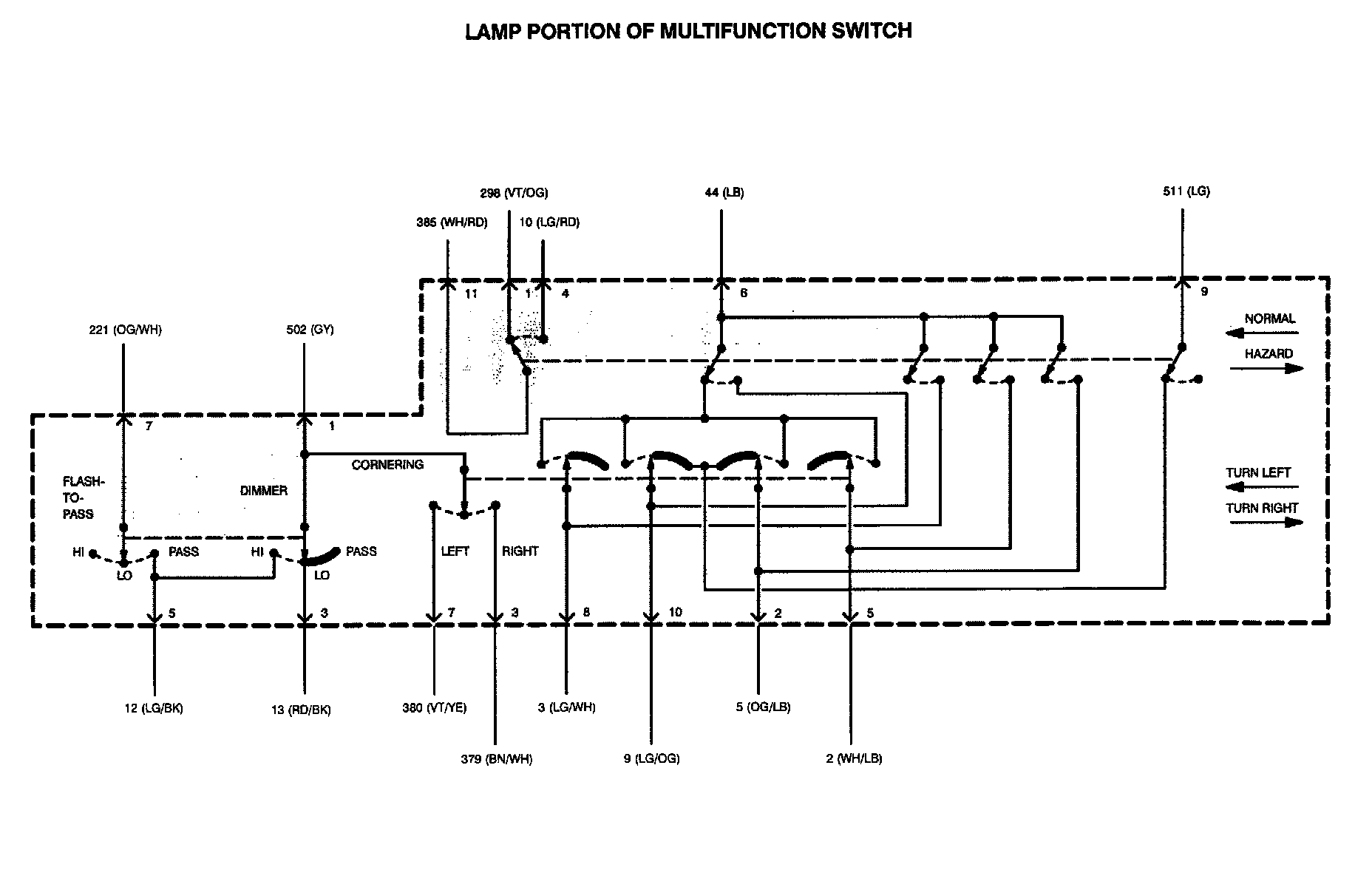

Schematic:

NOTE: For additional testing relating to the Multifunction Switch, please see the procedures at Ignition Switch / Testing and Inspection.
