A/C Cycling Switch

REMOVAL

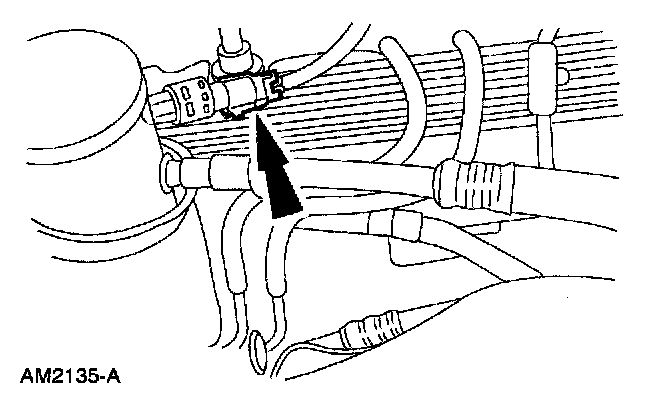

1. Disconnect the wire harness connector.

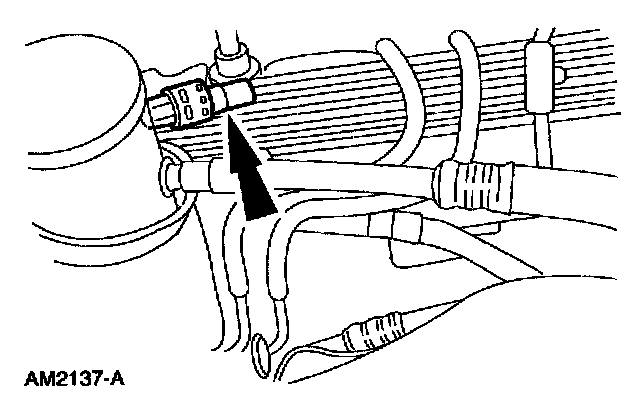

2. Remove the A/C cycling switch.

INSTALLATION
1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
