Deactivator Switch

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the deactivator switch.

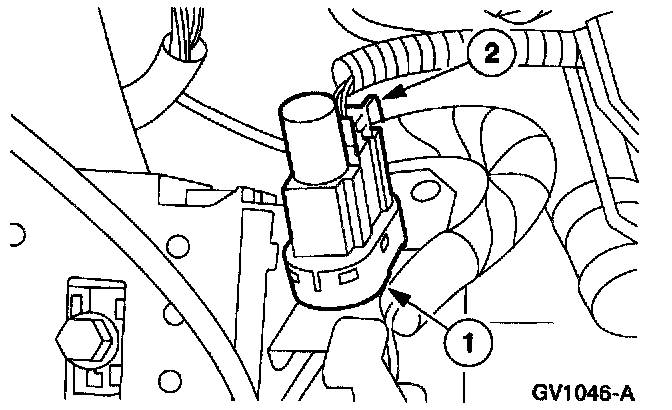

1 Disconnect the electrical connector.
2 Rotate counterclockwise and remove the deactivator switch.

INSTALLATION







1. Pull the plunger out to its full travel.
2. Fully depress the brake pedal.







3. Install the deactivator switch.
1 Position the deactivator switch in the bracket and rotate clockwise.
2 Connect the electrical connector.
4. Slowly release the brake pedal.
5. Connect the battery ground cable.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.
