Rear

Removal
1. Remove rear seat bottom.





2. Disconnect the rear anti-lock brake sensor electrical connector.

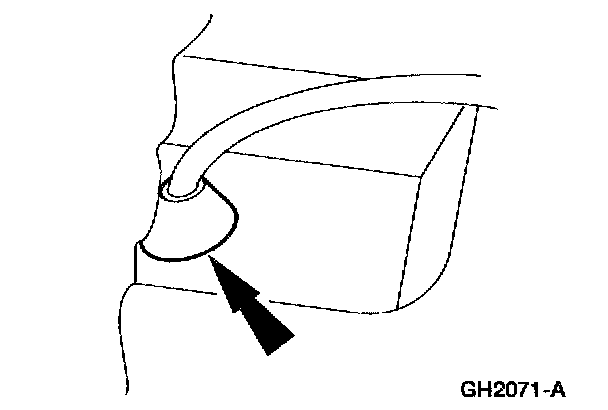

3. Push the sensor harness grommet through the passenger compartment floor.
4. Raise and support the vehicle.

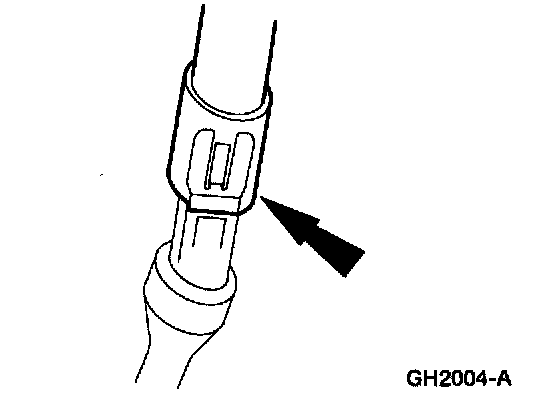

5. Disconnect the routing clips.

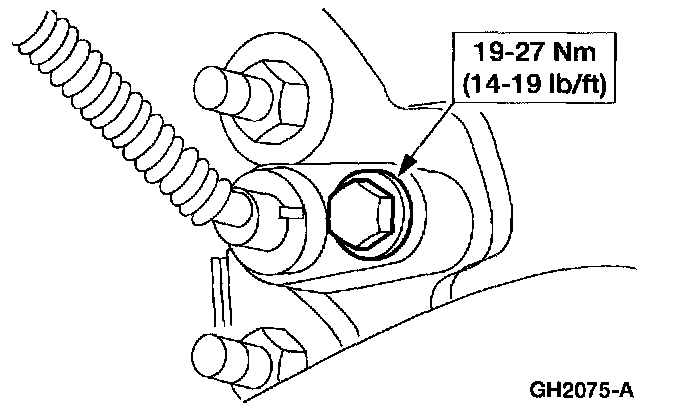

6. Remove the rear anti-lock brake sensor.
1 Remove the bolt.
2 Remove the sensor.

Installation





1. To install, reverse the removal procedure.
