Front

Removal

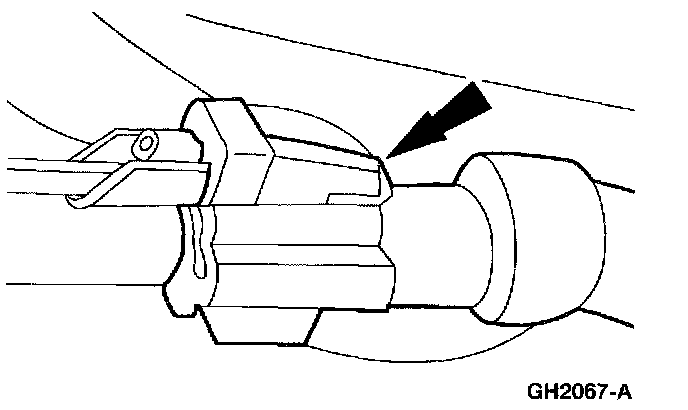

1. Disconnect the front anti-lock brake sensor electrical connector.
2. Raise and support the vehicle.





3. Remove the routing clips.

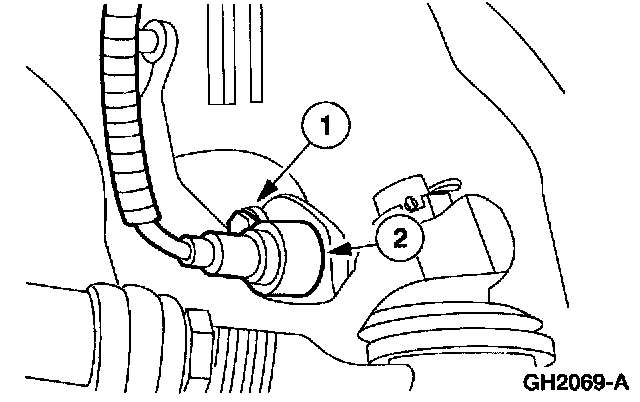

4. Remove the front anti-lock brake sensor.
1 Remove the bolt.
2 Remove the sensor.


Installation

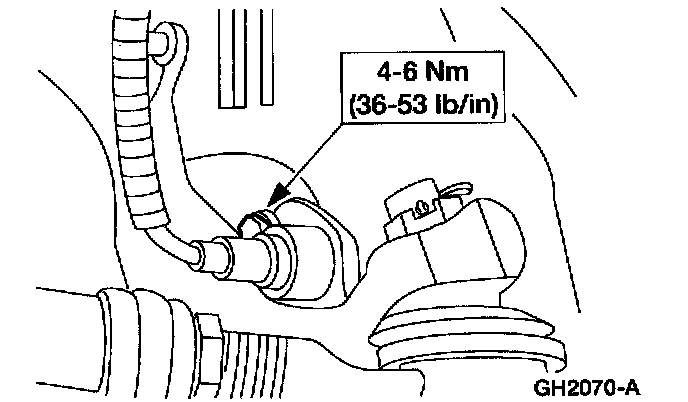

1. To install, reverse the removal procedure.
