Driver Seat Control Switch (Base and Police)

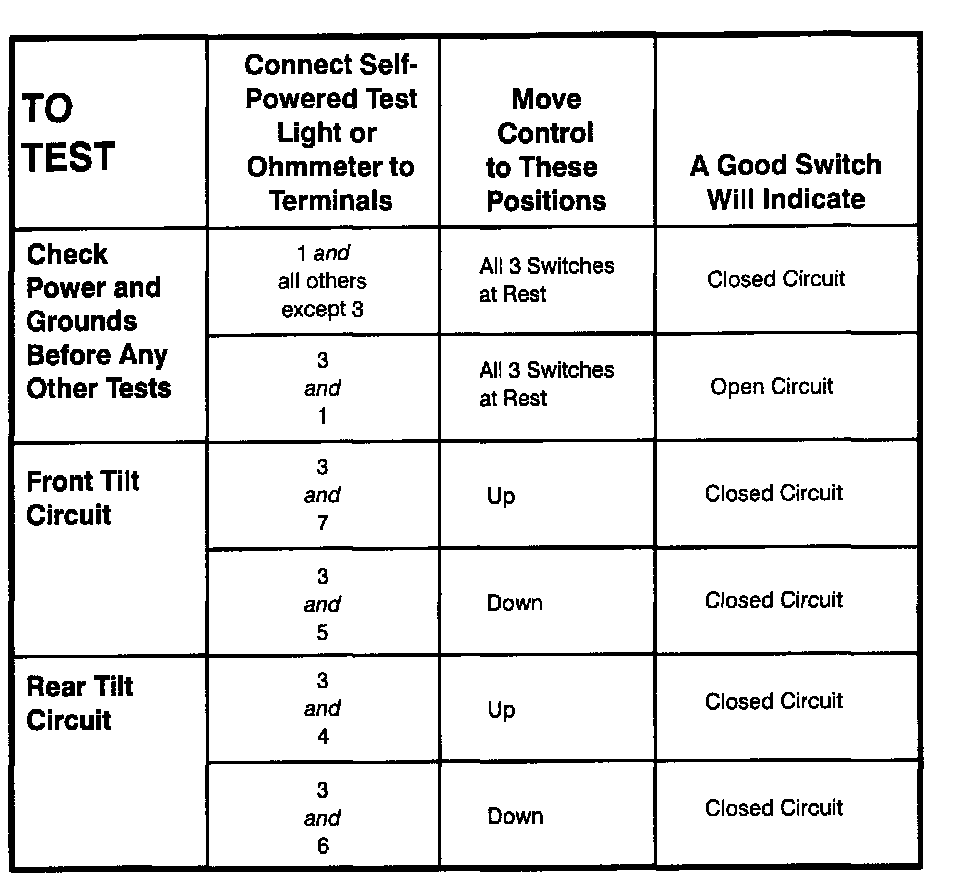

Component Testing Procedure:

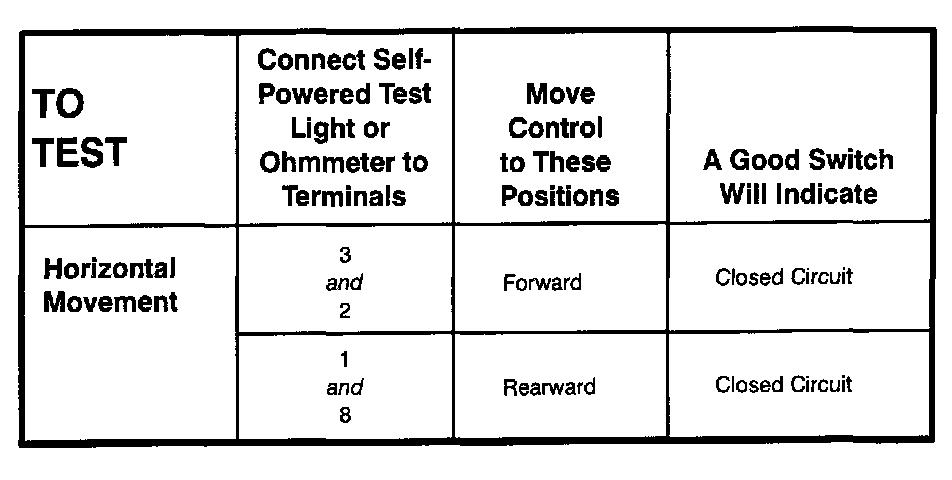

Component Testing Procedure:

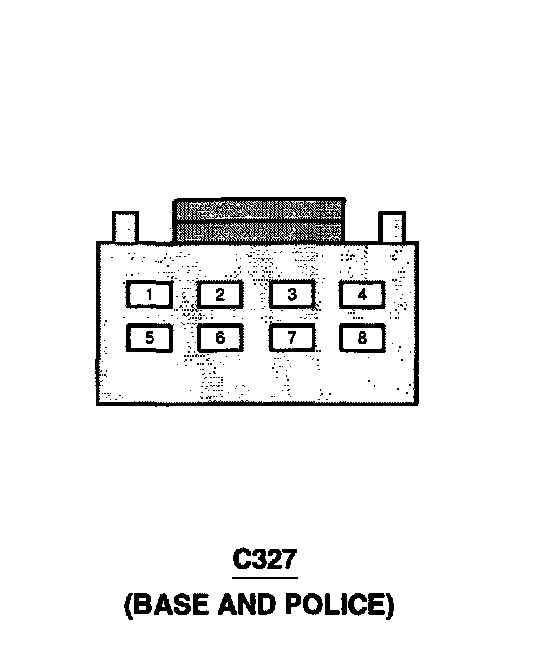

Terminals:

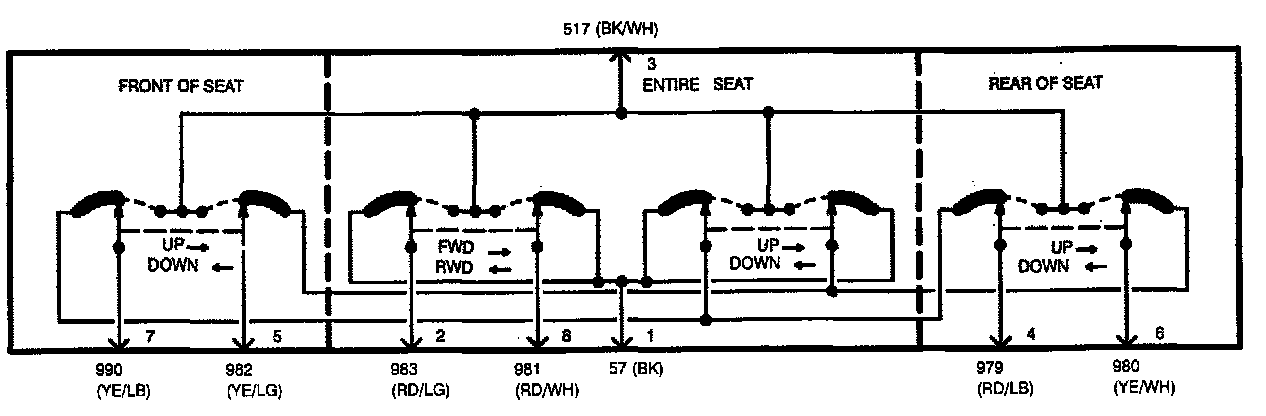

Schematic:
