Safety Belt Tongue Rotated on Belt

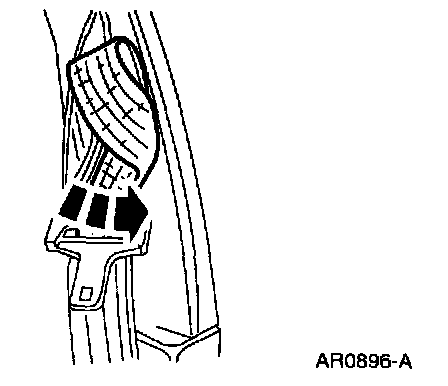

1. Grasp the belt tongue and pull the belt webbing down to form a loop through the upper (longer and narrower) slot in the tongue.
2. Rotate and fold the belt webbing over itself within the slot to remove the twist.
3. Pull the excess belt webbing back through the upper slot in the belt tongue.
4. Grasp the belt tongue and pull the belt webbing up to form a loop through the low slot in the tongue.







5. Rotate and fold the belt webbing over itself within the slot to remove the twist.








6. Pull the excess belt webbing through the slot.

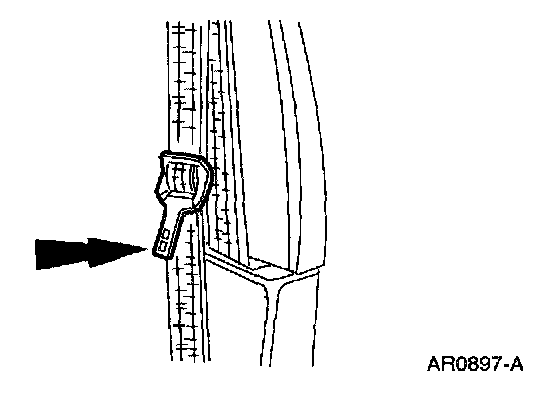

7. The safety belt tongue should face inward when completed.
