Front Seat Belt, Retractor and Tongue

REMOVAL

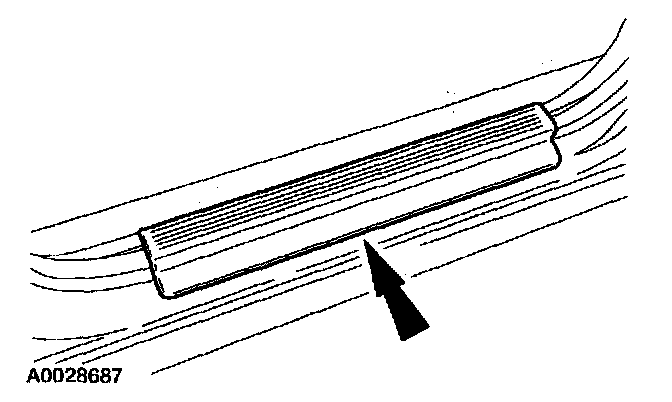

1. Remove the front door scuff plate.

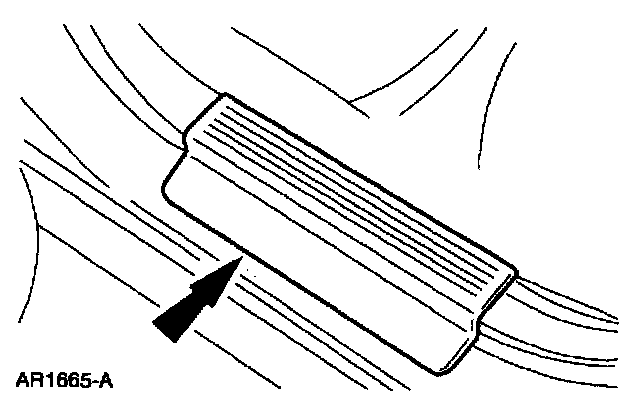

2. Remove the rear door scuff plate.

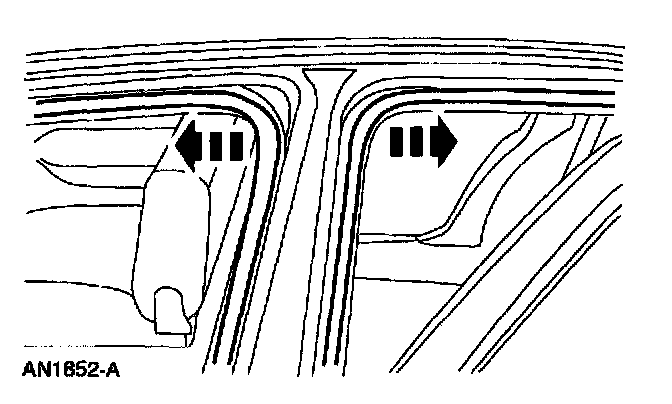

3. Pull back the weatherstrips.

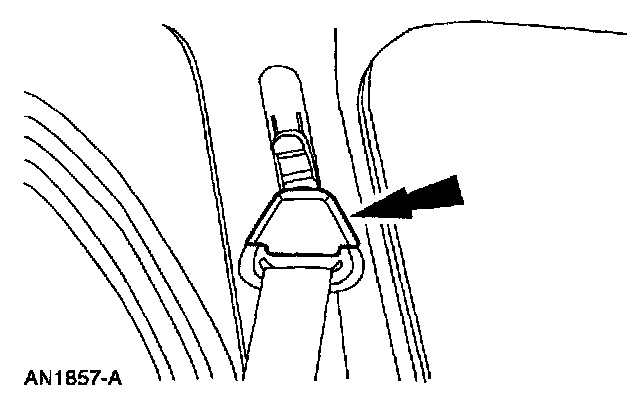

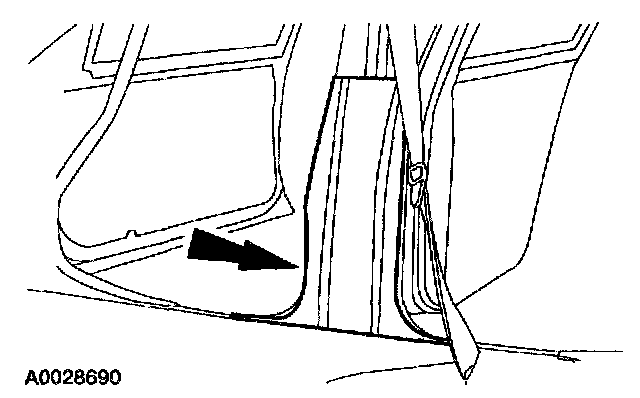

4. Remove the cover.

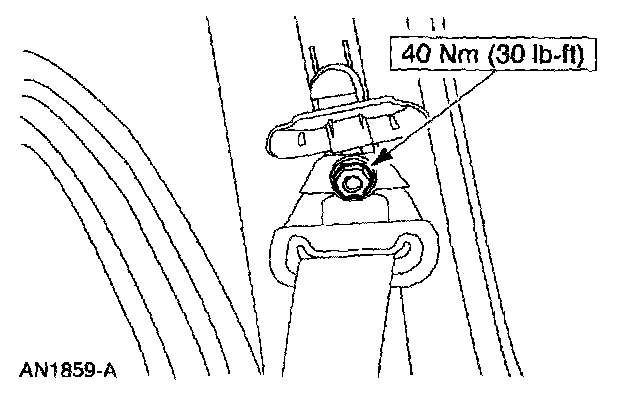

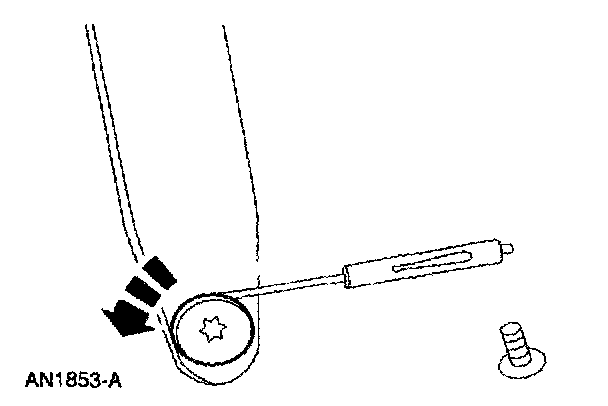

5. Remove the bolt.







6. Remove the center body pillar lower finish panel.







7. Remove the cover.

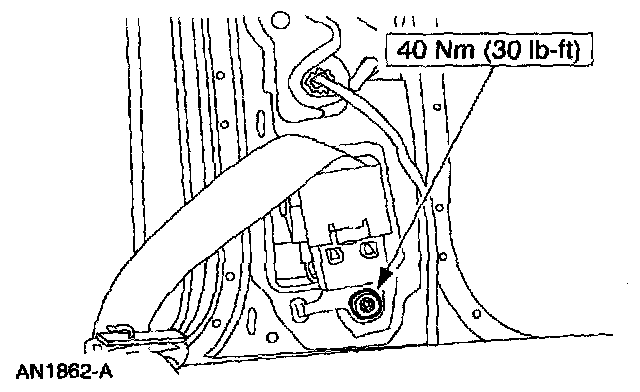

8. Remove the nut.

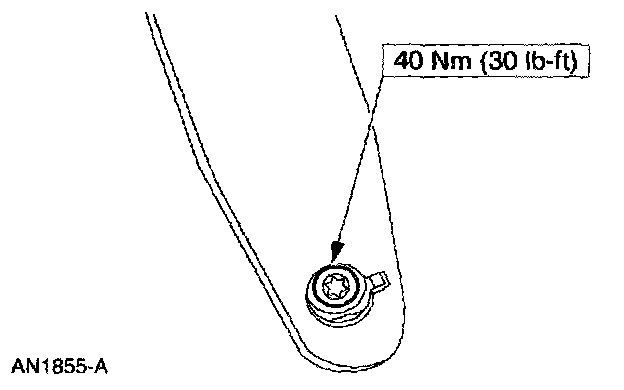

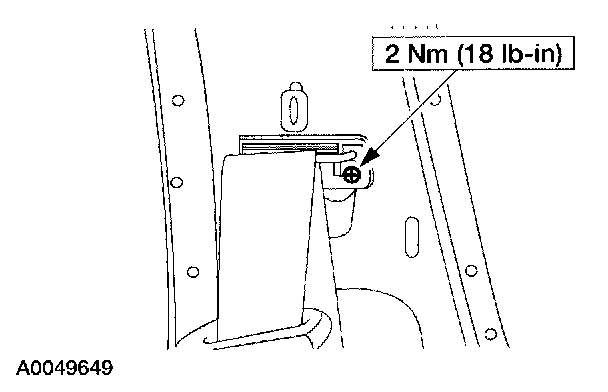

9. Remove the screw.







10. Remove the retractor.

INSTALLATION

















1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
