Buckle End - Front Seats

Driver and Front Passenger Seat

1. Remove the front seat.

Driver Side Only:

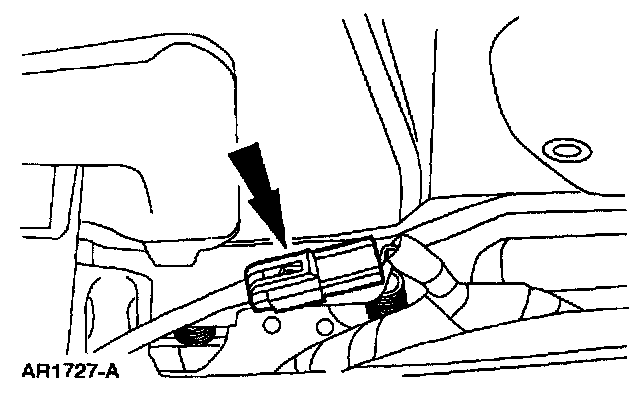

2. Disconnect the connector.

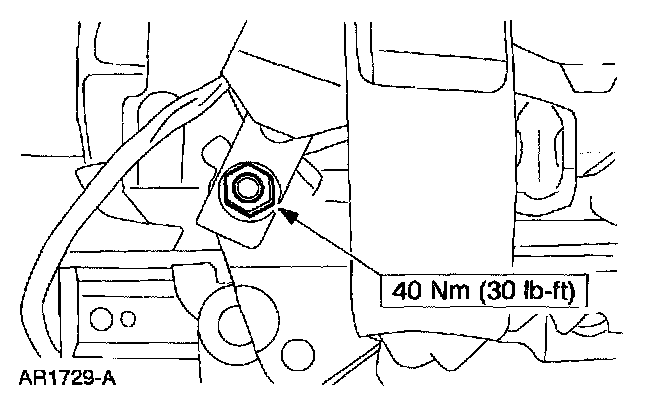

3. Remove the nut.
4. Remove the safety belt buckle through the seat cushion opening.

INSTALLATION







1. To install, reverse the removal procedure.
2. Make sure the center passenger restraint is correctly routed through the seat cushion opening and is not twisted. Check the restraint system for correct operation.
