J: LFC 16/DTC B1925 - Passenger Air Bag Ckt Shorted to Batt/Ign

Normal Operation
The air bag Electronic Crash Sensor (ECS) module checks for passenger air bag circuit shorts to battery or ignition by monitoring the voltage of circuits 607 (LB/OG) and 616 (PK/BK) at pins 14 and 28. If the ECS detects a short to battery or ignition on either of these pins, it will store a Diagnostic Trouble Code (DTC) B1925 in memory and flash a Lamp Fault Code (LFC) 16 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A passenger air bag circuit short to battery or ignition can be caused by:
- a short to battery or ignition on circuit 607 (LB/OG).
- a short to battery or ignition on circuit 616 (PK/BK).
- a short to battery or ignition on the passenger air bag module.

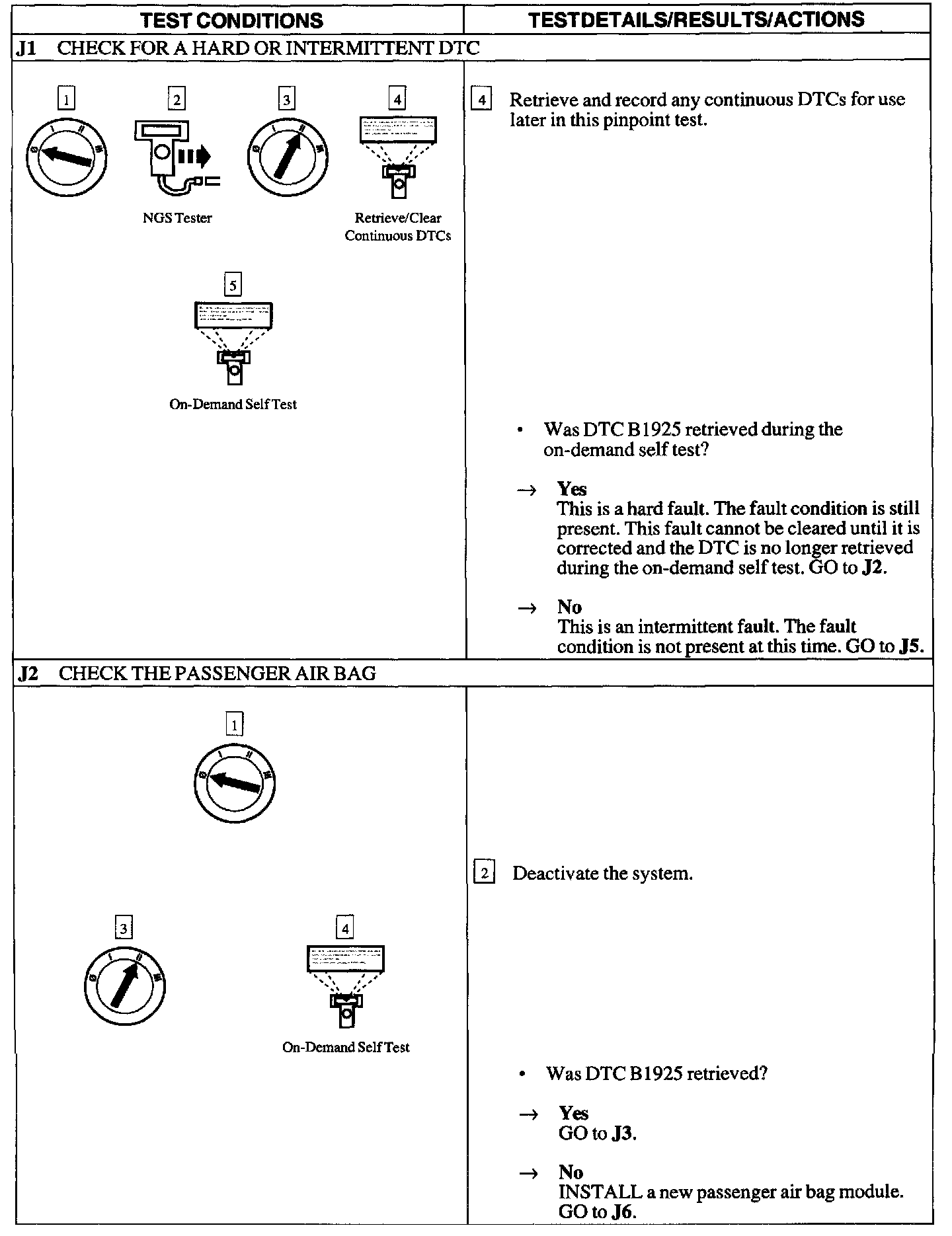

J1 - J2:

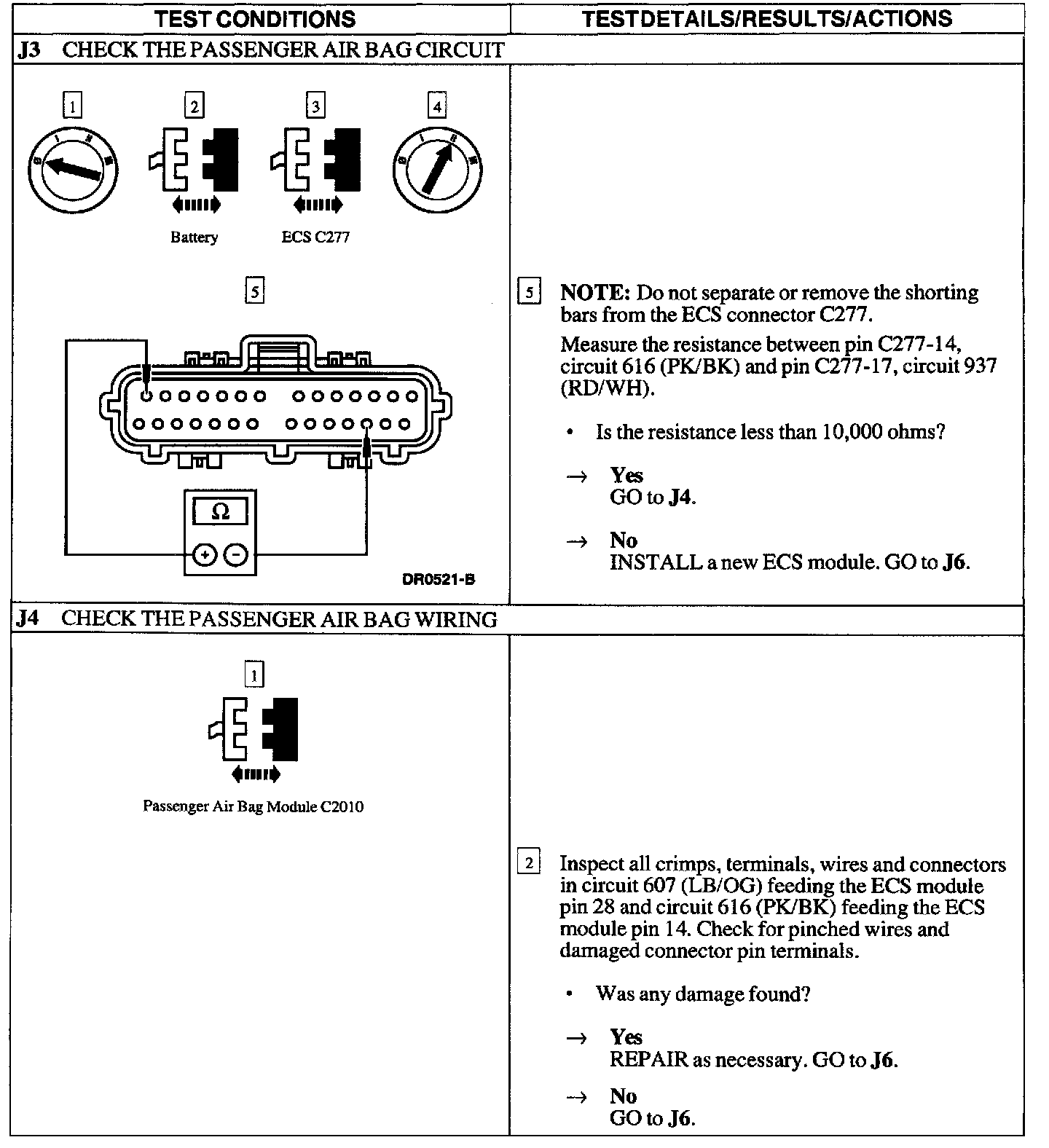

J3 - J4:

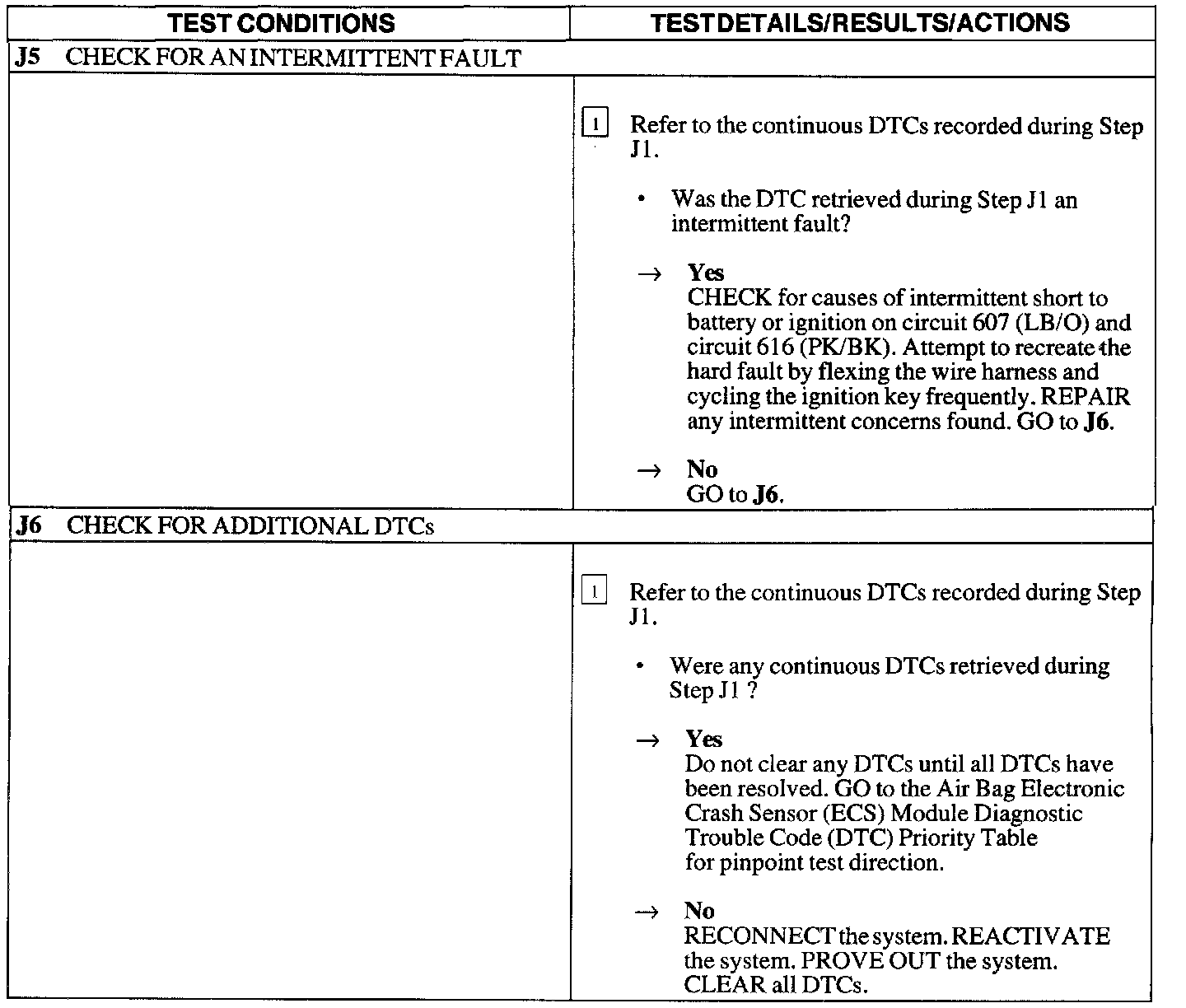

J5 - J6:
