Daytime Running Lamp Control Unit: Service and Repair

REMOVAL
1. Remove the battery ground cable.

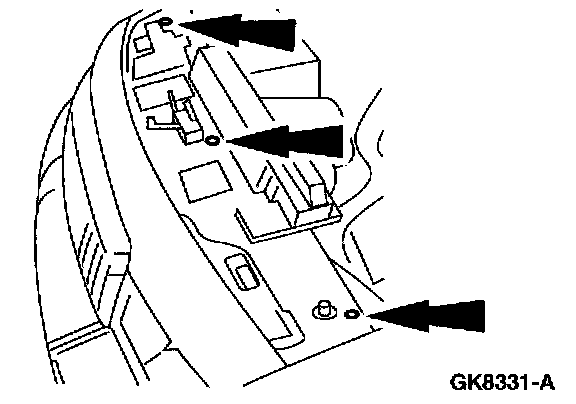

2. Remove the sight shield.
^ Twist the clips.

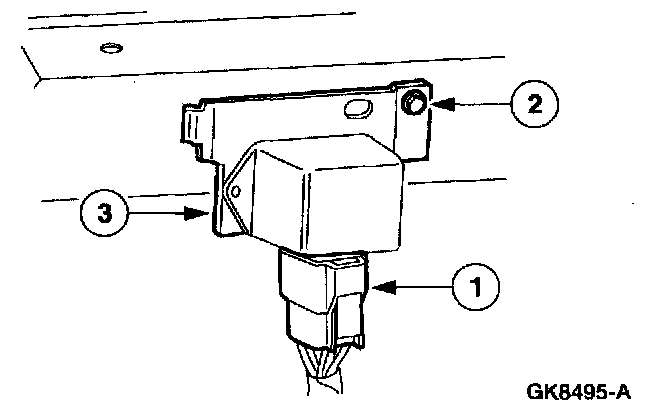

3. Remove the Daytime Running Lamps (DRL) module
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the DRL module.

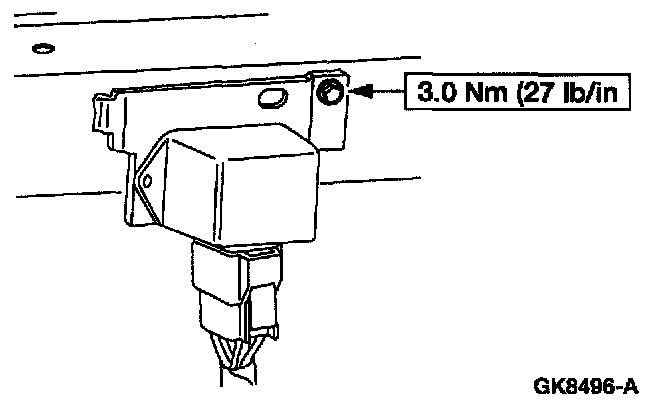

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to learn the strategy.
