Air Suspension Module

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

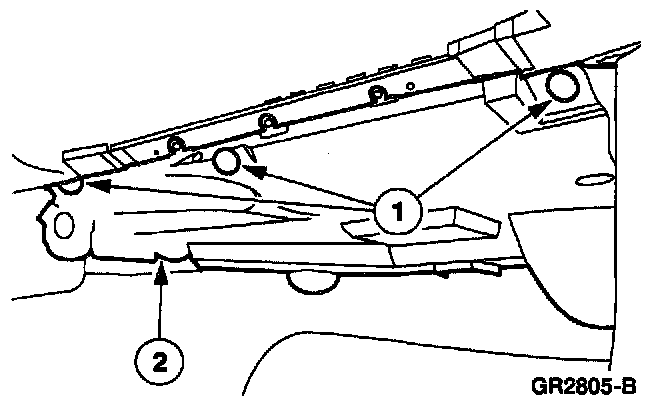

2. Lower the instrument panel lower insulator.
1 Remove the pin-type retainers.
2 Lower the instrument panel lower insulator.

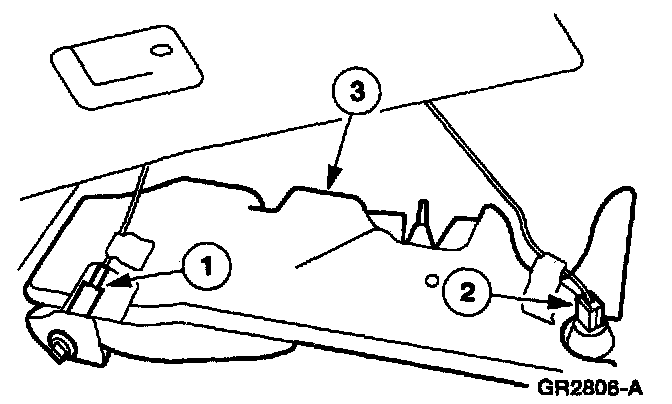

3. Remove the instrument panel lower insulator.
1 Disconnect the power point electrical connector.
2 Remove the footwell lamp.
3 Remove the instrument panel lower insulator.

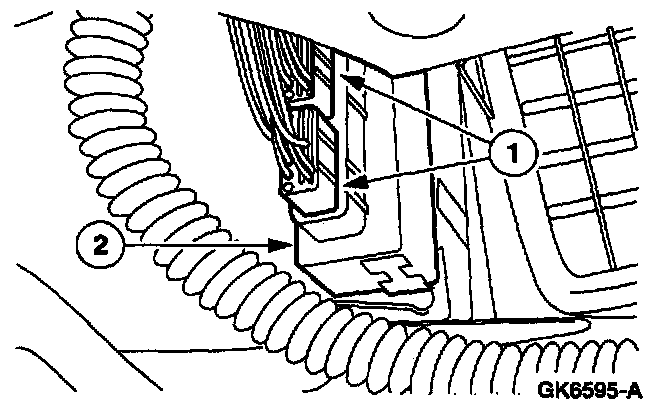

4. Remove the air suspension module.
1 Disconnect the electrical connectors.
2 Remove the air suspension module.
^ Release the spring clips to remove the module from the bracket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
