Component Tests and General Diagnostics

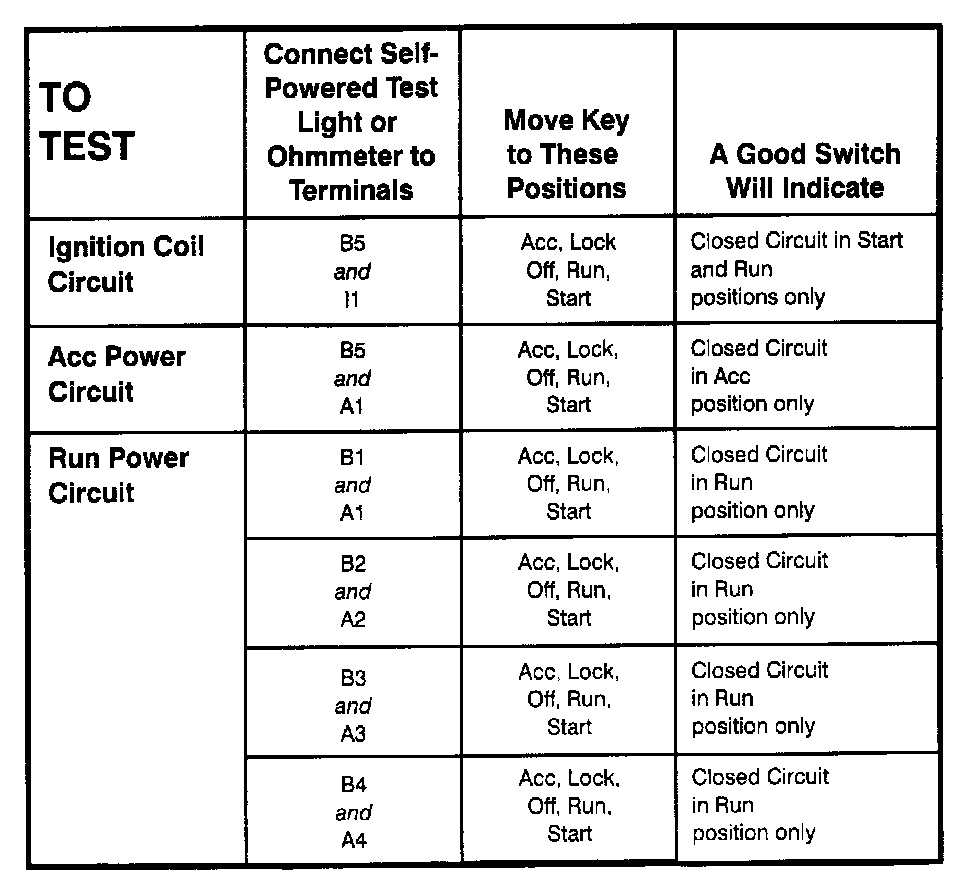

Component Testing Procedure:

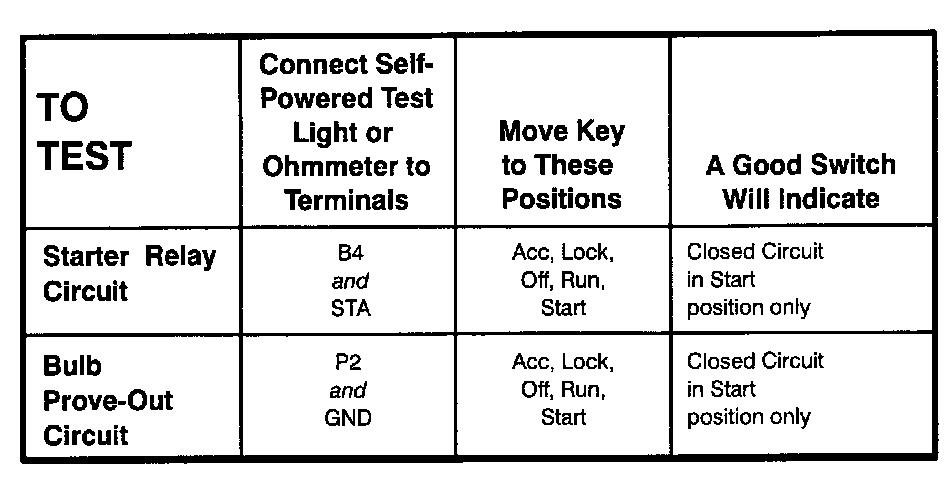

Component Testing Procedure:

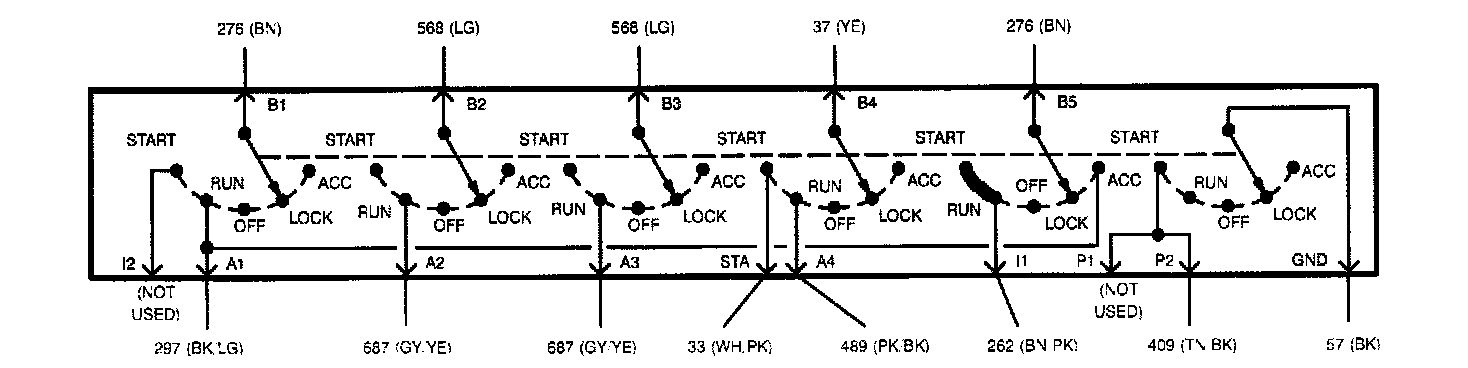

Terminals:







Schematic:
