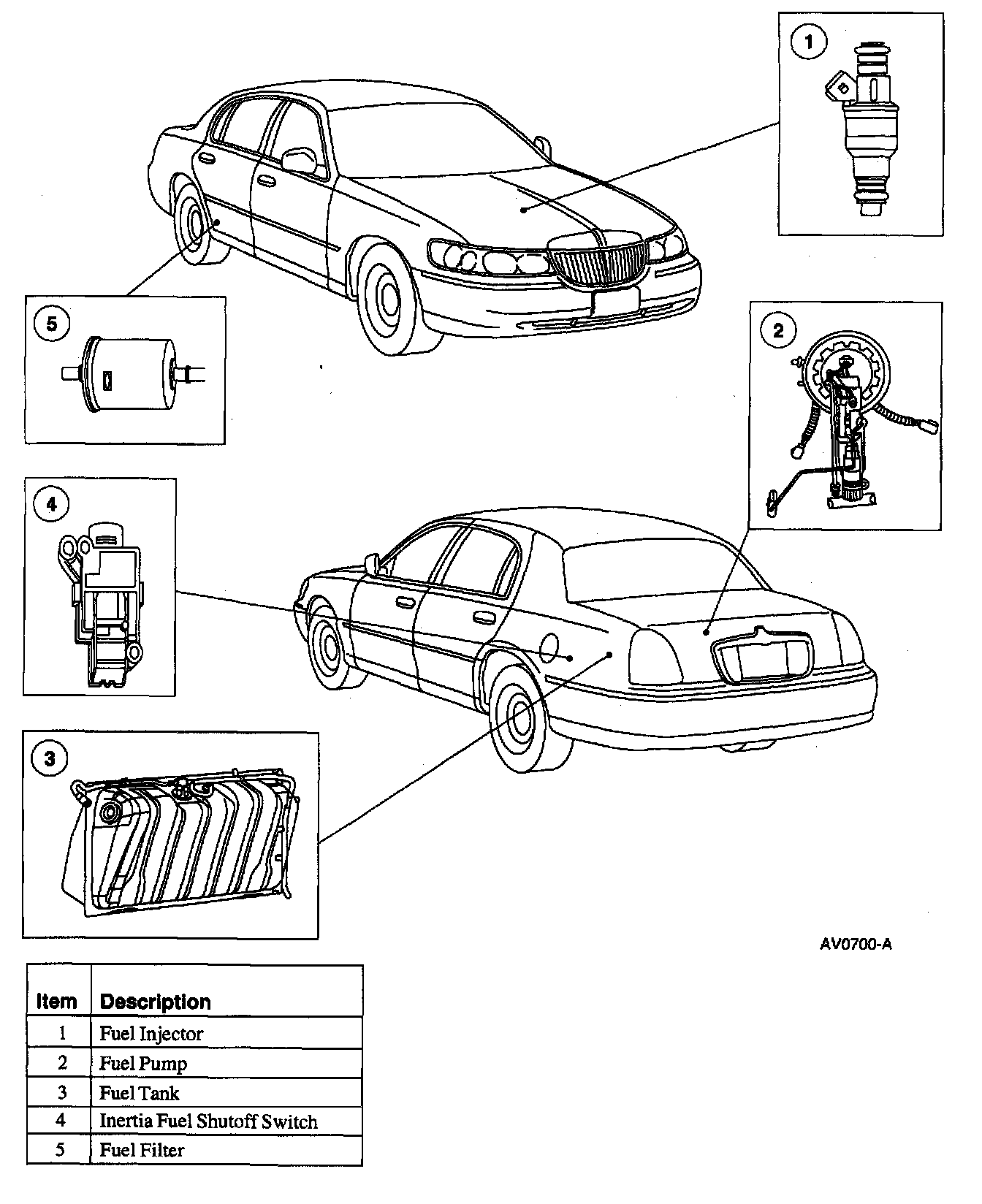

Fuel System

The vehicle:
^ is equipped with a multiport fuel injection system.
^ uses separately controlled fuel injectors mounted to the intake manifold for each cylinder.
^ fuel injectors are supplied with pressurized fuel from the fuel pump through the fuel injection supply manifold.
^ has a fuel injection supply manifold which is equipped with a fuel pressure regulator.
^ has a fuel pressure regulator controlling the fuel pressure supplied to the fuel injectors.
^ has excess fuel supplied to the fuel injectors returned to the fuel tank.
