PCV Valve Hose: Service and Repair

REMOVAL

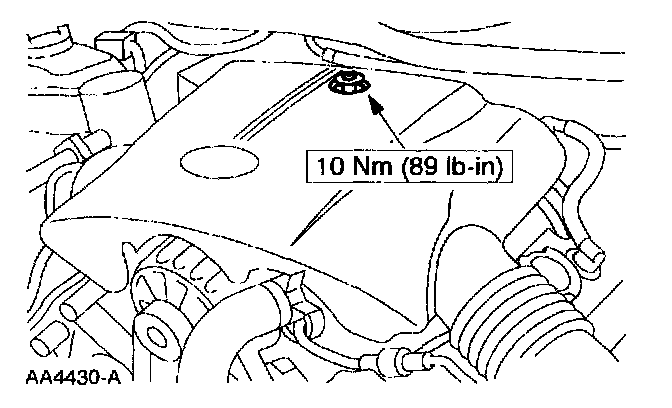

1. Remove the engine appearance cover.







2. Remove the idle air control tube from the air cleaner outlet tube.

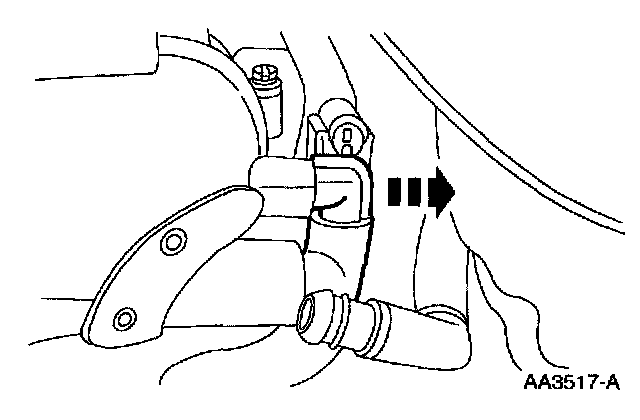

3. Remove the crankcase ventilation tube at the air cleaner outlet tube.

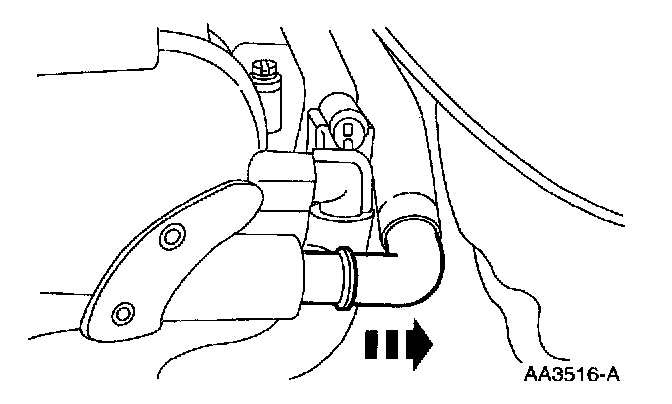

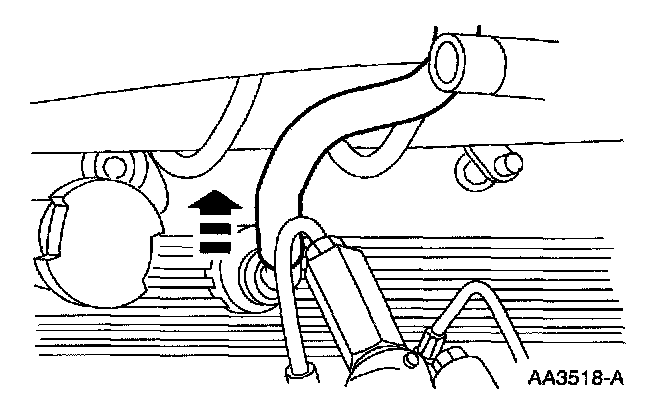

4. Remove the crankcase ventilation tube at the valve cover.

INSTALLATION







1. To install, reverse the removal procedure
