Canister Purge Control Valve: Service and Repair

REMOVAL

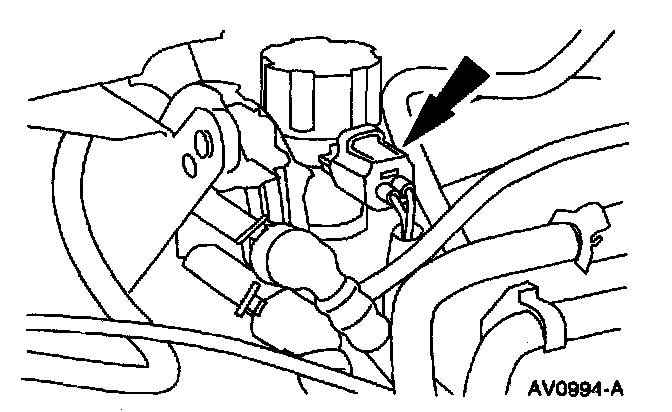

1. Disconnect the connector.

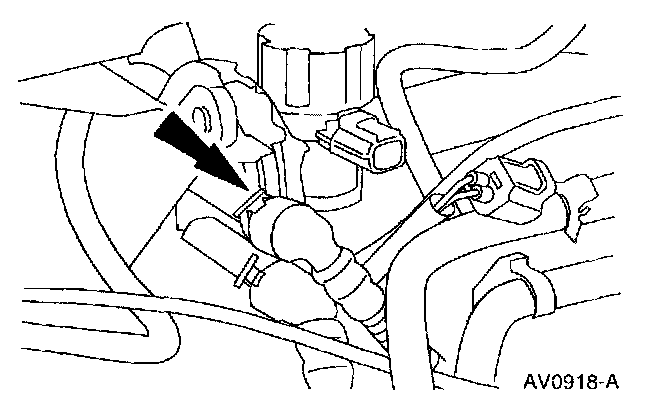

2. Disconnect the evaporative emission return tube.

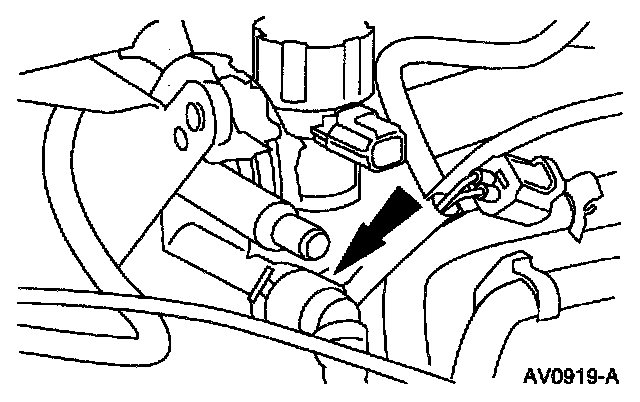

3. Disconnect the evaporative emission test port.

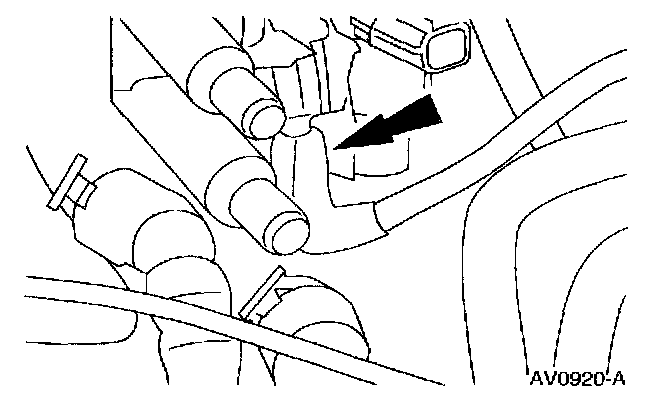

4. Remove the vacuum hose.







5. Remove the two nuts and the evaporative emission canister purge valve.

INSTALLATION







1. To install, reverse the removal procedure.
2. Leak test the system.
3. Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle.
