Catalytic Converter: Locations

Exhaust System:

Exhaust System:

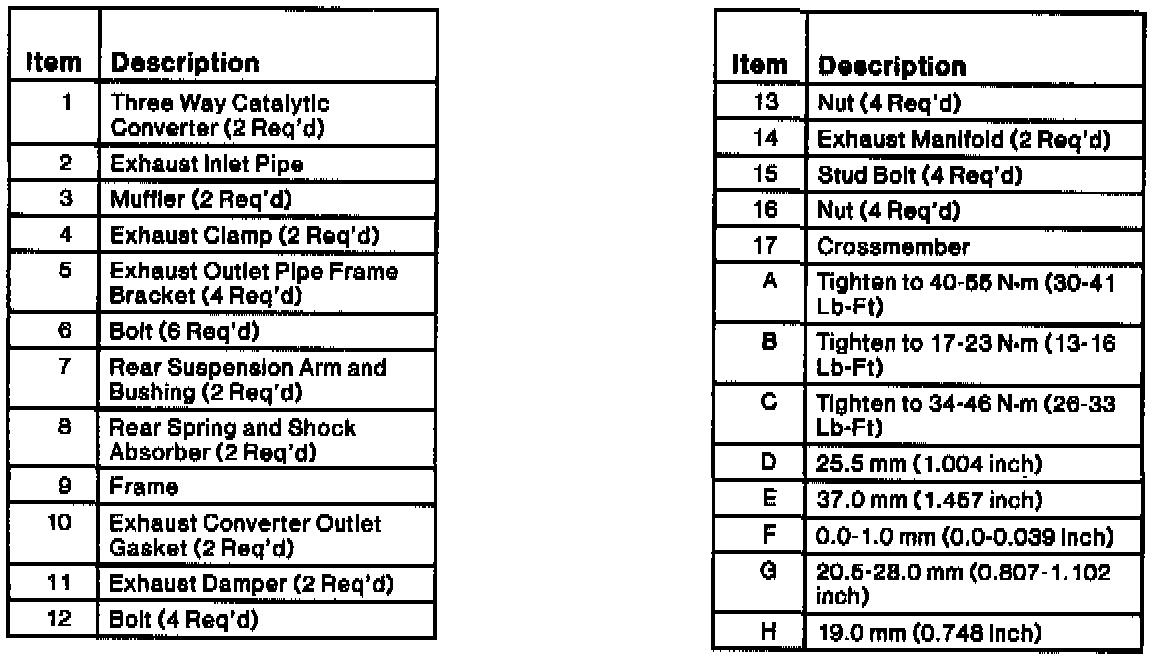

Dual Exhaust Catalyst Configuration

Exhaust System:

Exhaust System:

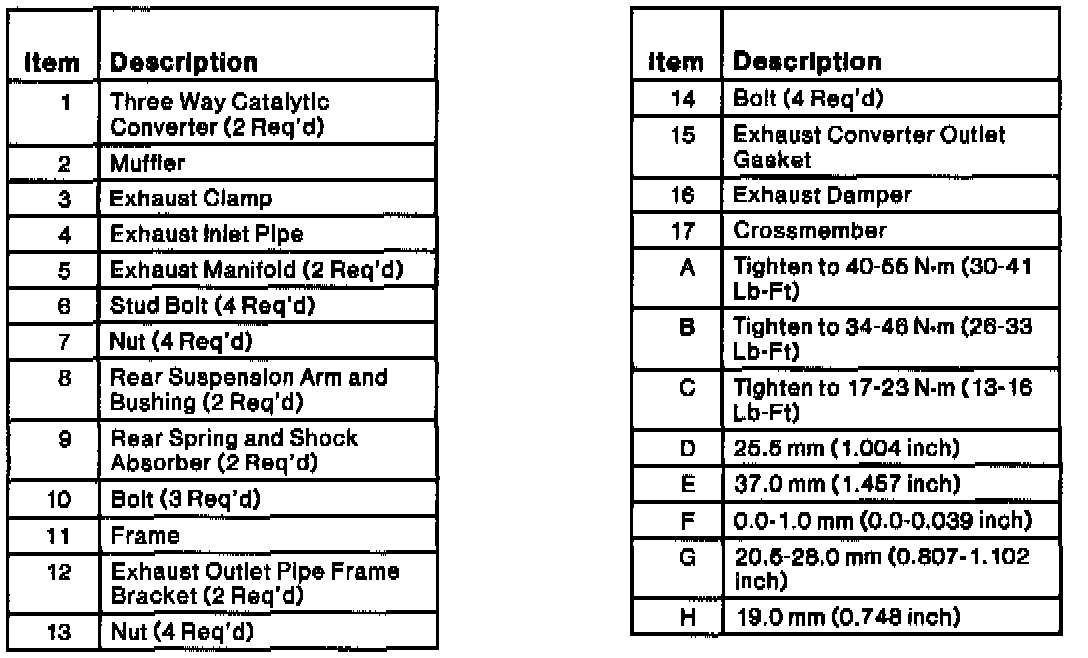

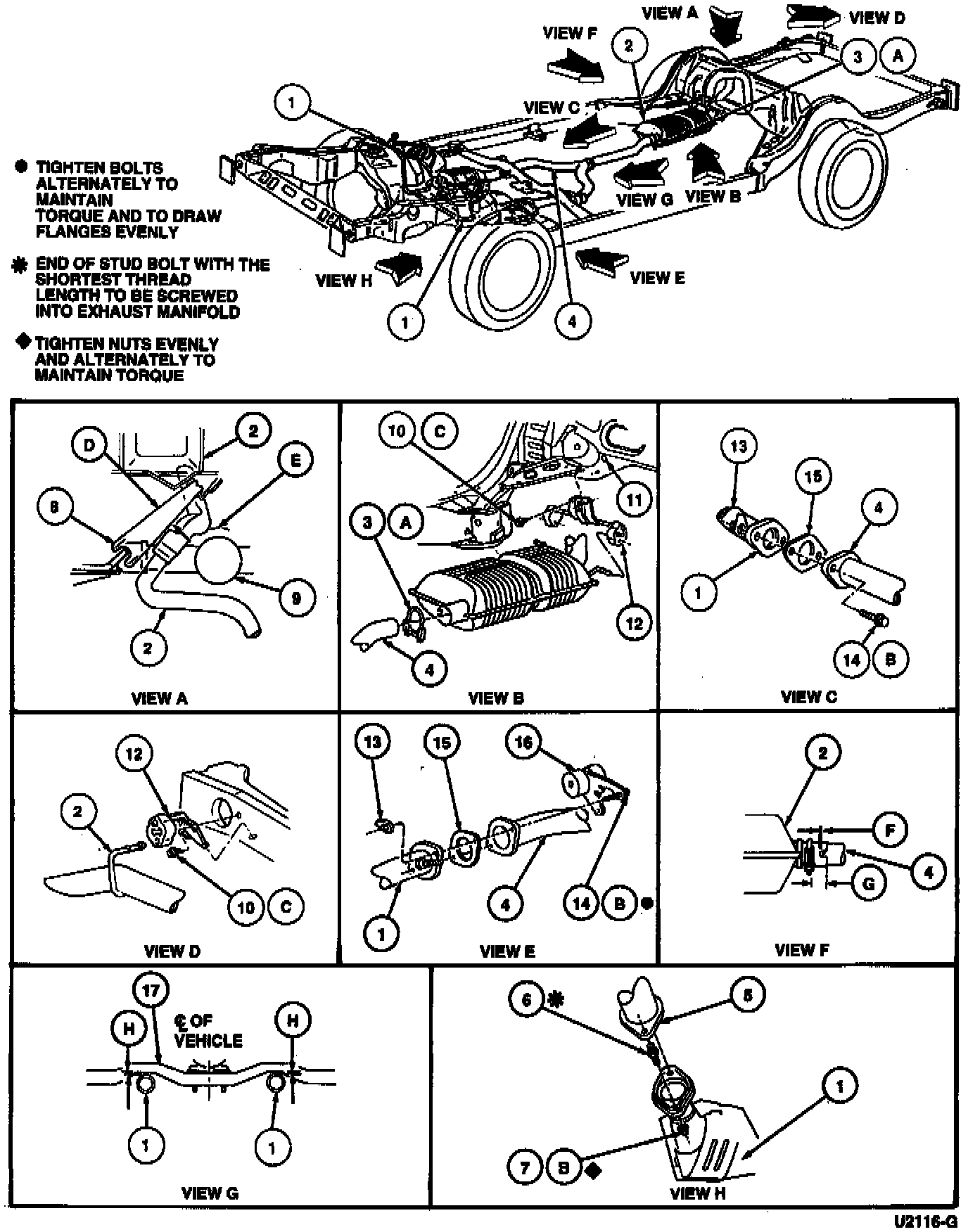

Single Exhaust Catalyst Configuration
