H: Pass. Antitheft Sys. (PATS) Module No Response To NGS Tester
H: Pass. Antitheft Sys. (PATS) Module No Response To NGS Tester

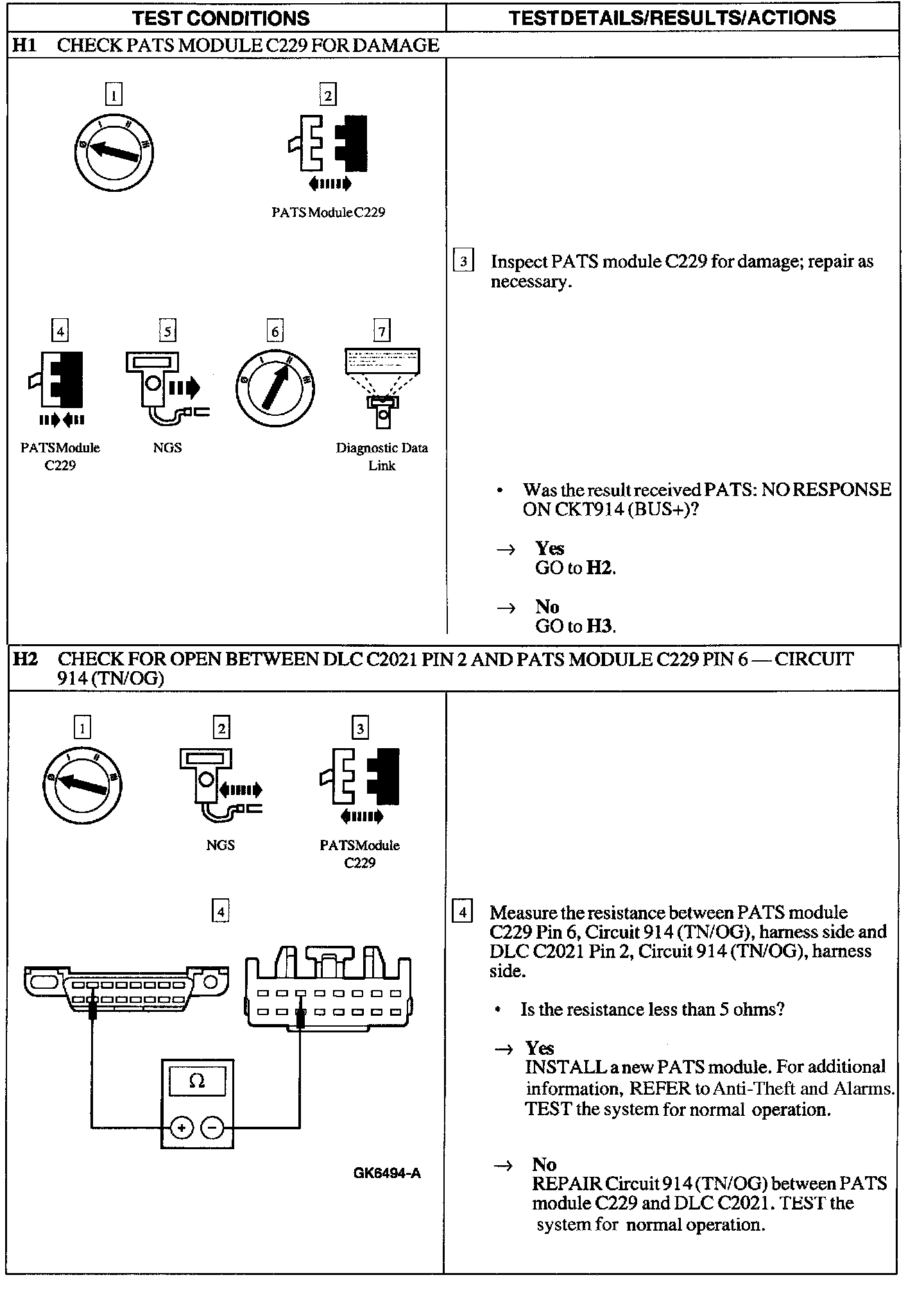

H1 - H2:

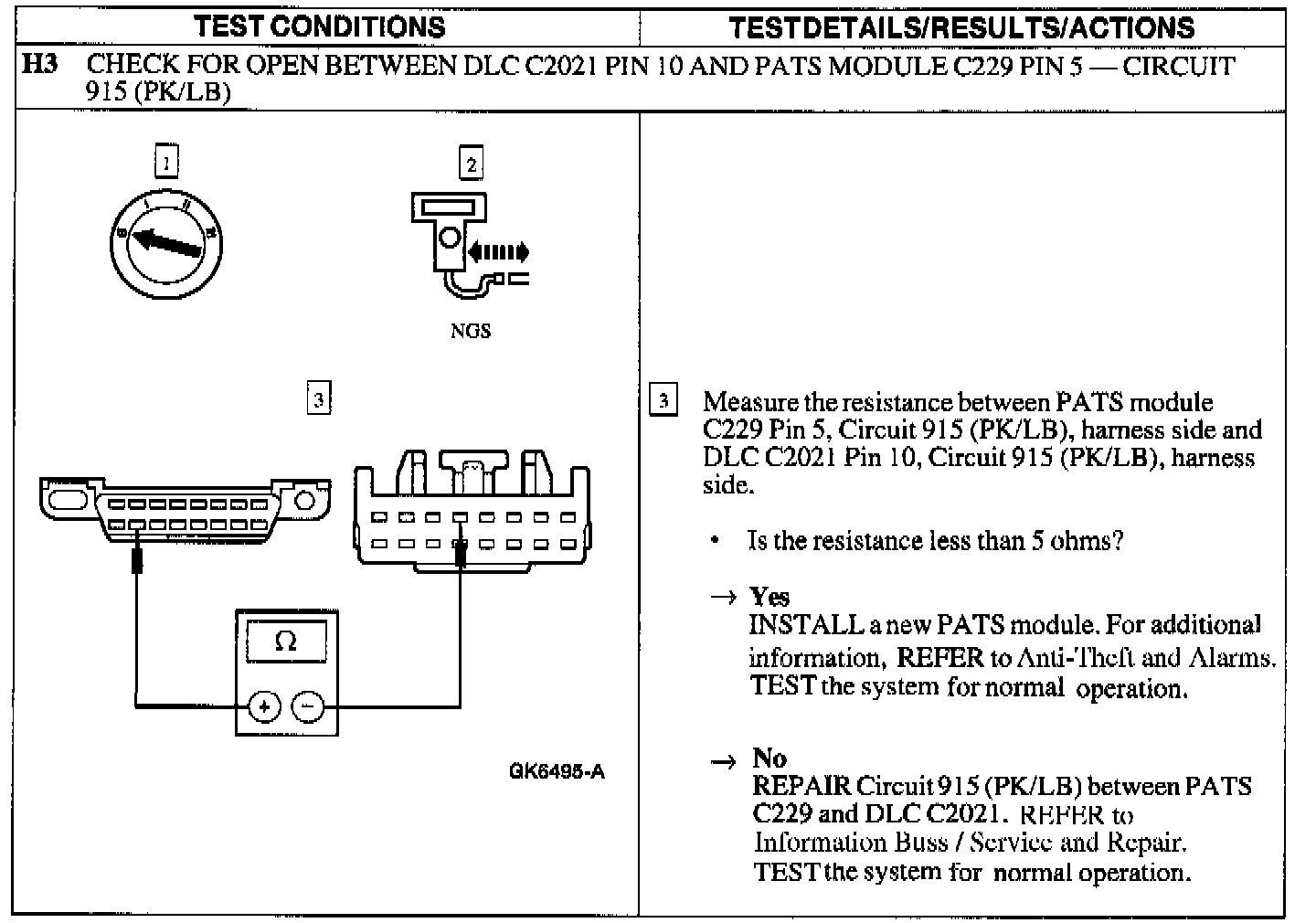

H3:
