Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Module Communication Network >> Pinpoint Tests >> E: The EATC Module Does Not Respond to the NGS Tester

E: The EATC Module Does Not Respond to the NGS Tester

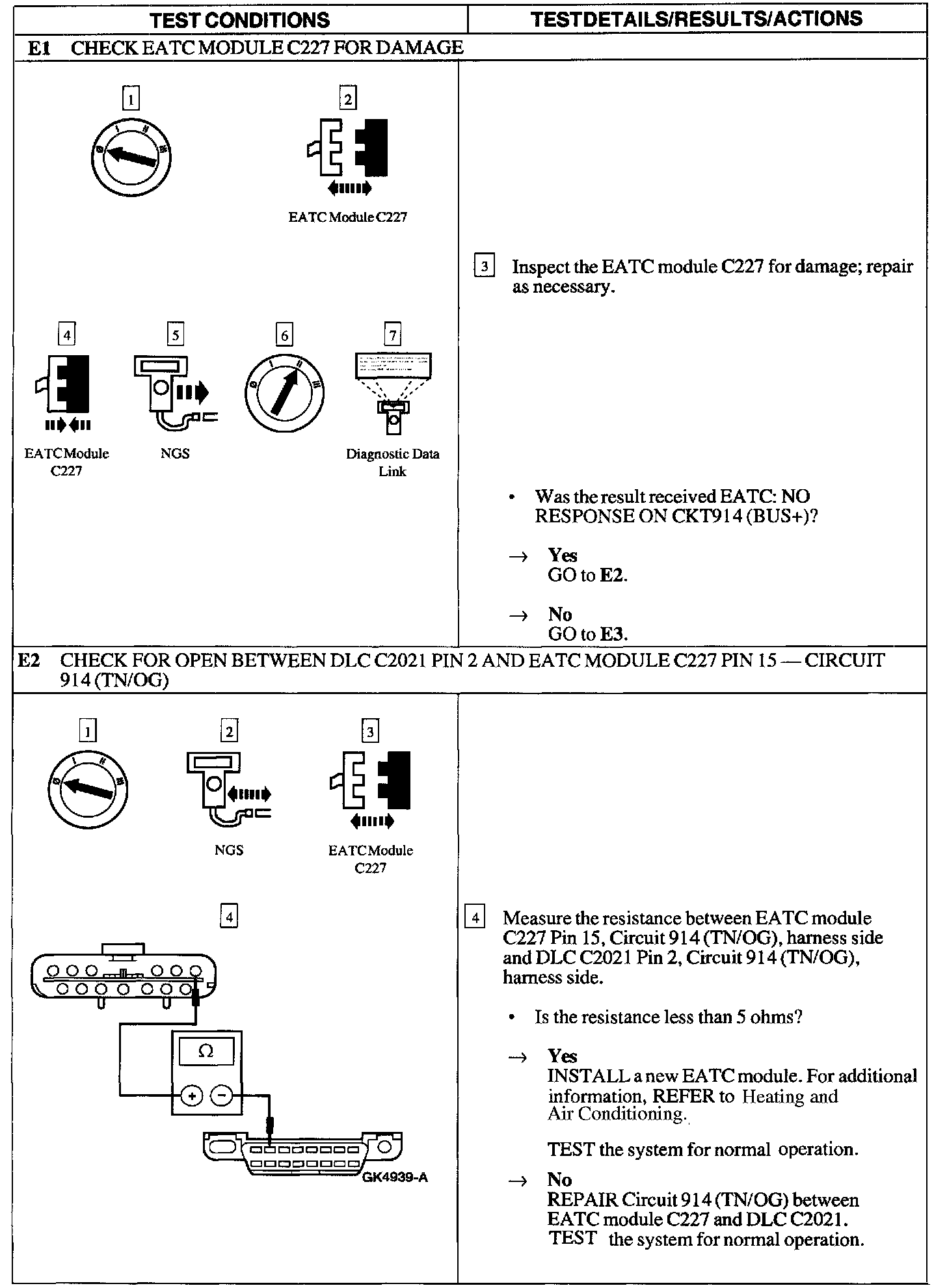

E1 - E2:

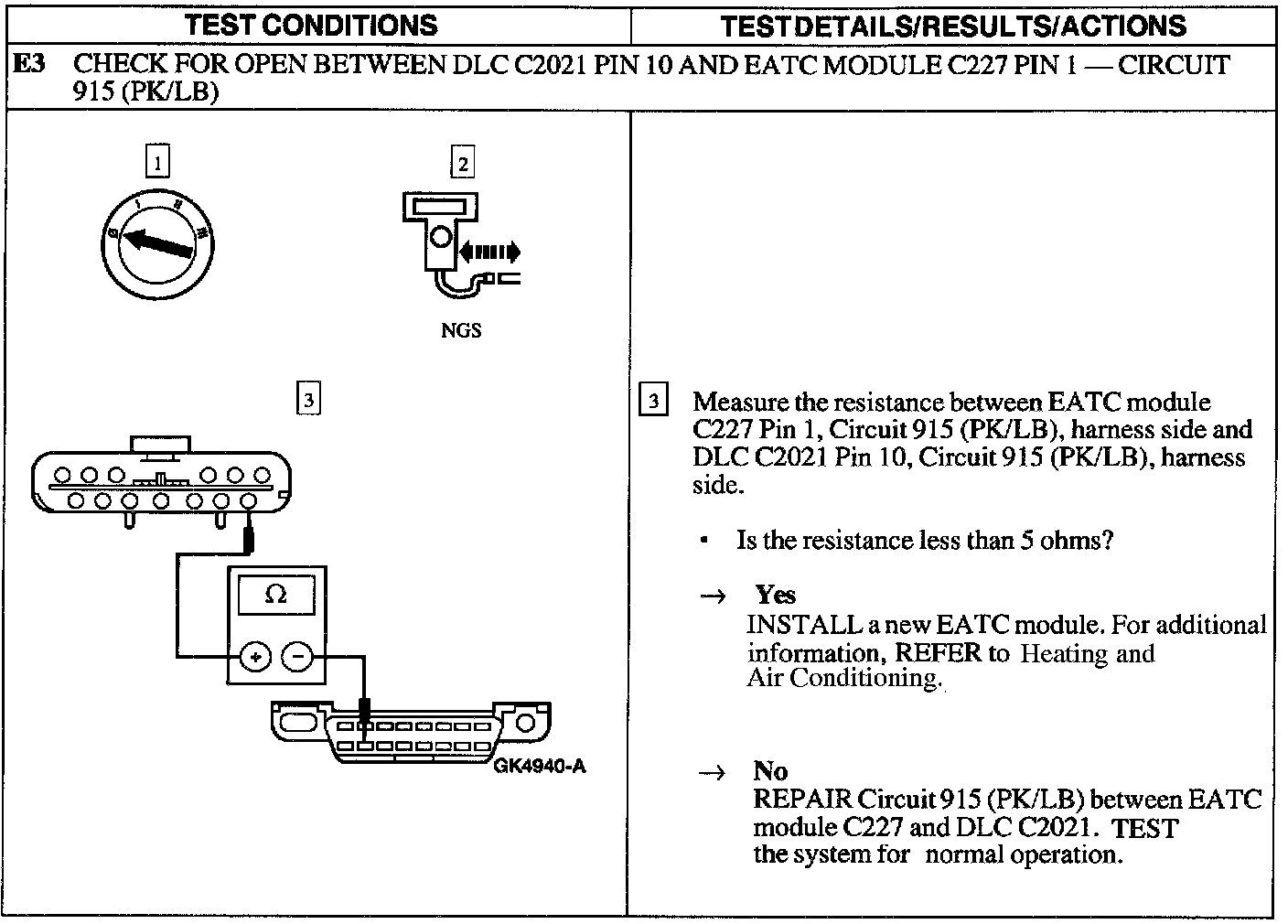

E3:
