Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Module Communication Network >> Pinpoint Tests >> D: Natural Gas Veh. Module (NGVM) Doesn't Respond To NGS Tester

D: Natural Gas Veh. Module (NGVM) Doesn't Respond To NGS Tester

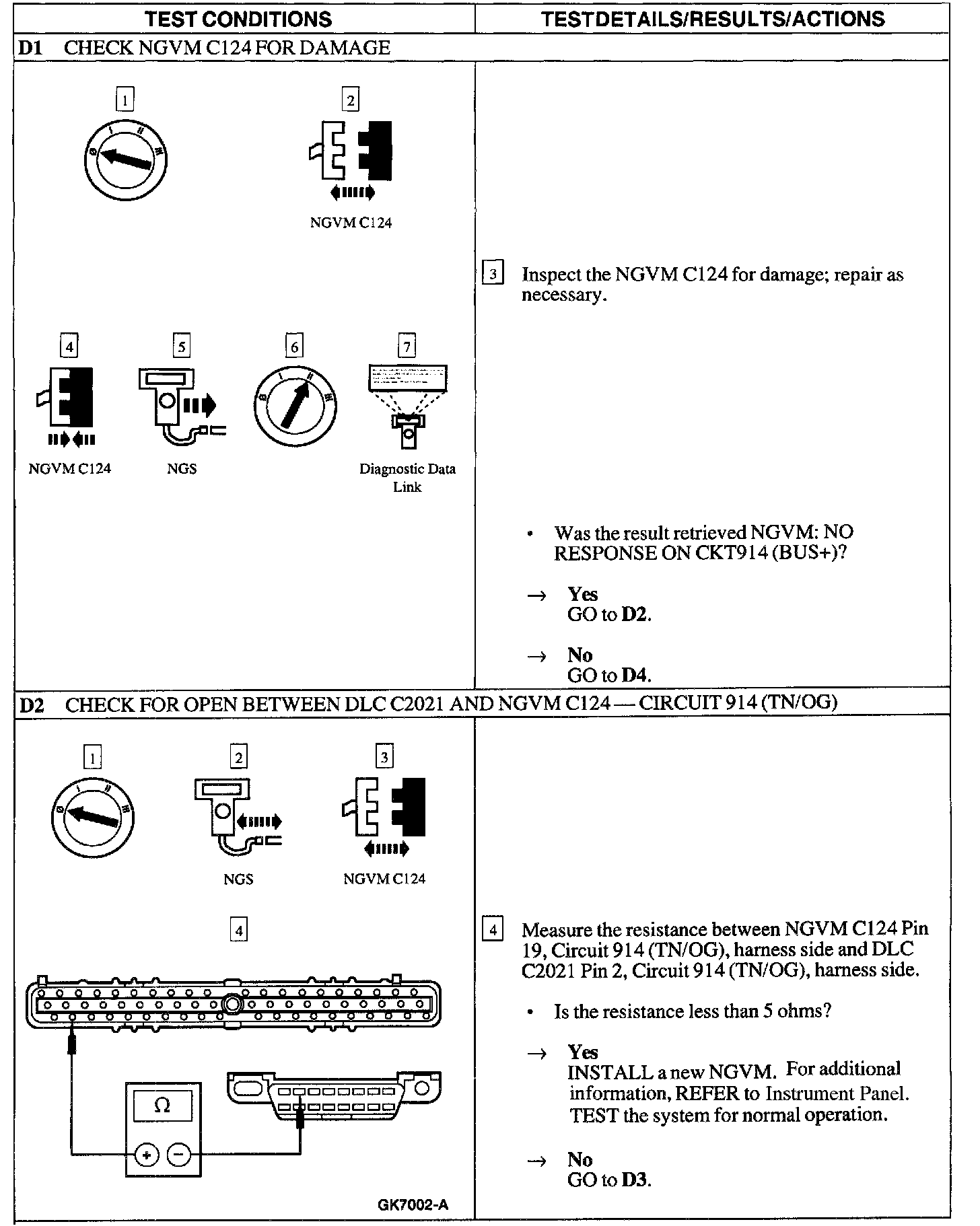

D1 - D2:

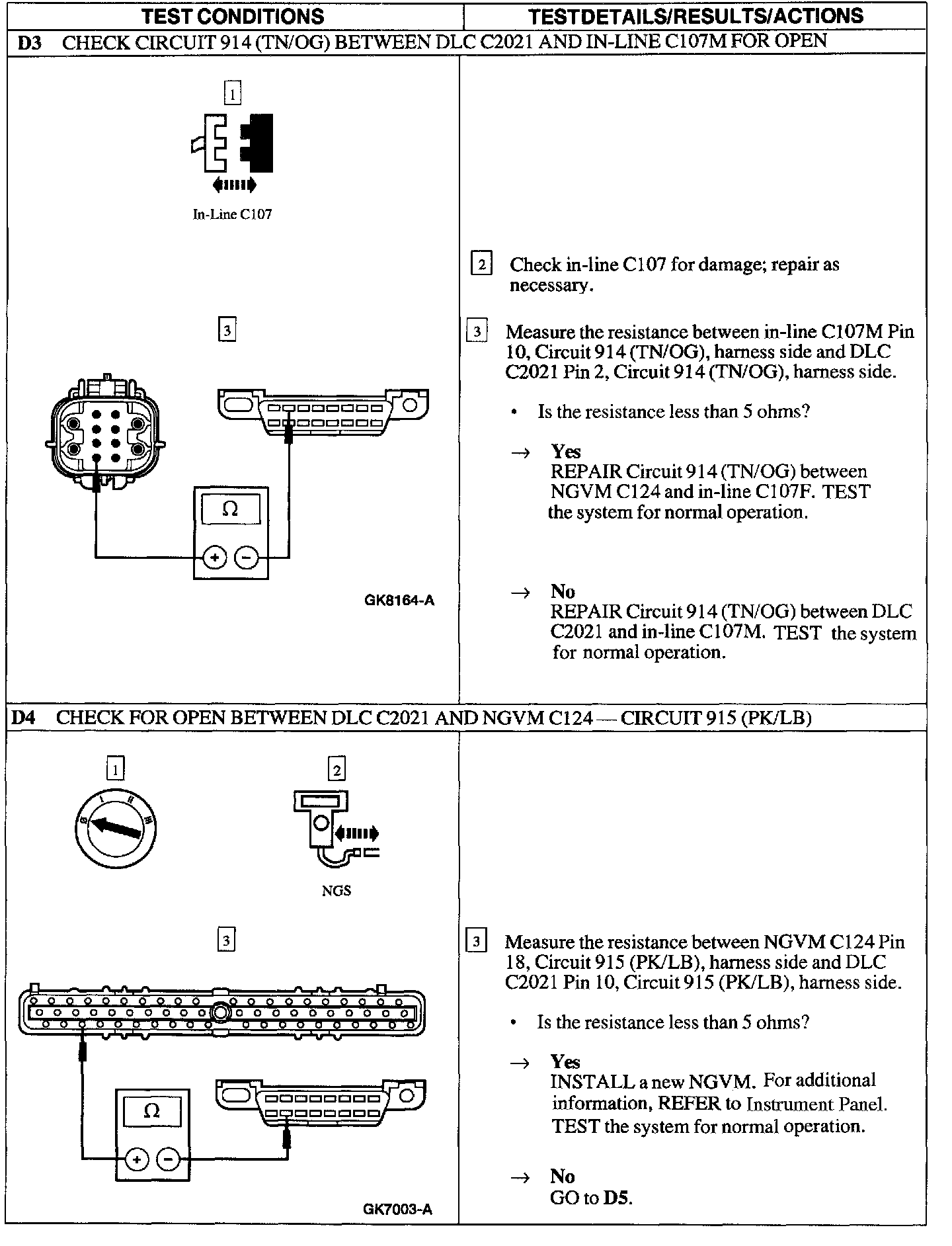

D3 - D4:

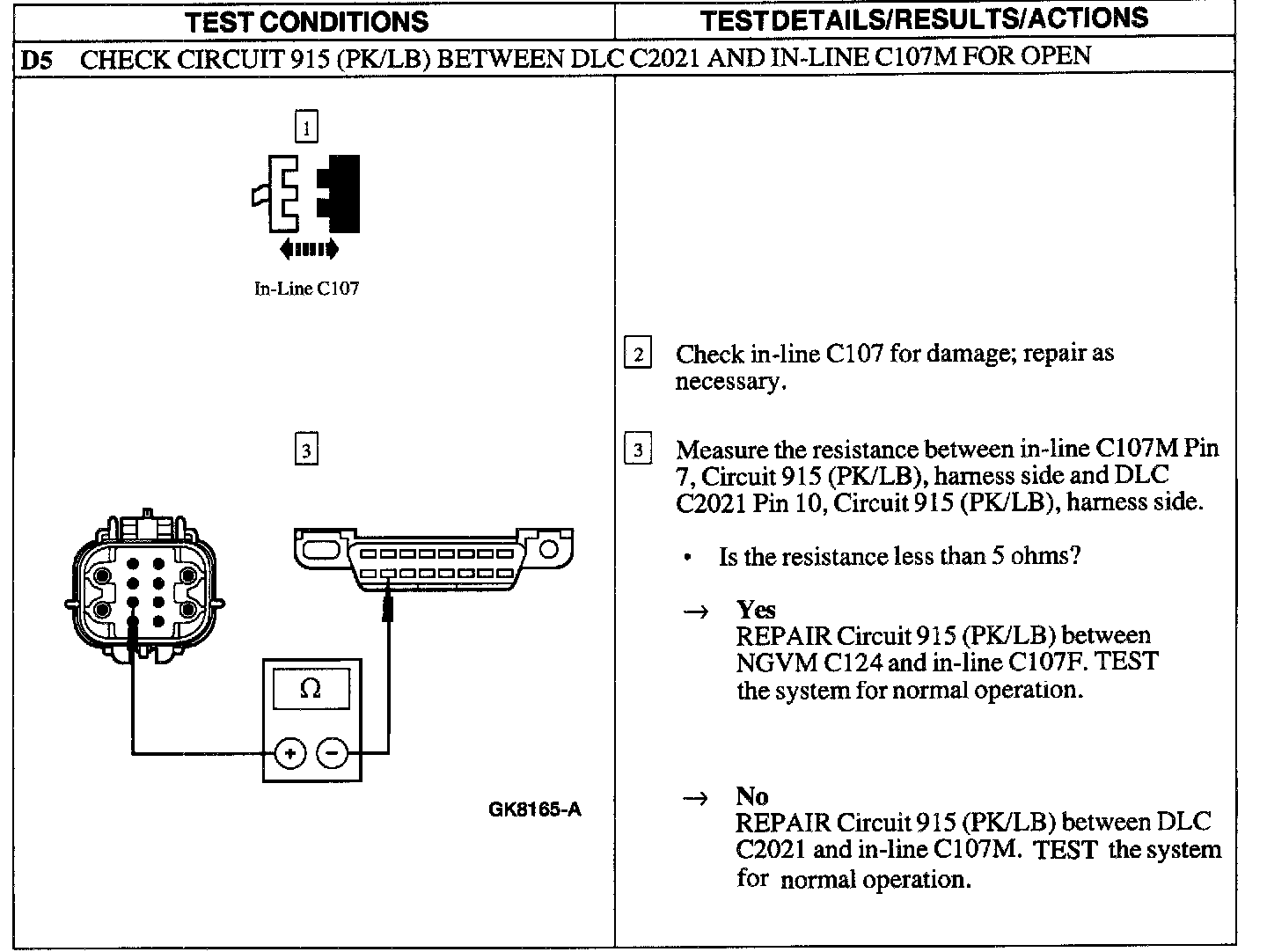

D5:
