Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Module Communication Network >> Pinpoint Tests >> B: No Response to NGS Tester - Lighting Control Module (LCM)

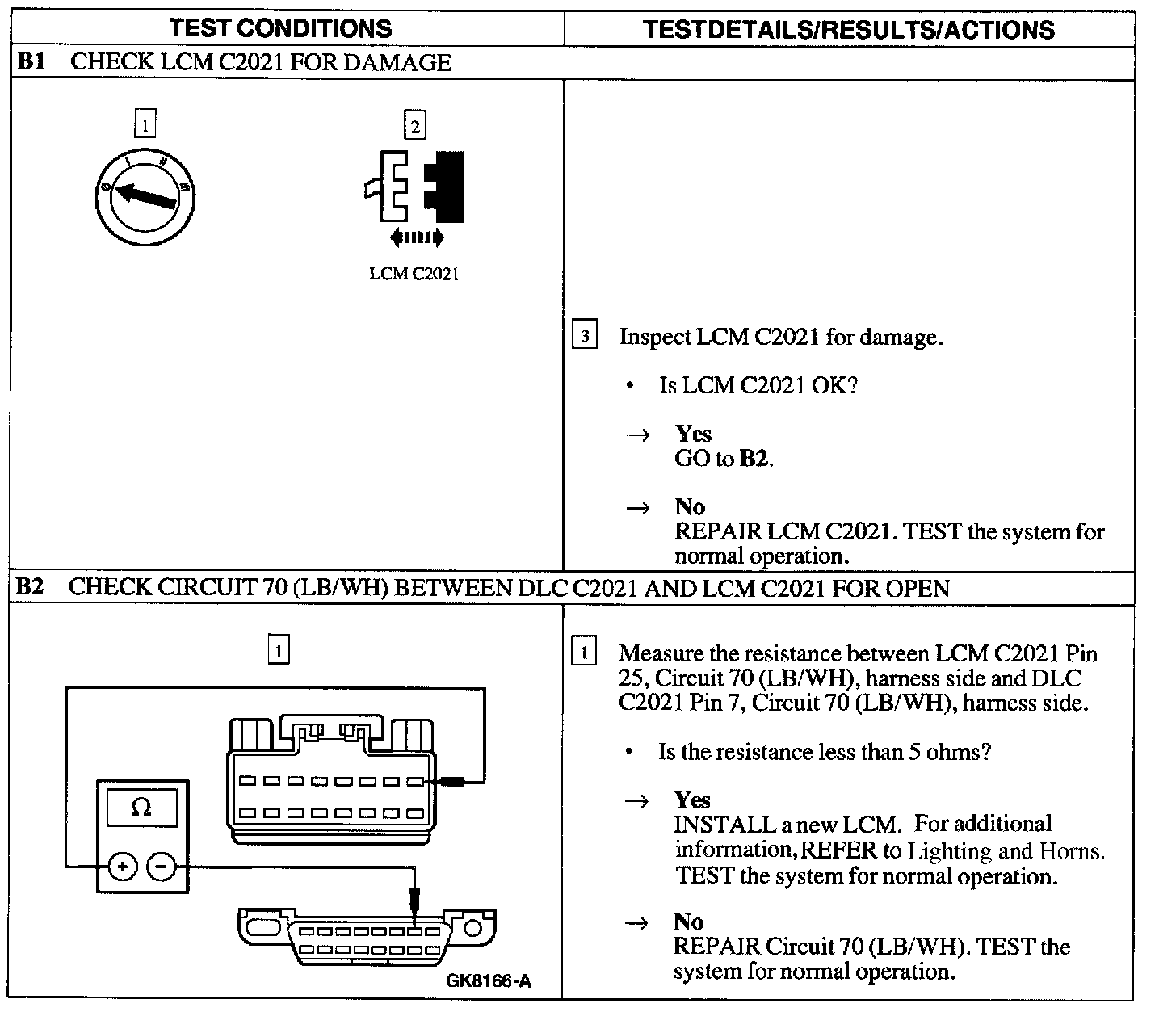

B: No Response to NGS Tester - Lighting Control Module (LCM)

B1 - B2:
