Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Module Communication Network >> Pinpoint Tests >> A: Antilock Brake Control Module Doesn't Respond to NGS Tester

A: Antilock Brake Control Module Doesn't Respond to NGS Tester

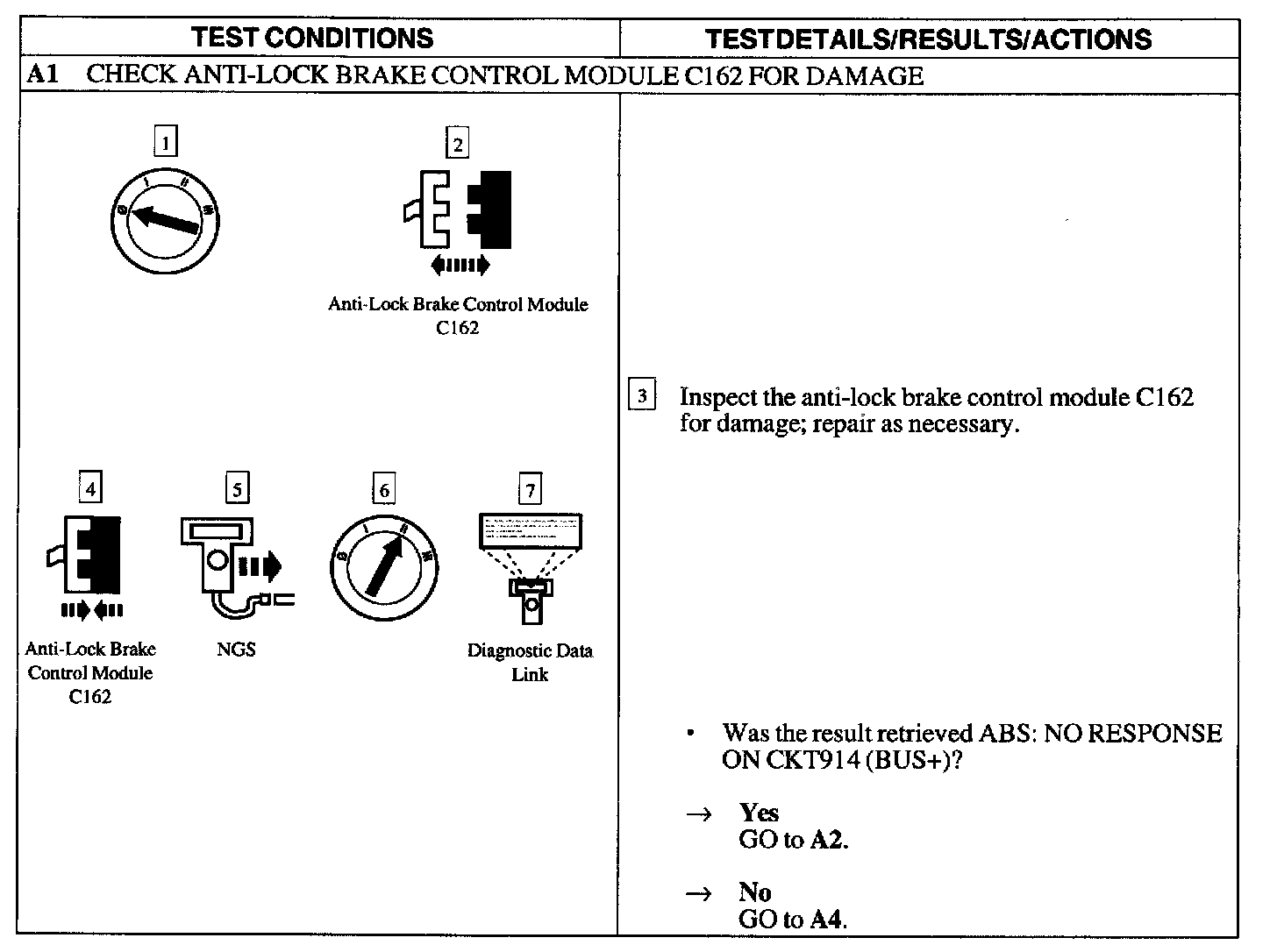

A1:






A2 - A3:

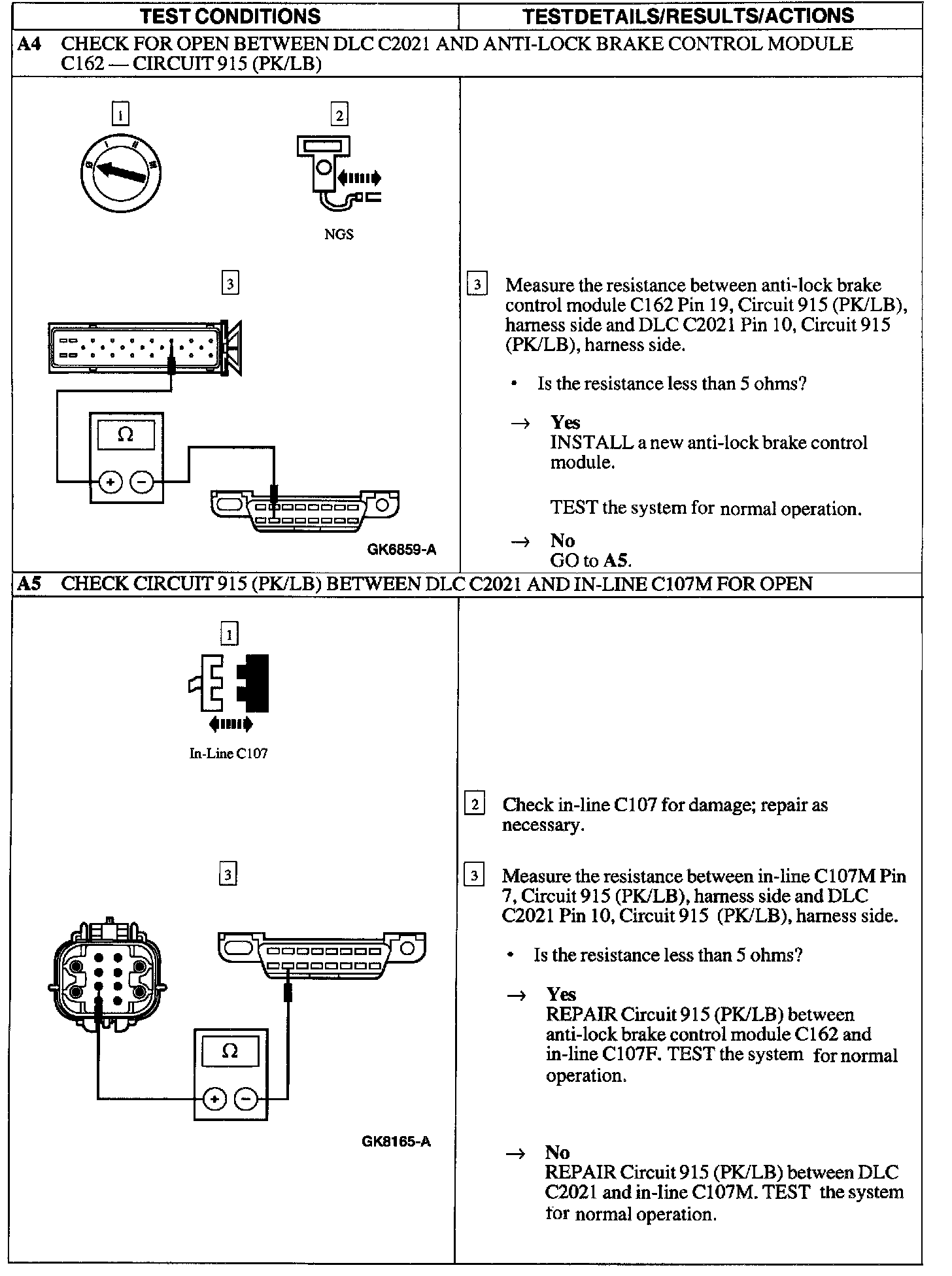

A4 - A5:
