Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

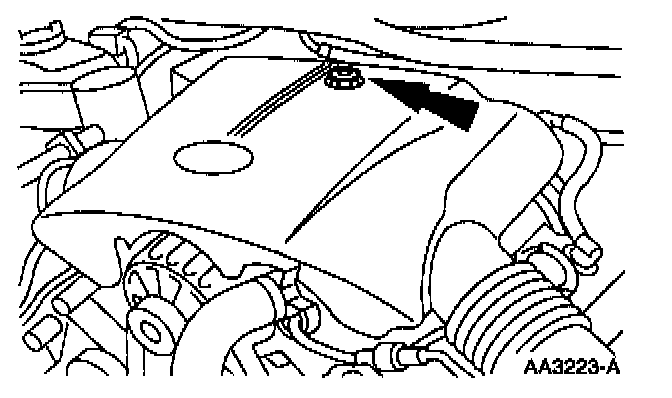

2. Remove the engine appearance cover.

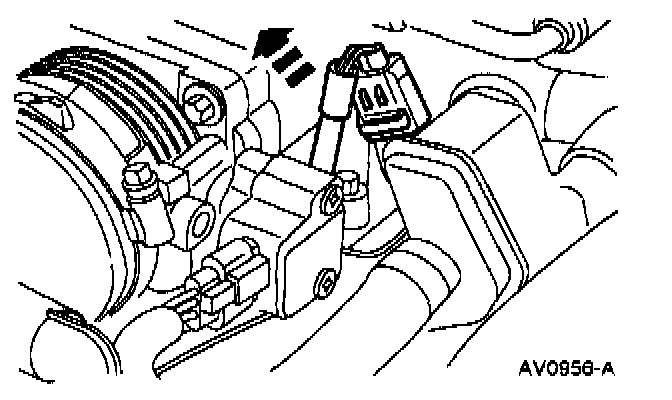

3. Disconnect the electrical connector from the Idle Air Control (IAC) valve.

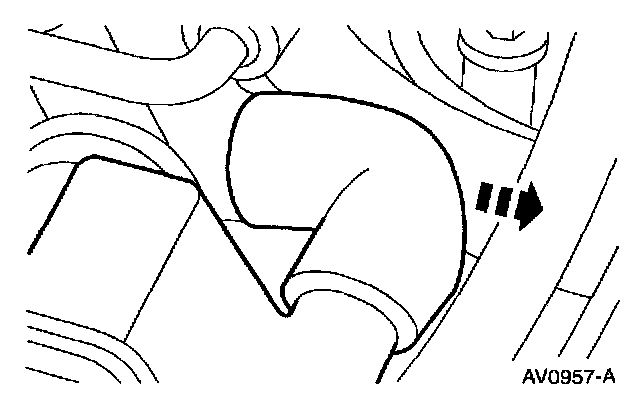

4. Remove the idle air control valve hose.

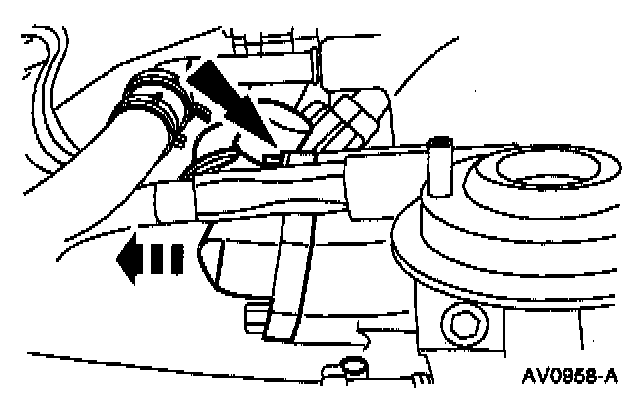

5. Remove the two screws and the idle air control valve.

INSTALLATION

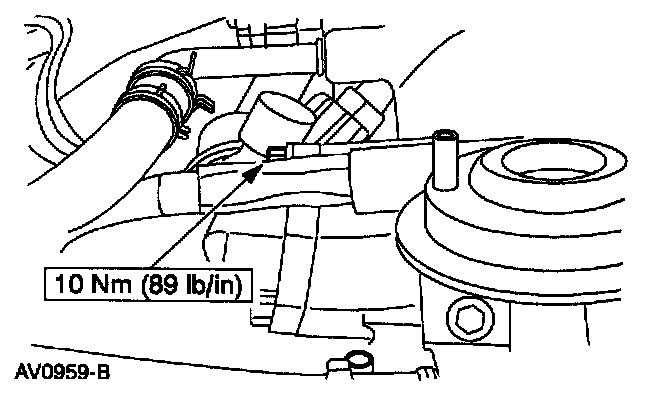

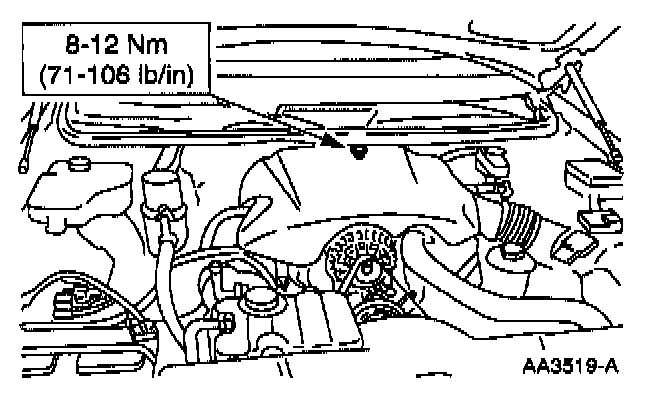

1. To install, reverse the removal procedure.
