Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Exterior Lighting (Public Safety - Police Package) >> Test AG : Public Safety Lighting Inop - RH Package Tray Lamp(S)

Test AG : Public Safety Lighting Inop - RH Package Tray Lamp(S)

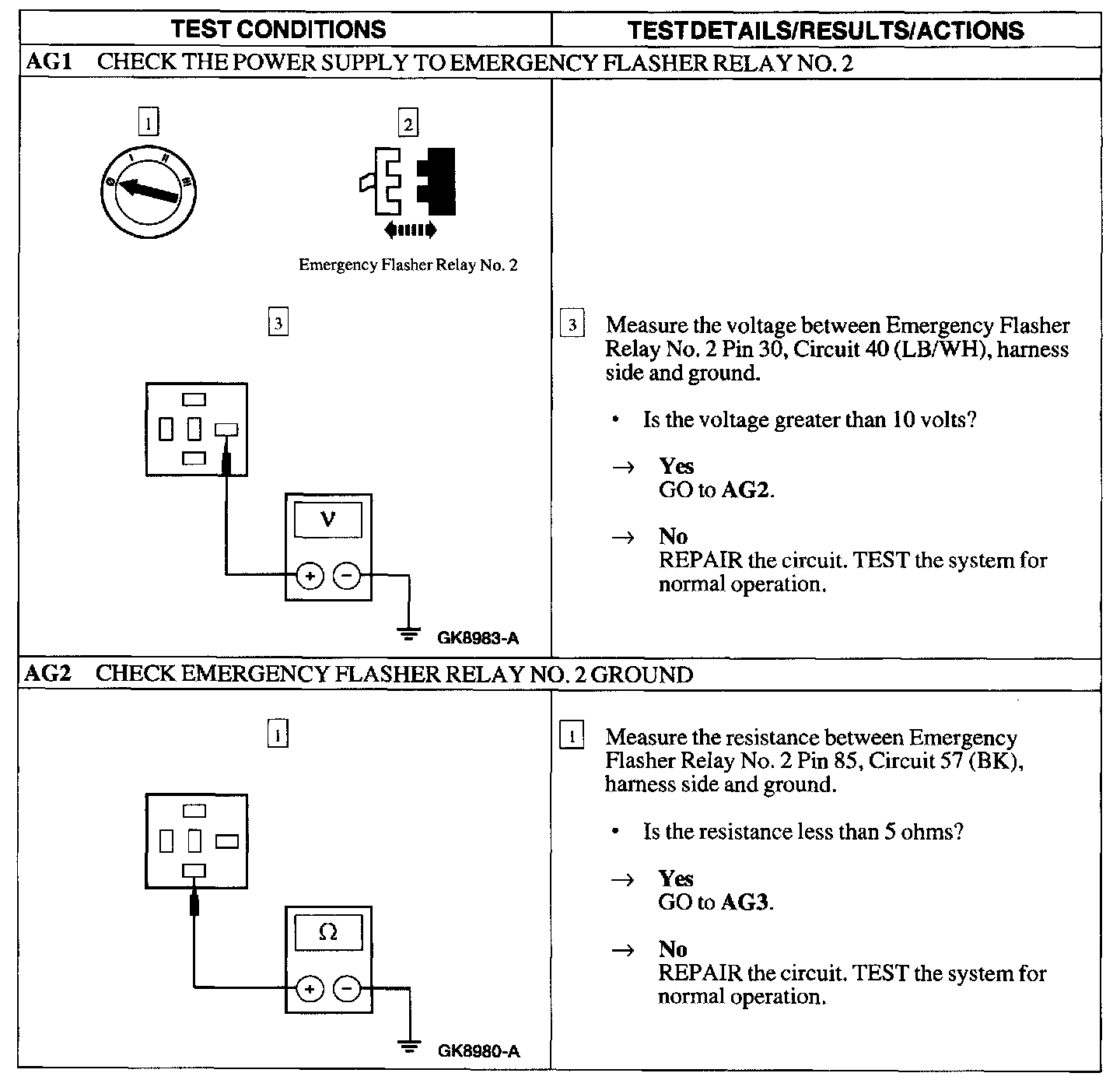

AG1 - AG2:

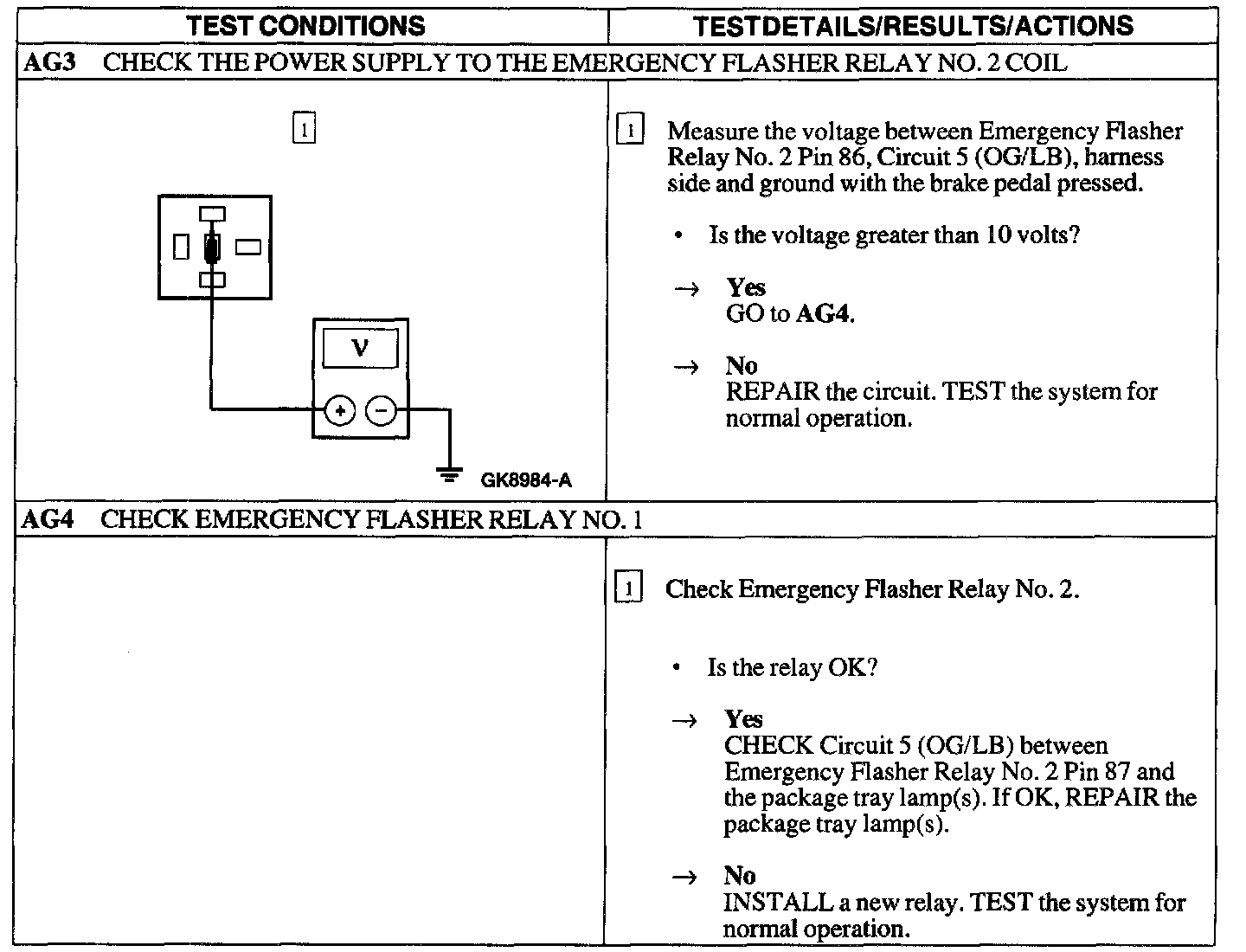

AG3 - AG4:
