Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Exterior Lighting (Public Safety - Police Package) >> Test AF : Public Safety Lighting Inop - LH Package Tray Lamp(S)

Test AF : Public Safety Lighting Inop - LH Package Tray Lamp(S)

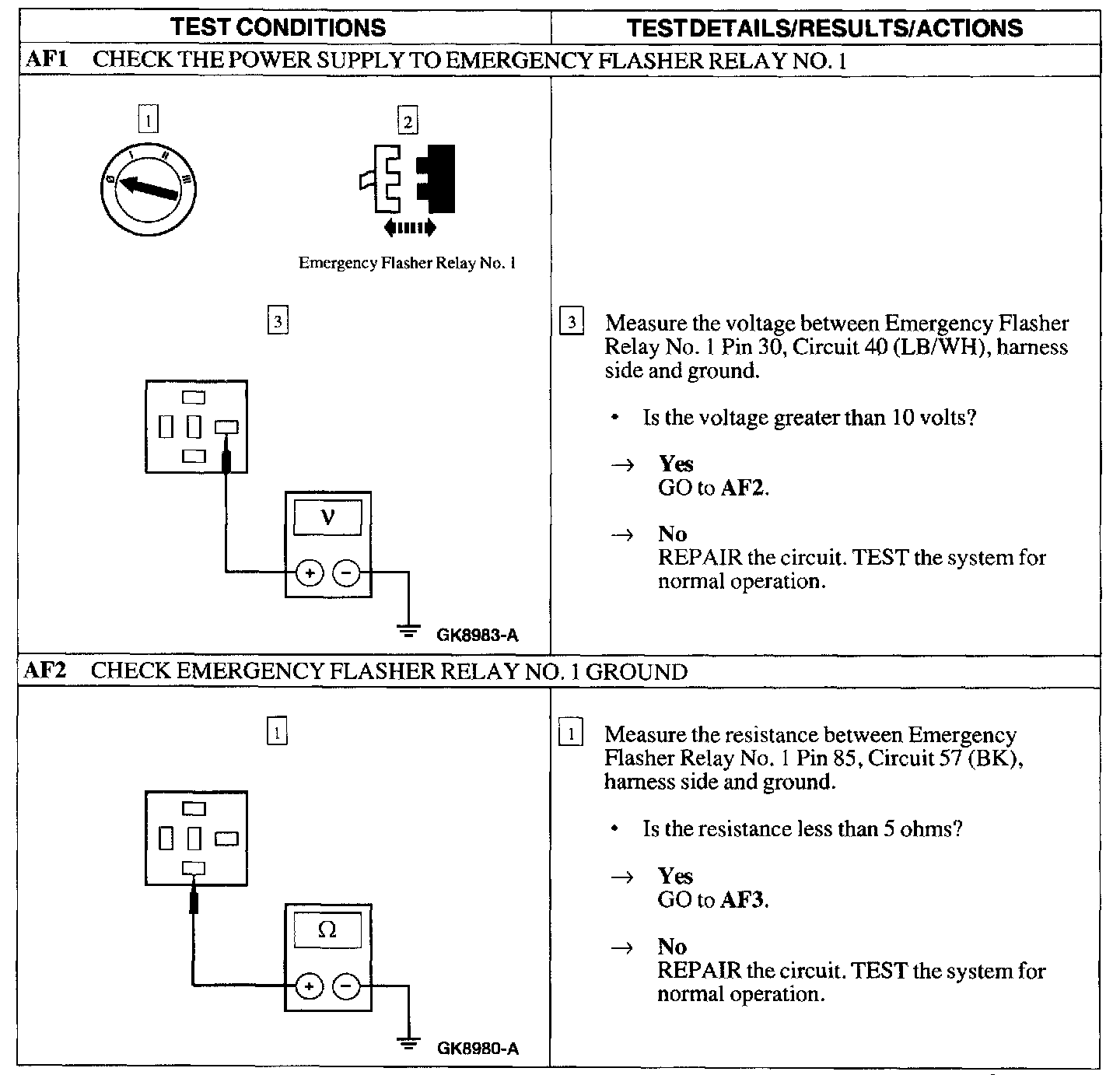

AF1 - AF2:

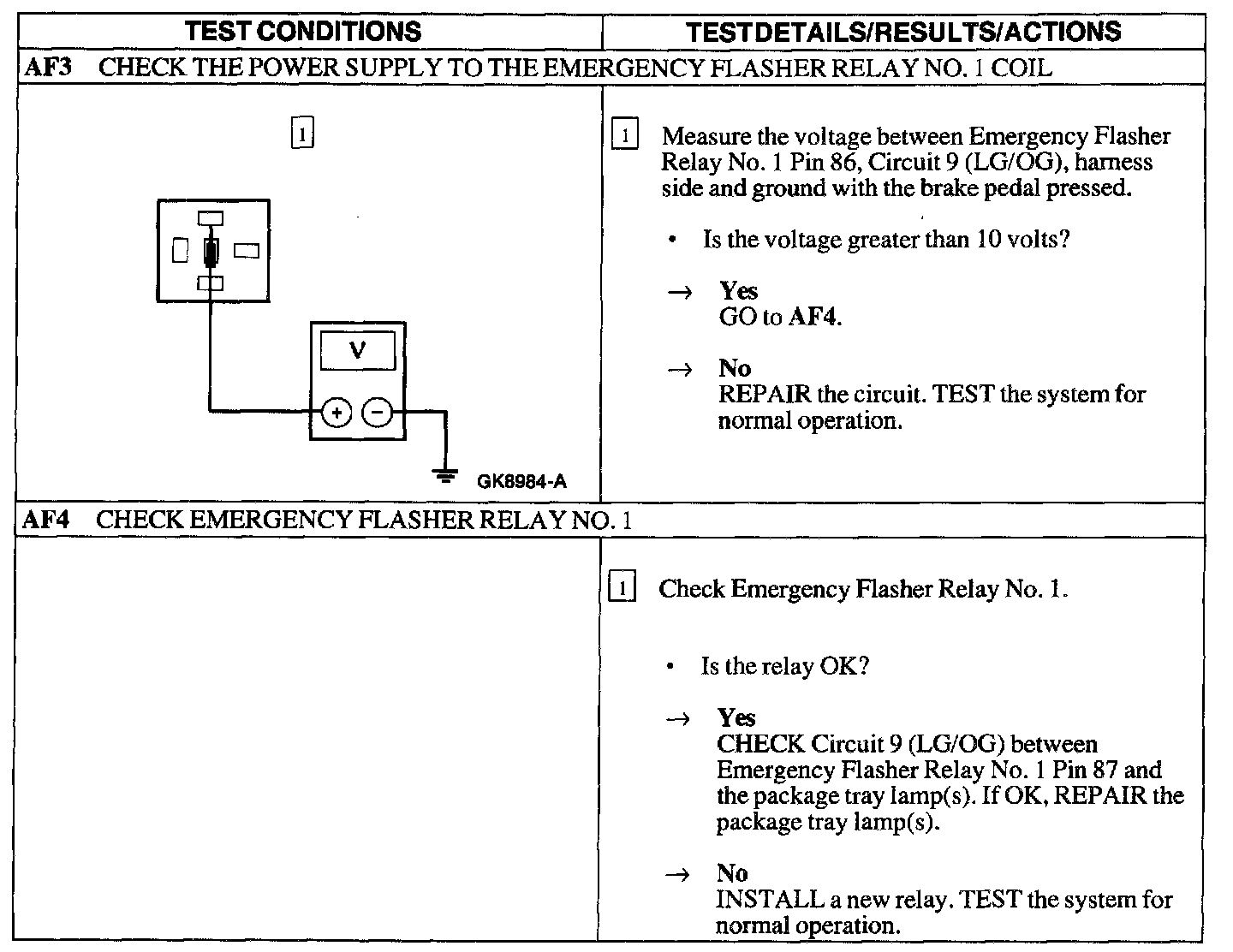

AF3 - AF4:
