Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> With Autolamp System >> Pinpoint Tests >> Test J: Autolamp Time Delay Inoperative

Test J: Autolamp Time Delay Inoperative

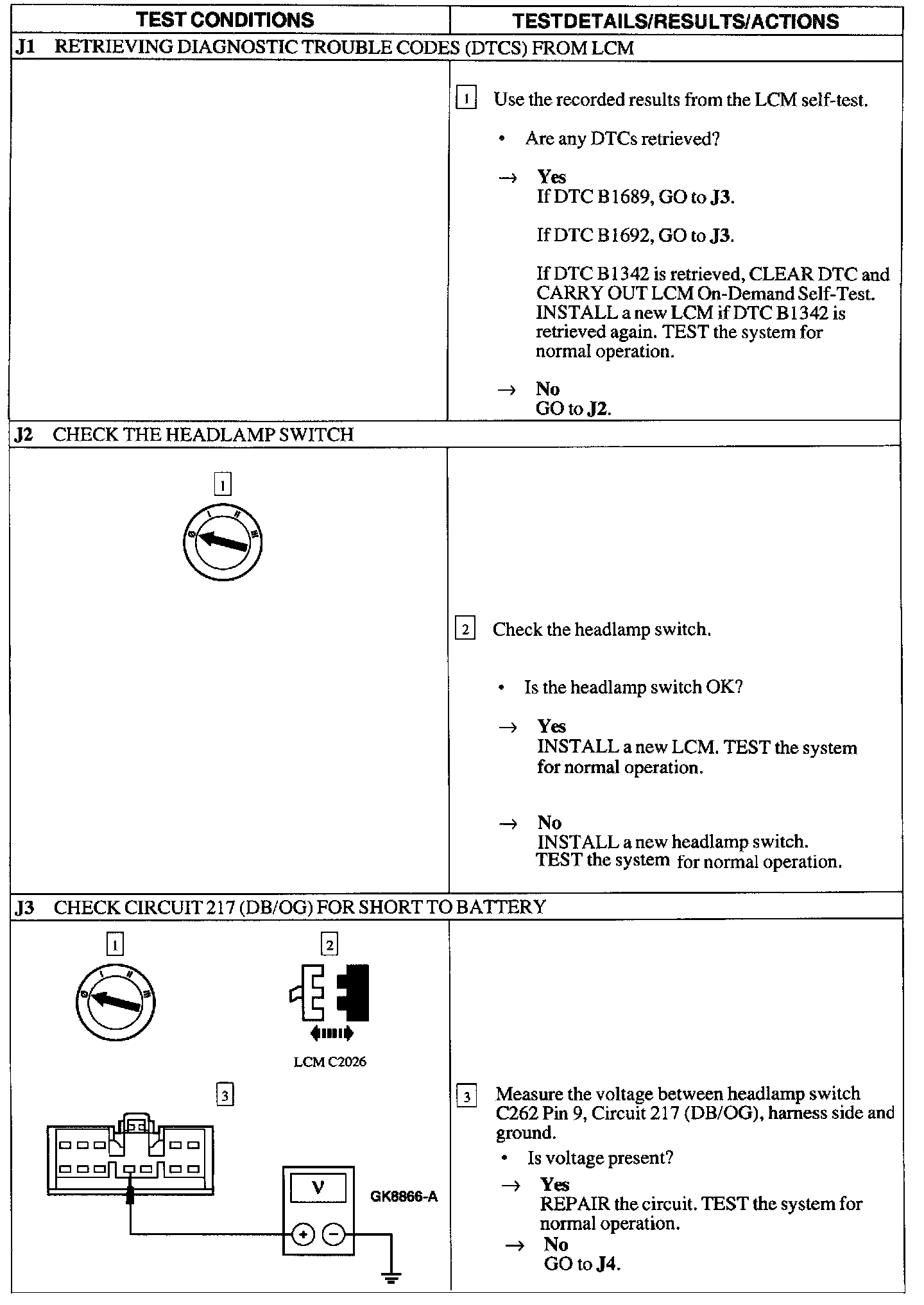

J1 - J3:

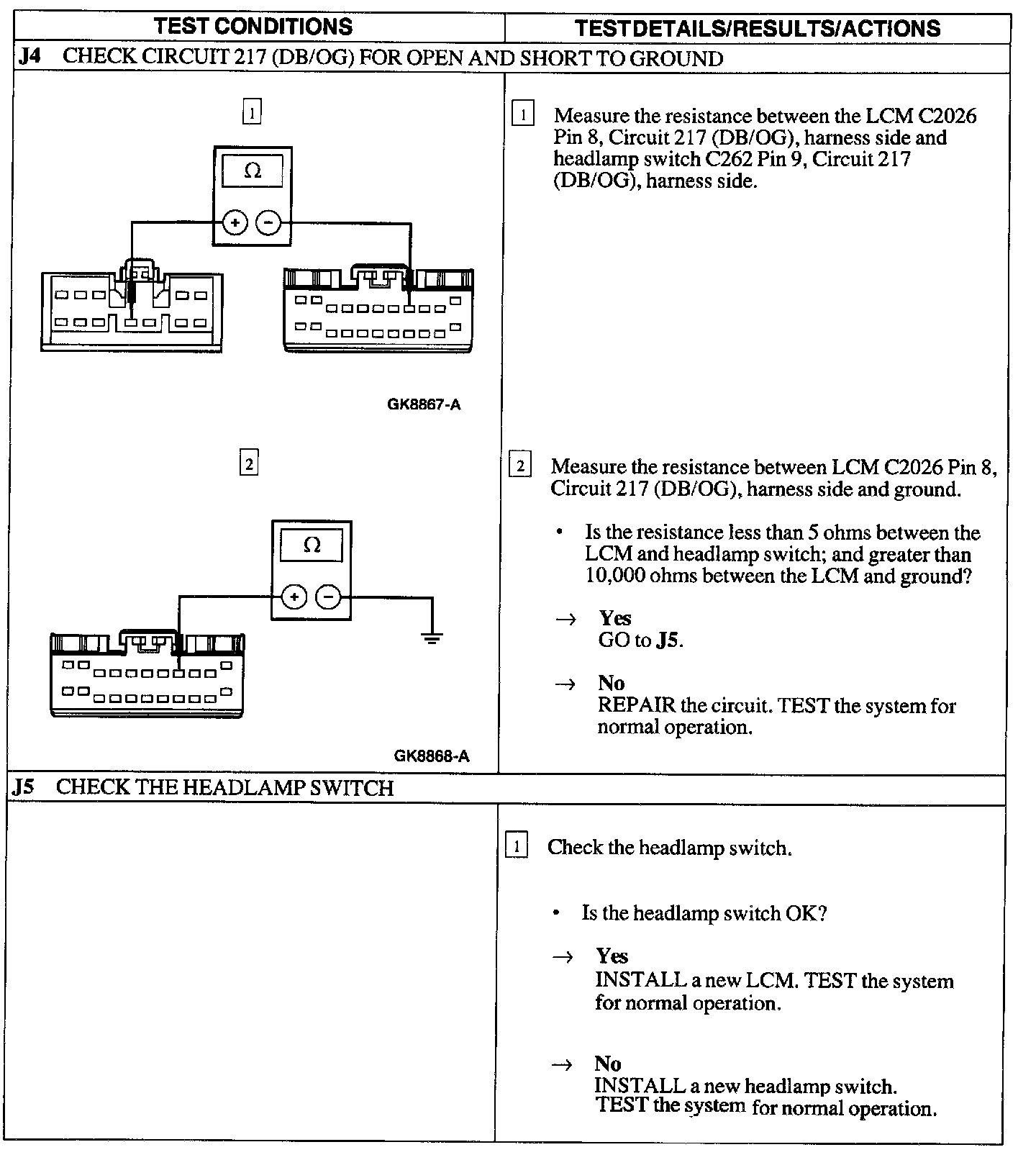

J4 - J5:
