Pinpoint Tests (Electronic Instrument Cluster)
>>

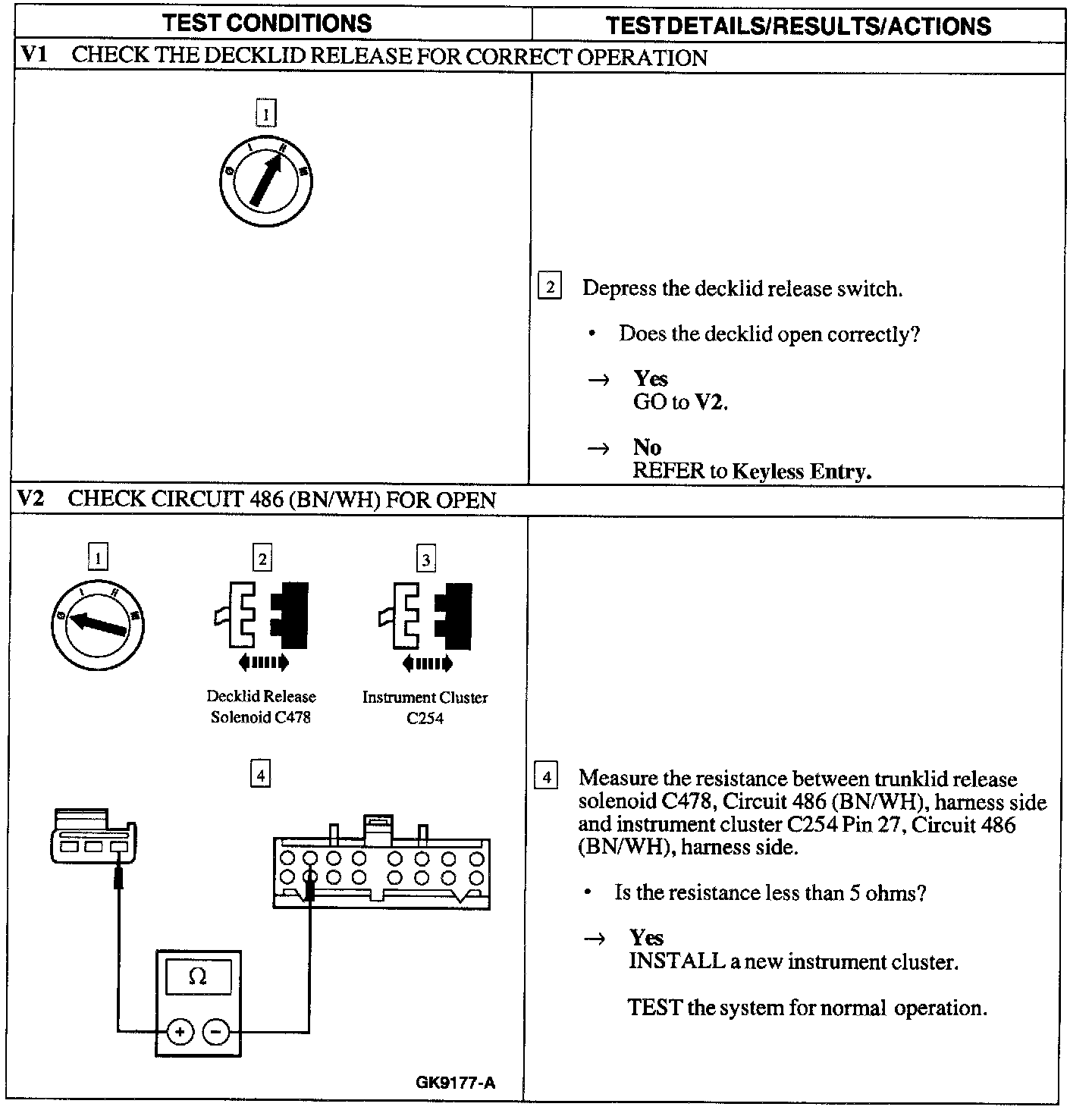

V: An Indicator Is Inoperative - Trunk Ajar
V: An Indicator Is Inoperative - Trunk Ajar
V1 - V2:
