Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests (Electronic Instrument Cluster)
>>
T: An Indicator Is Inoperative - Fail Safe Cooling
T: An Indicator Is Inoperative - Fail Safe Cooling

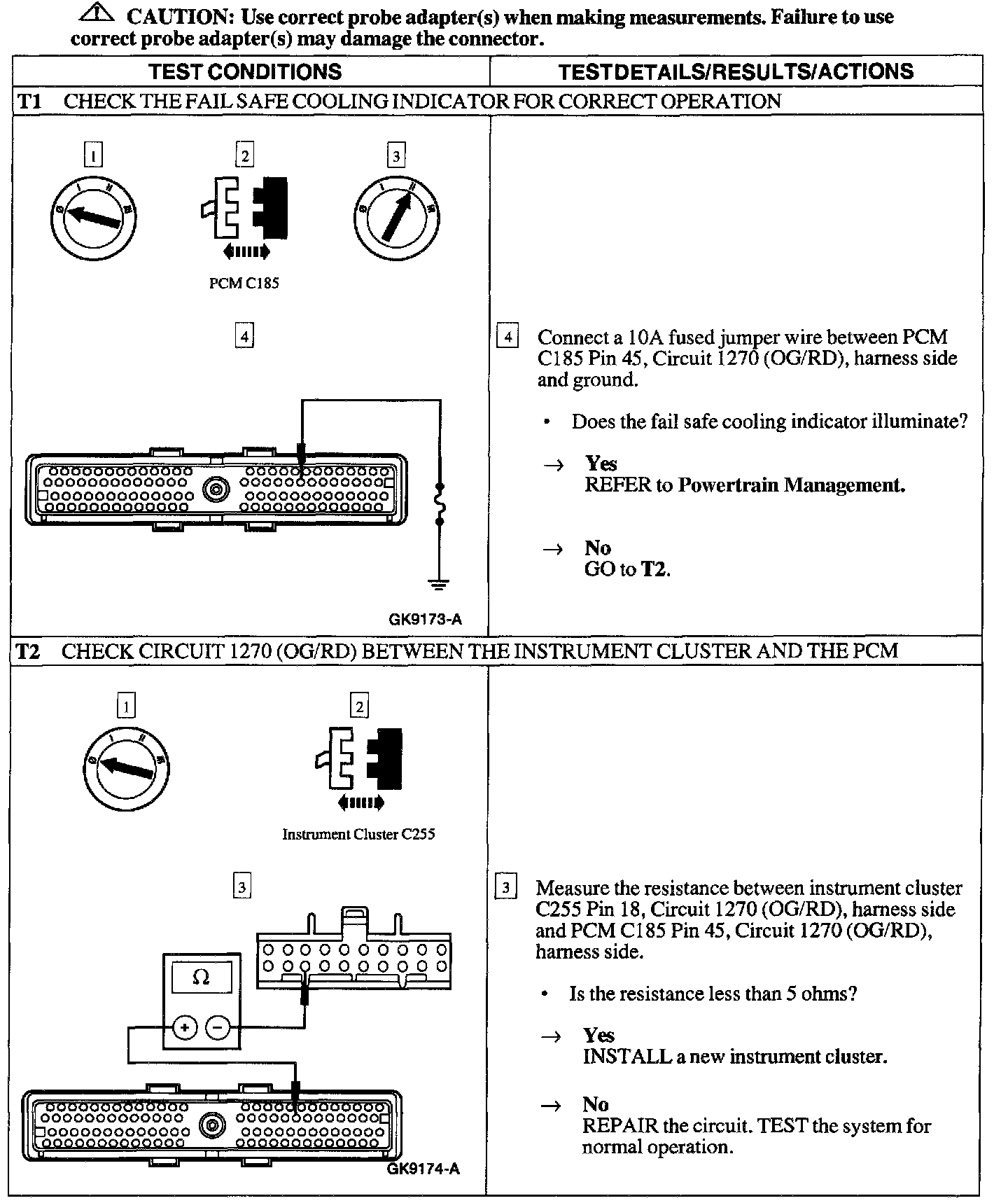

T1 - T2:
