Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Electronic Instrument Cluster) >> R: An Indicator Is Inoperative - Overdrive Off

R: An Indicator Is Inoperative - Overdrive Off

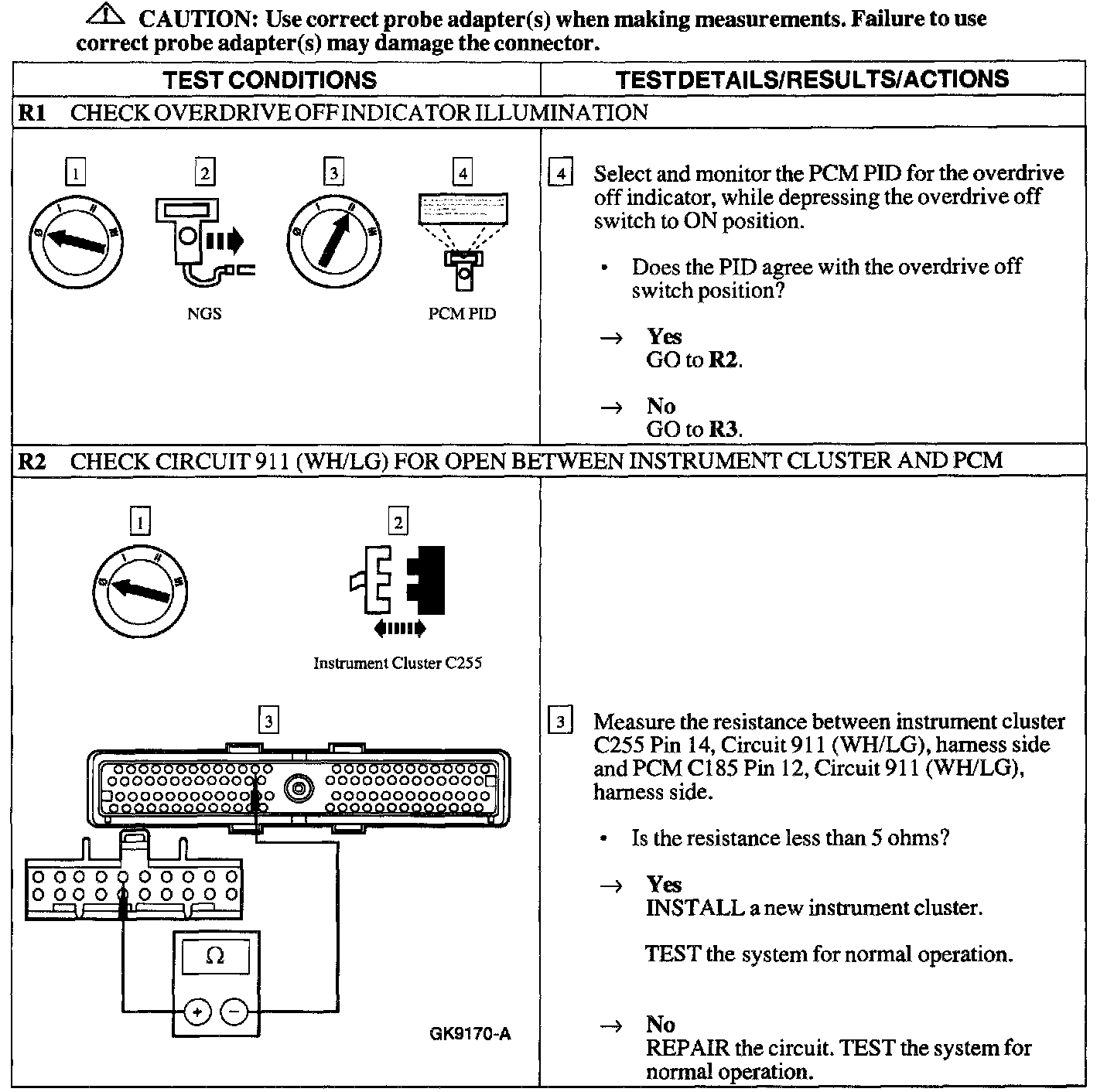

R1 - R2:

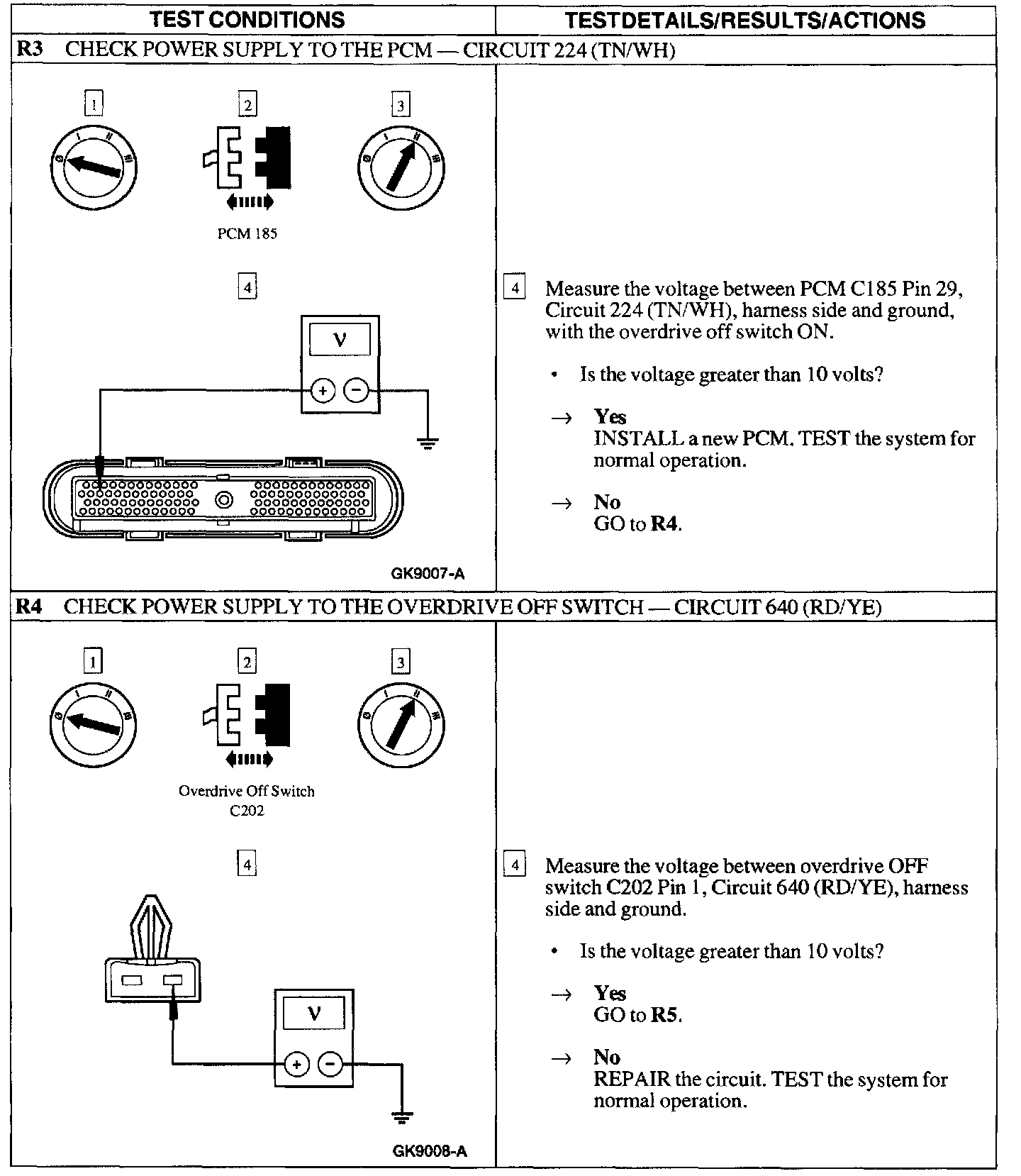

R3 - R4:

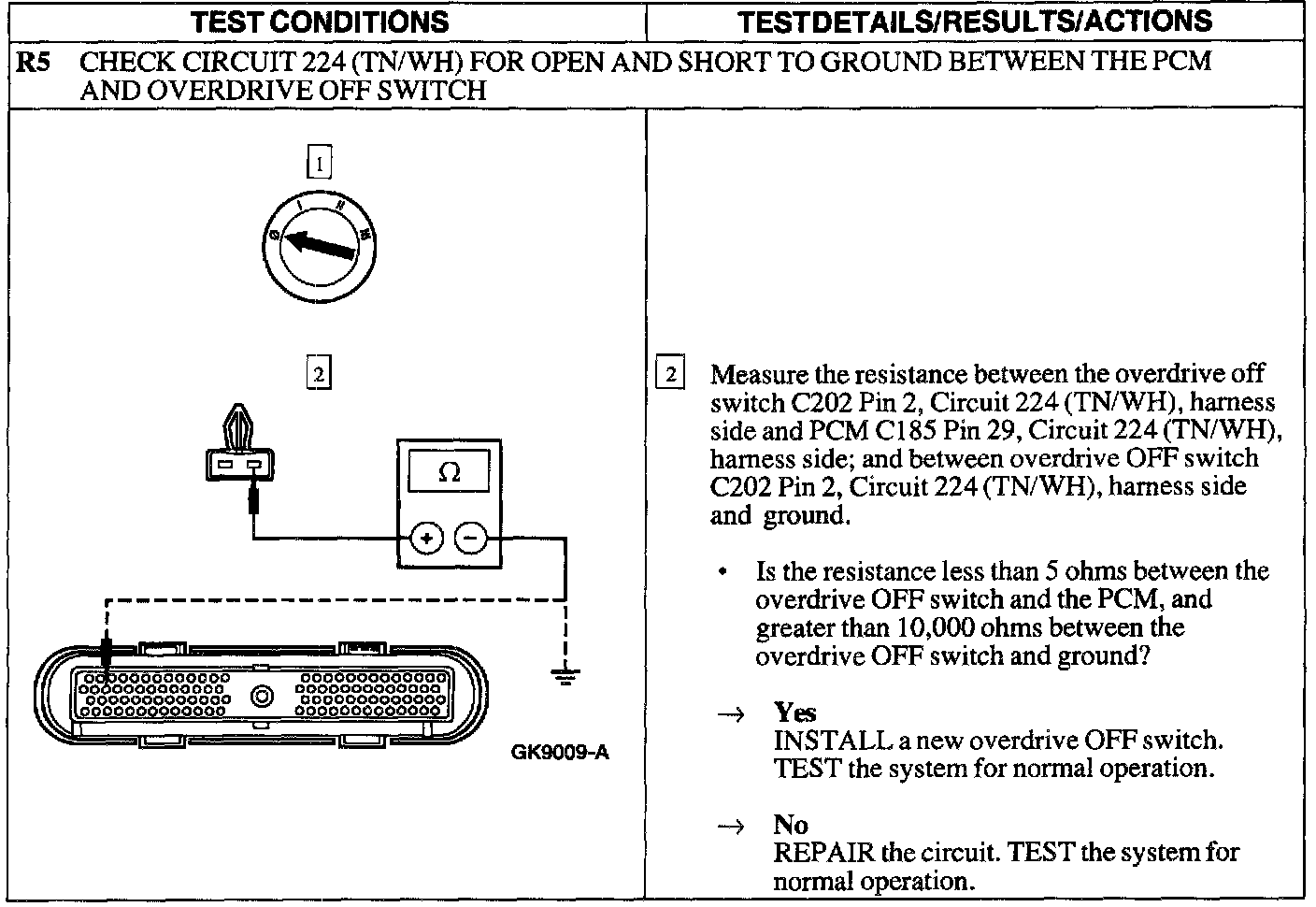

R5:
