FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests (Electronic Instrument Cluster)
>>

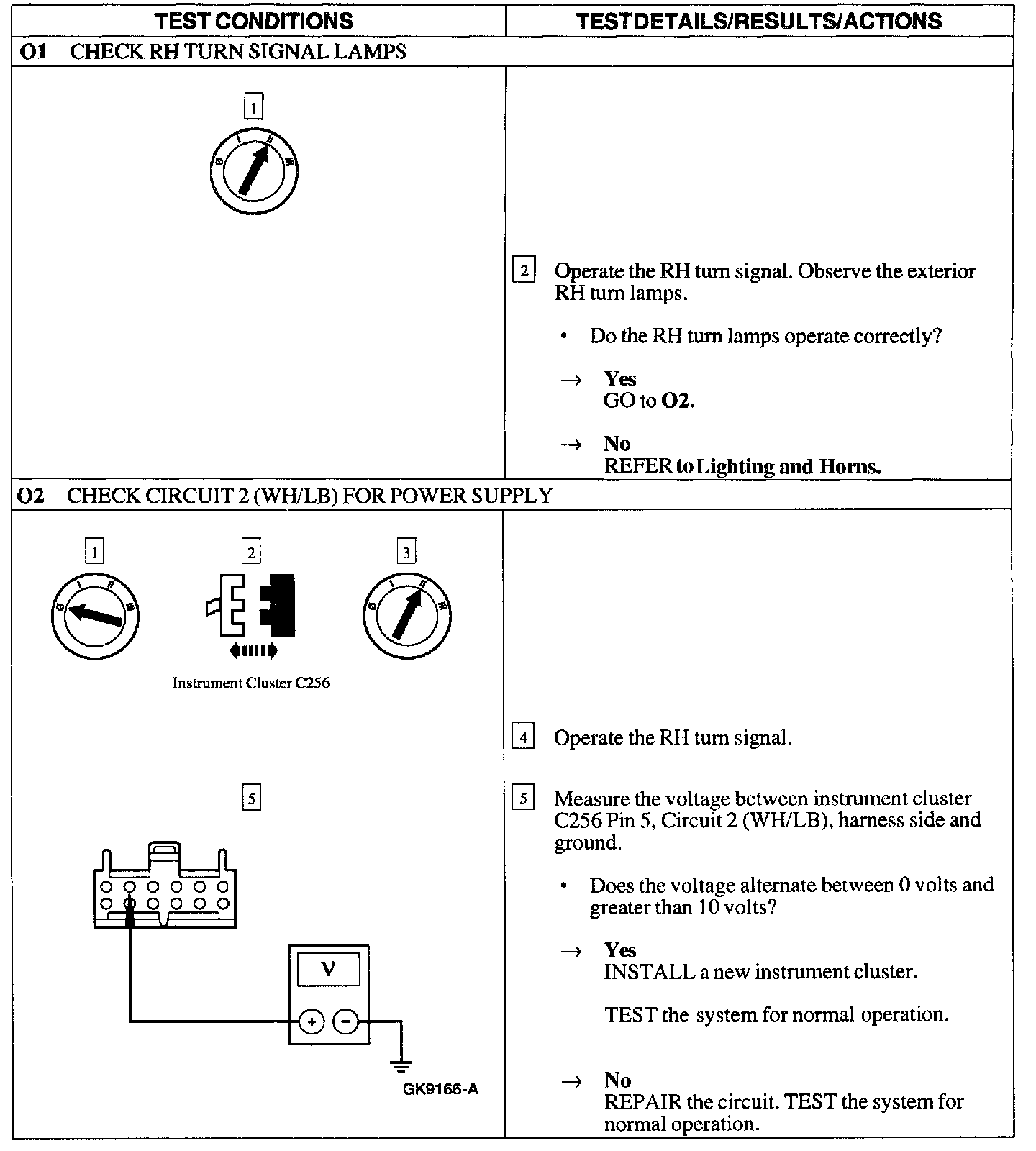

O: An Indicator Is Inoperative - RH Turn
O: An Indicator Is Inoperative - RH Turn
O1 - 02:
