Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Electronic Instrument Cluster) >> J: The Brake Warning Indicator Is Never ON

J: The Brake Warning Indicator Is Never ON

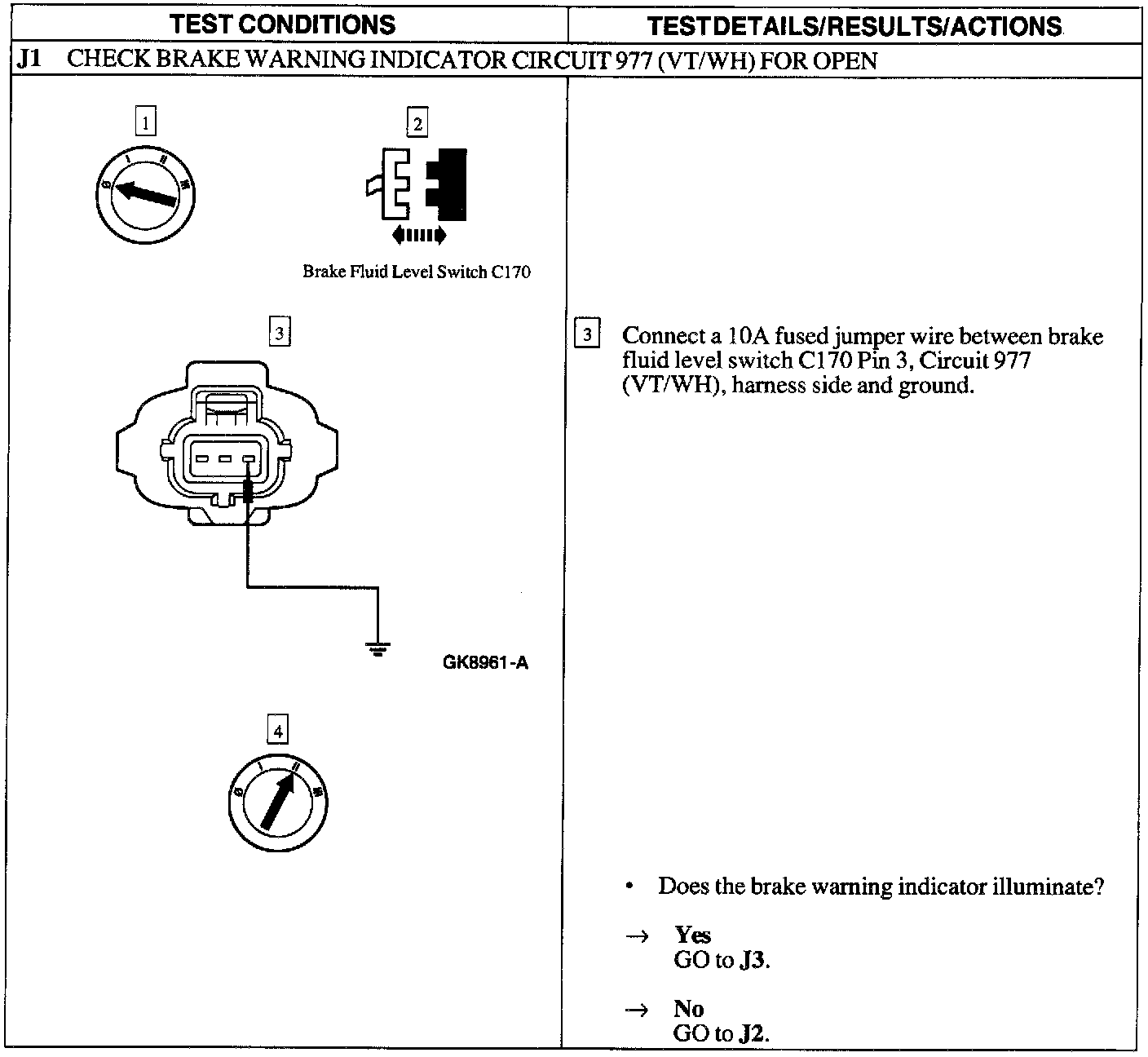

J1:

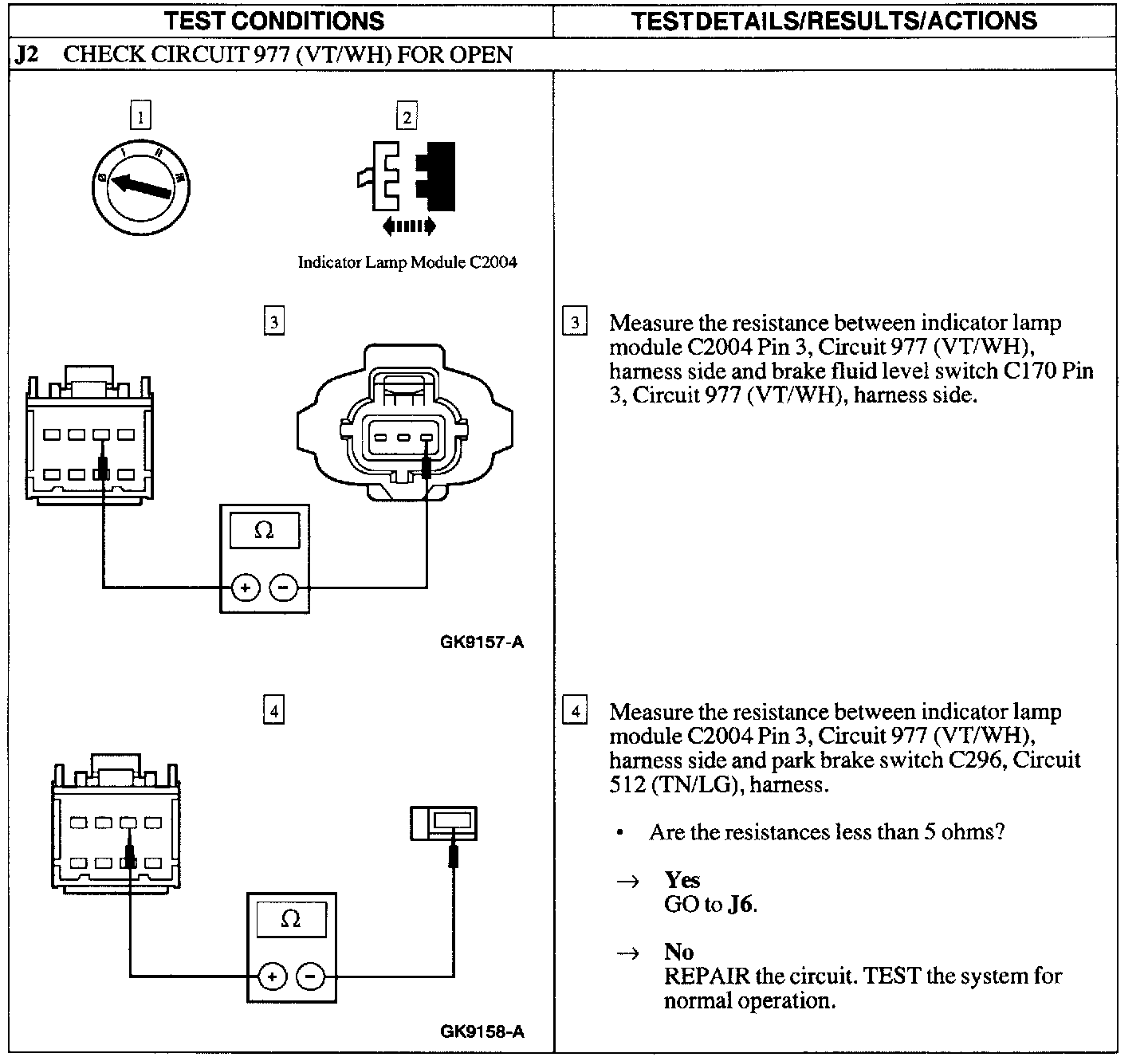

J2:

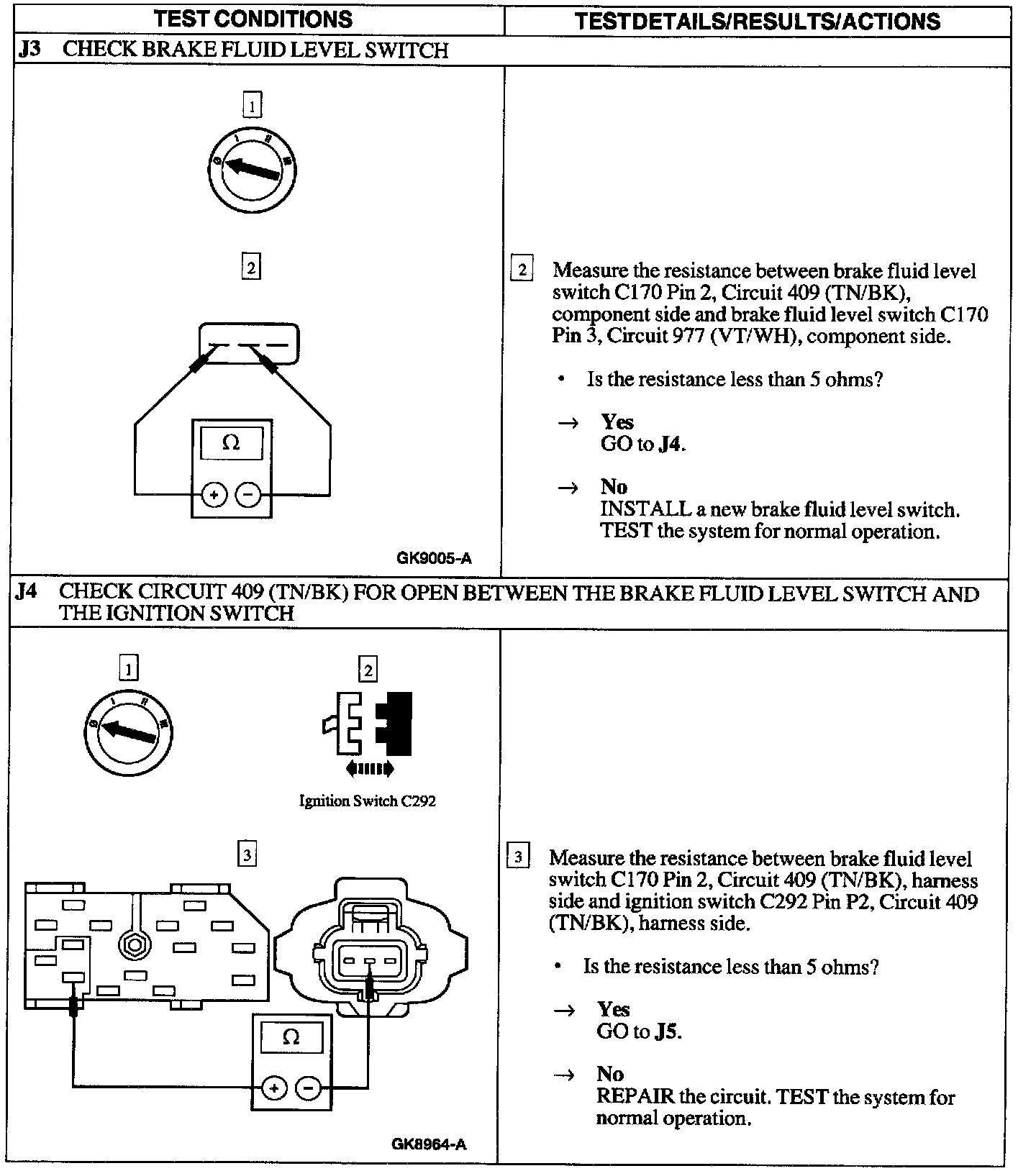

J3 - J4:

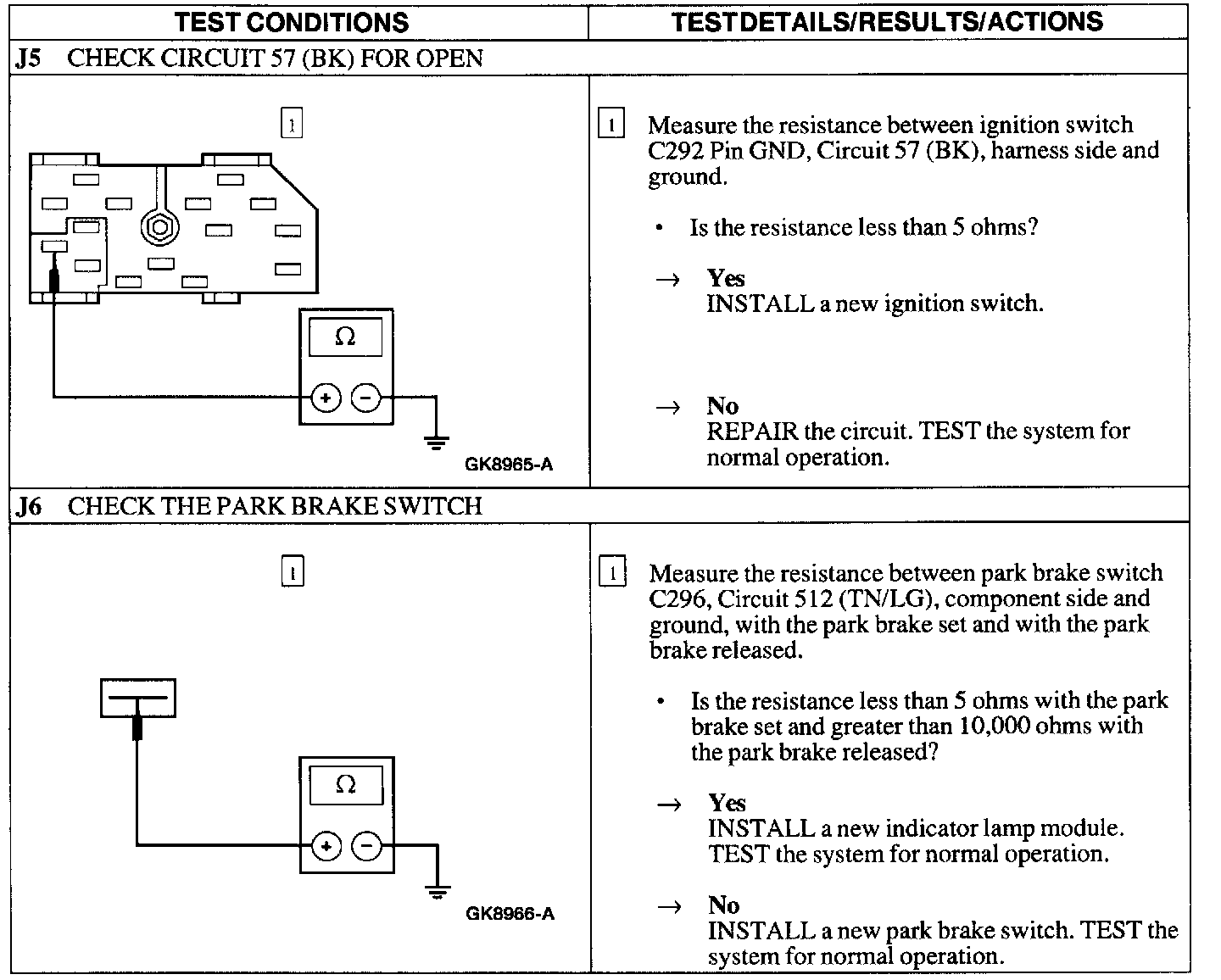

J5 - J6:
