Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Electronic Instrument Cluster) >> I: The Charge System Warning Indicator Is Never ON

I: The Charge System Warning Indicator Is Never ON

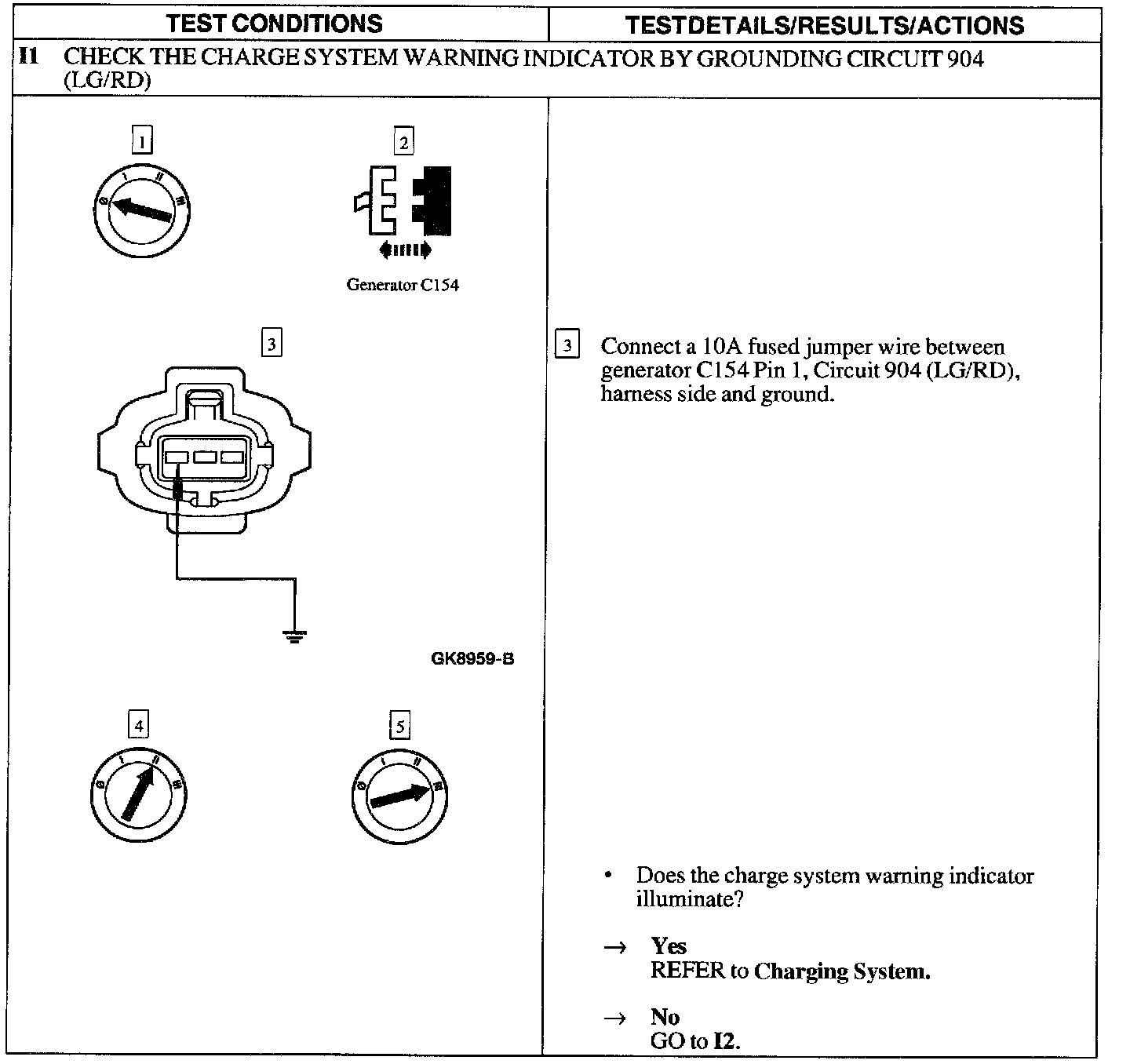

I1:

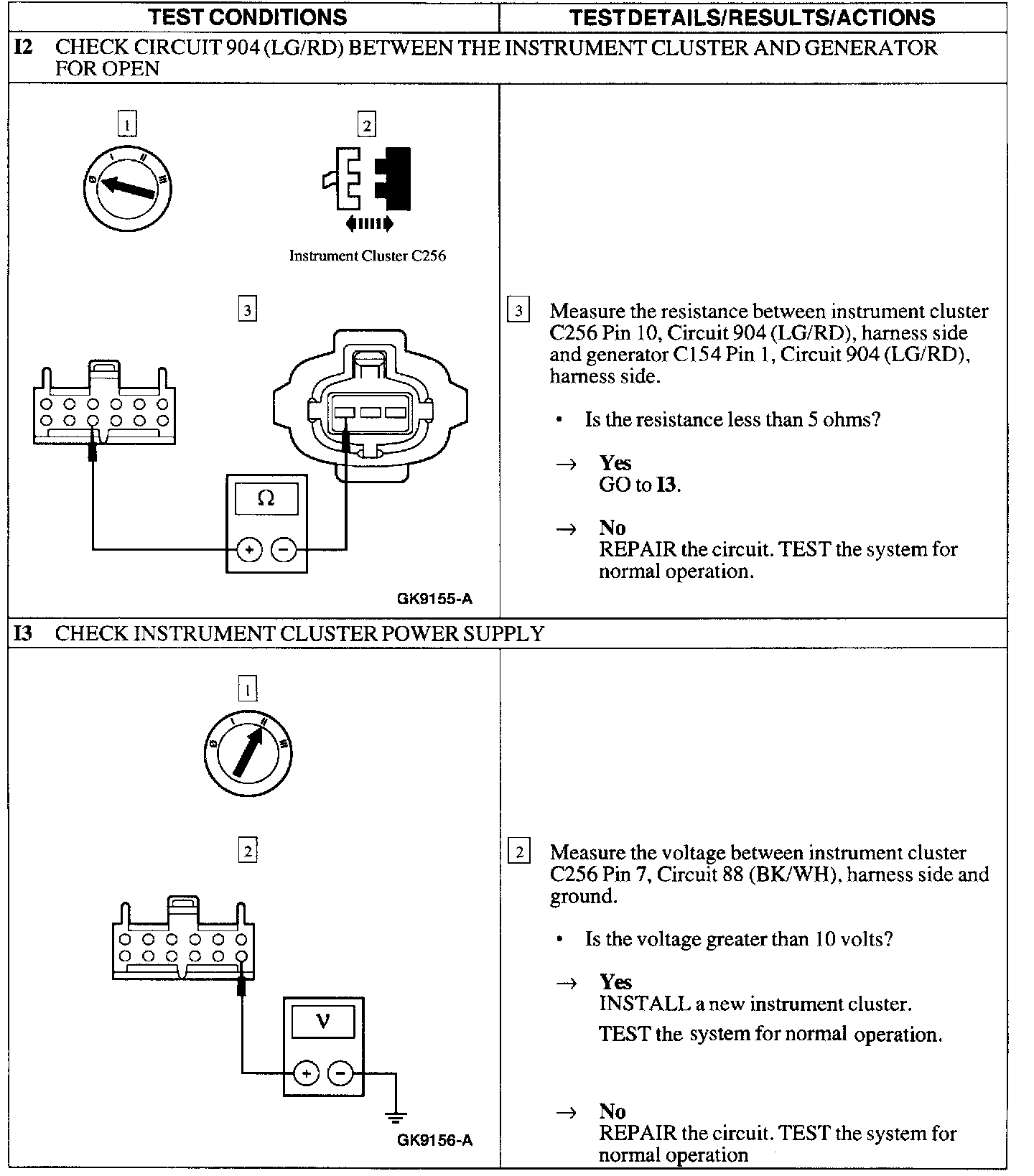

I2 - I3:
