Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Electronic Instrument Cluster) >> D: Incorrect Fuel Gauge Indication

D: Incorrect Fuel Gauge Indication

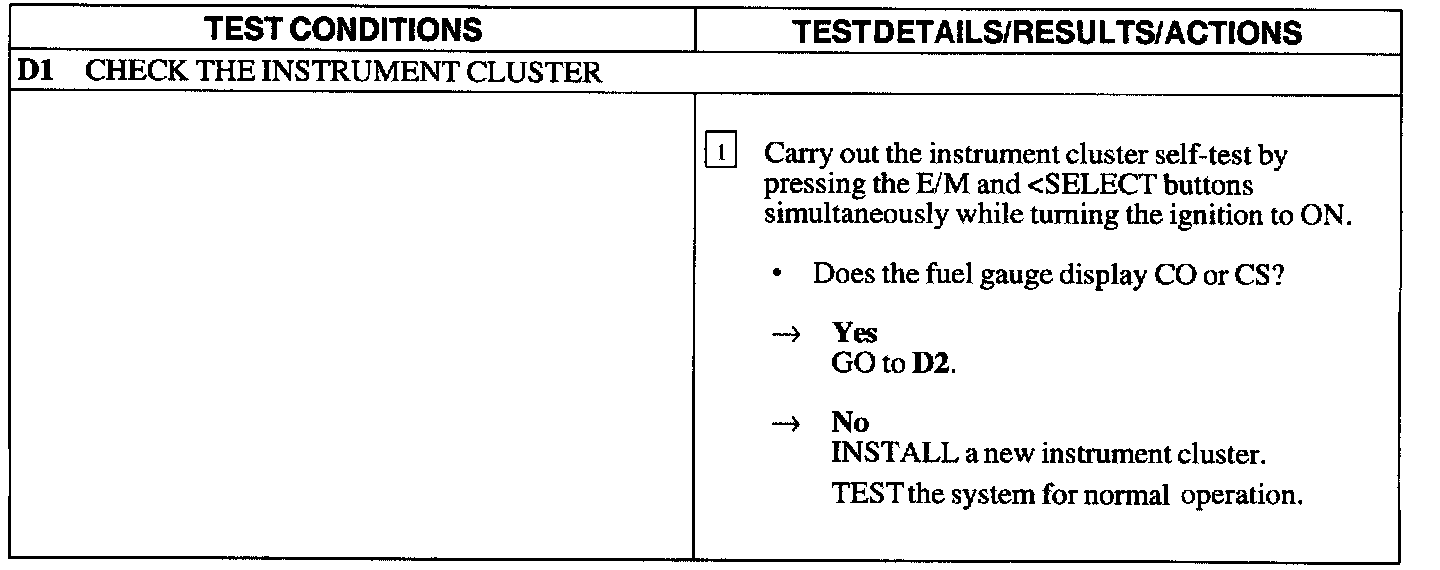

D1:

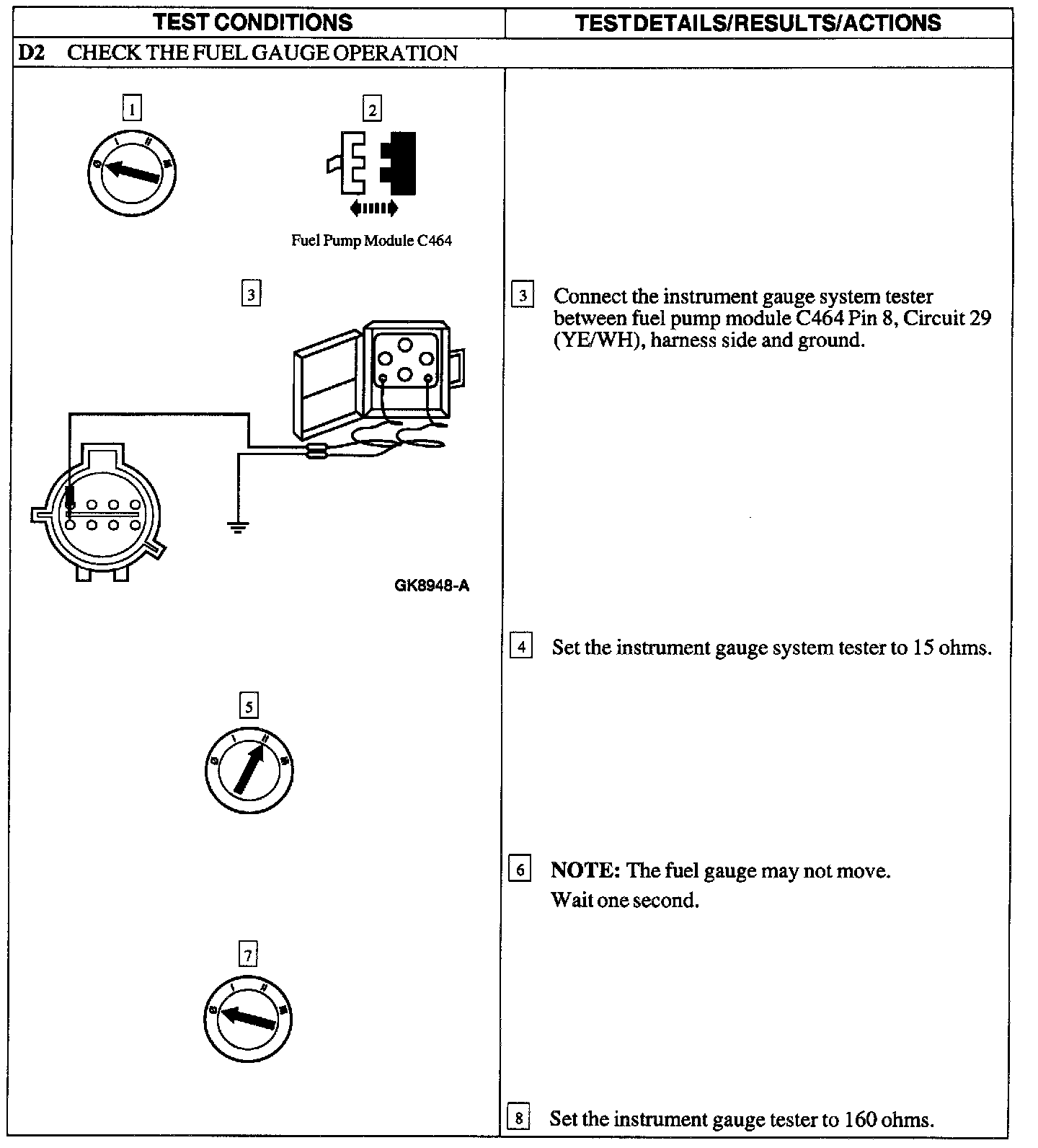

D2 ( Part 1 Of 2 ):

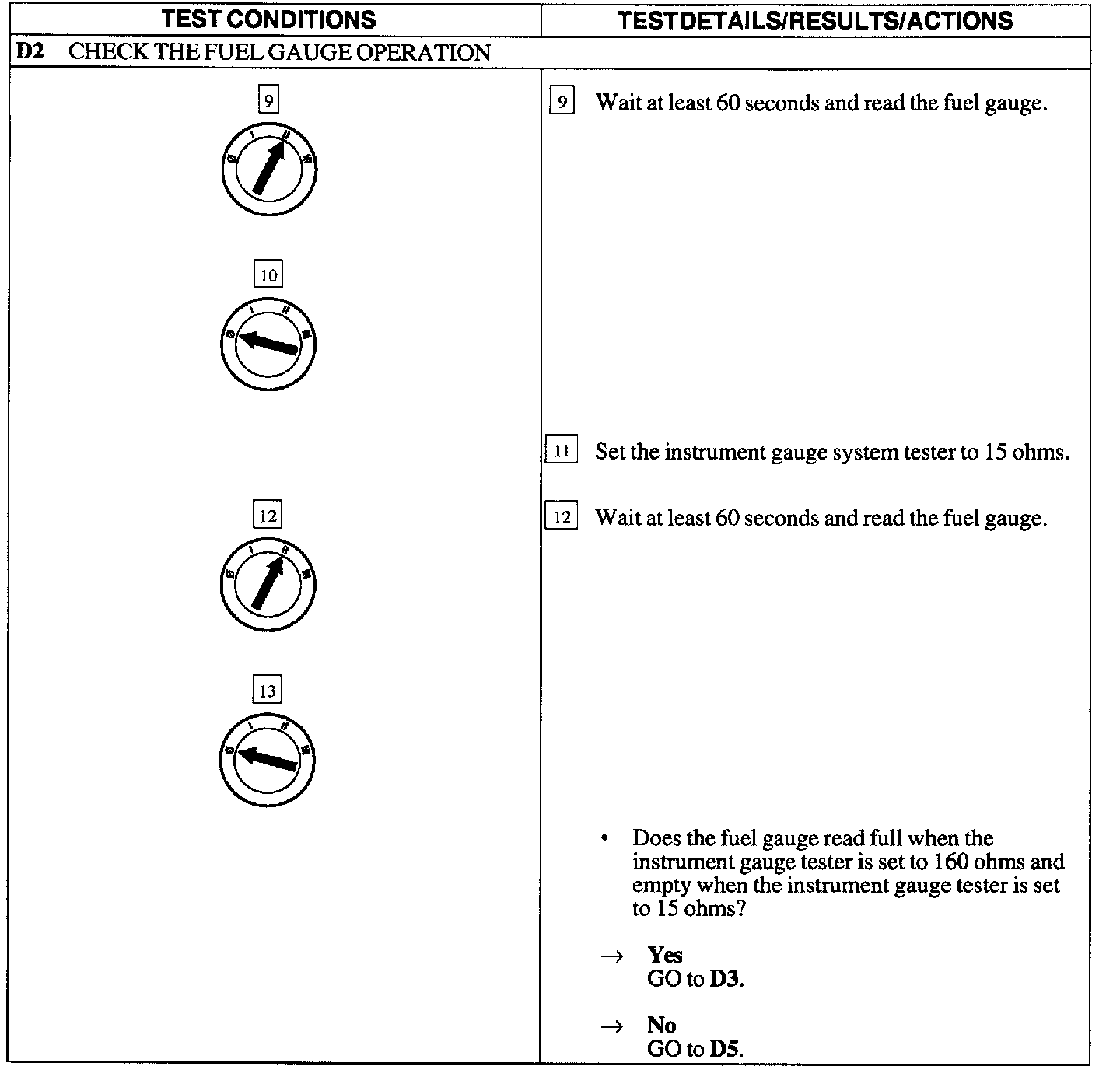

D2 ( Part 2 Of 2 ):

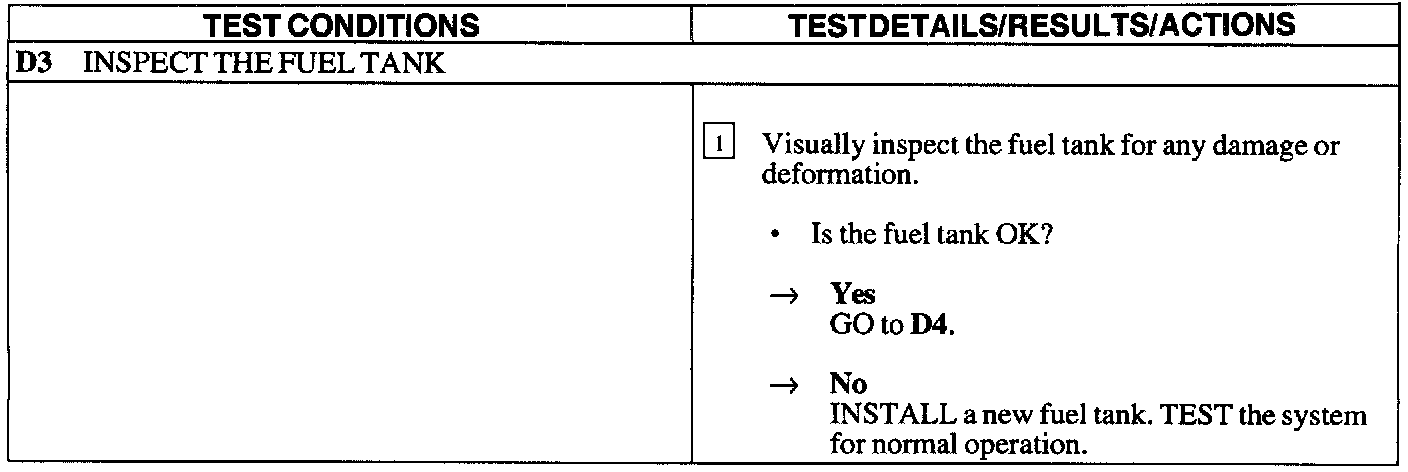

D3:

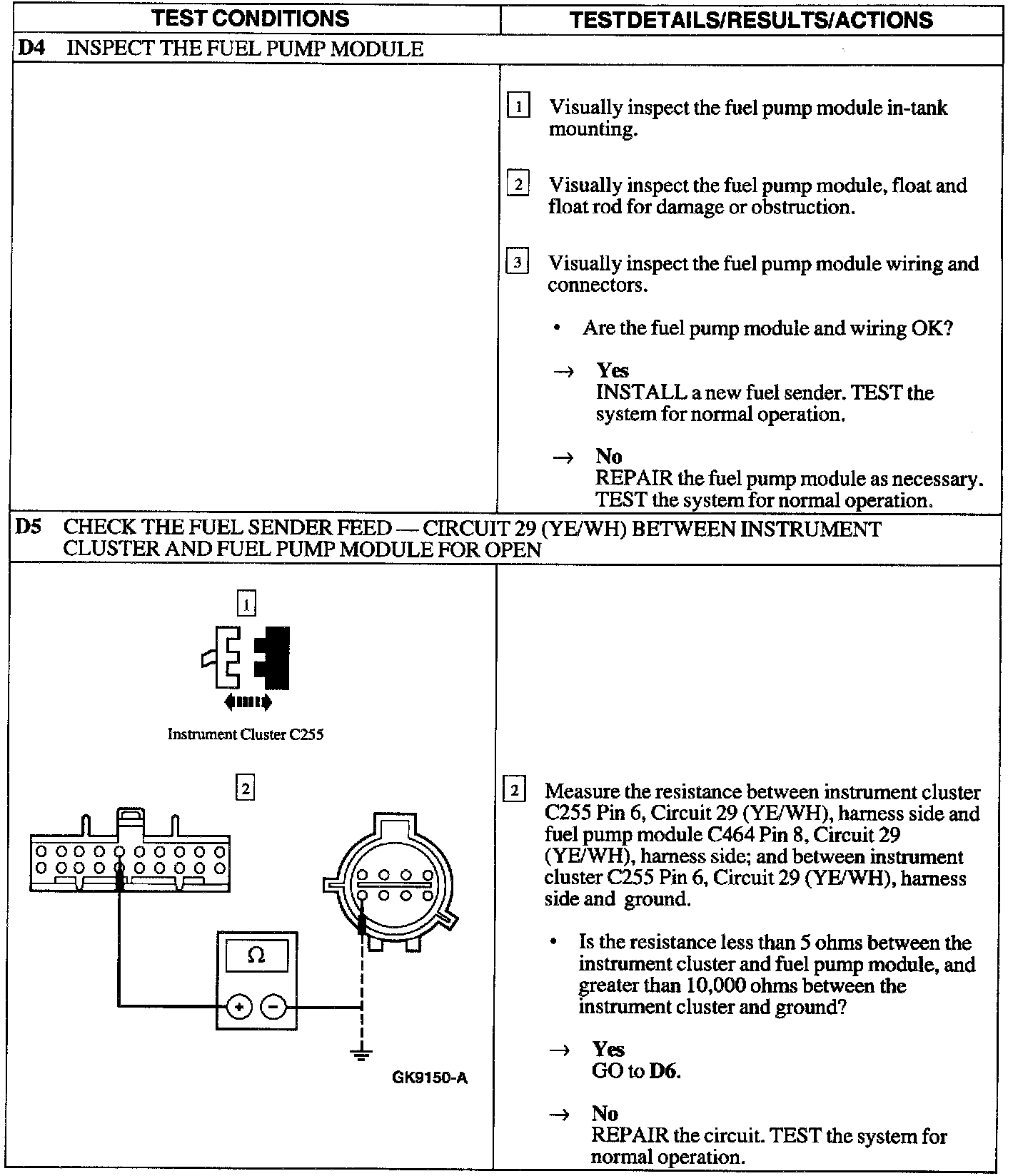

D4 - D5:






D6:
