Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests (Conventional Instrument Cluster)
>>

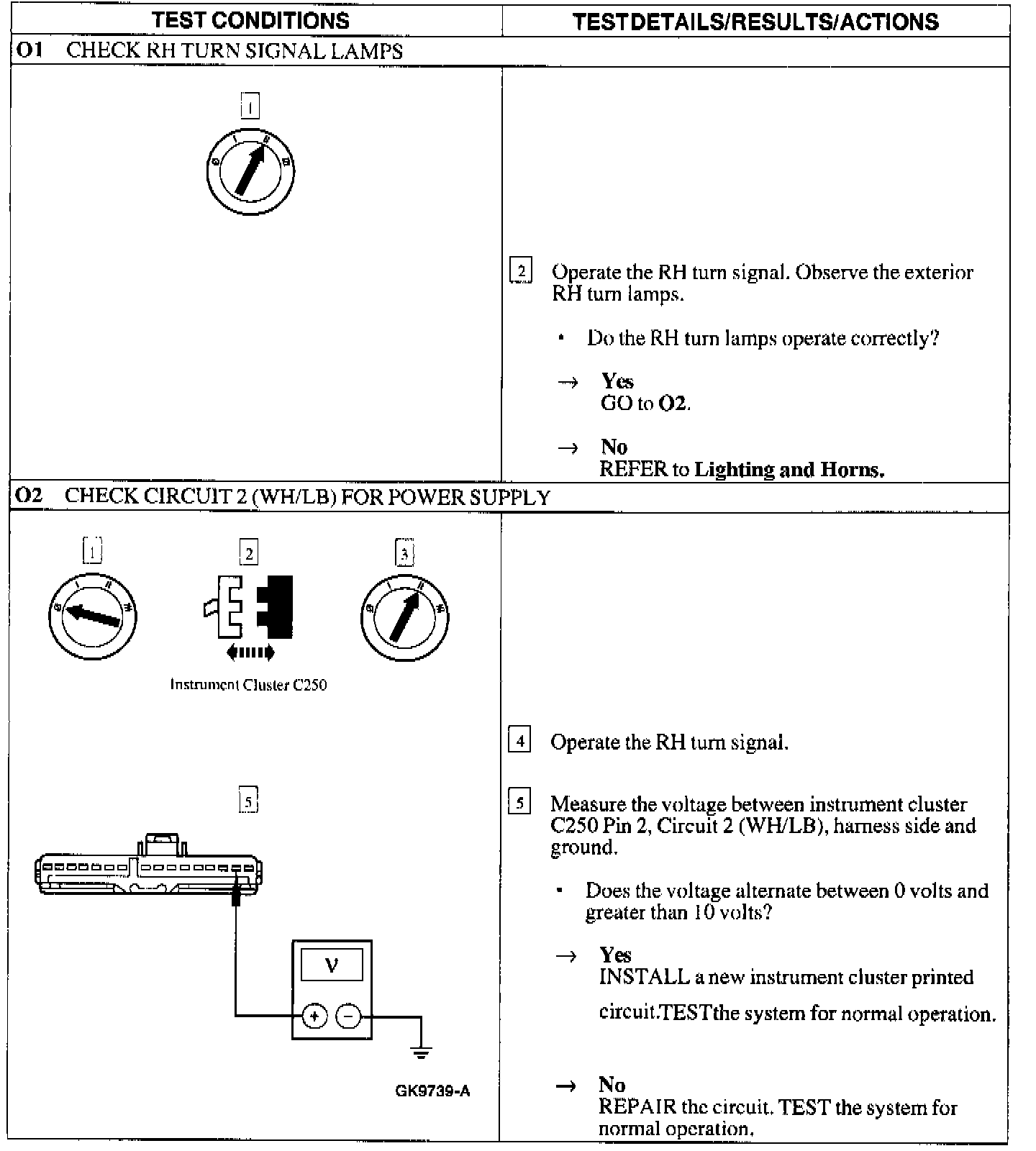

O: A Lamp Is Inoperative - RH Turn
O: A Lamp Is Inoperative - RH Turn
O1 - O2:
