Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Conventional Instrument Cluster) >> L: Safety Belt Warning Lamp Is Inop (Chime OK)

L: Safety Belt Warning Lamp Is Inop (Chime OK)

L1 - L2:

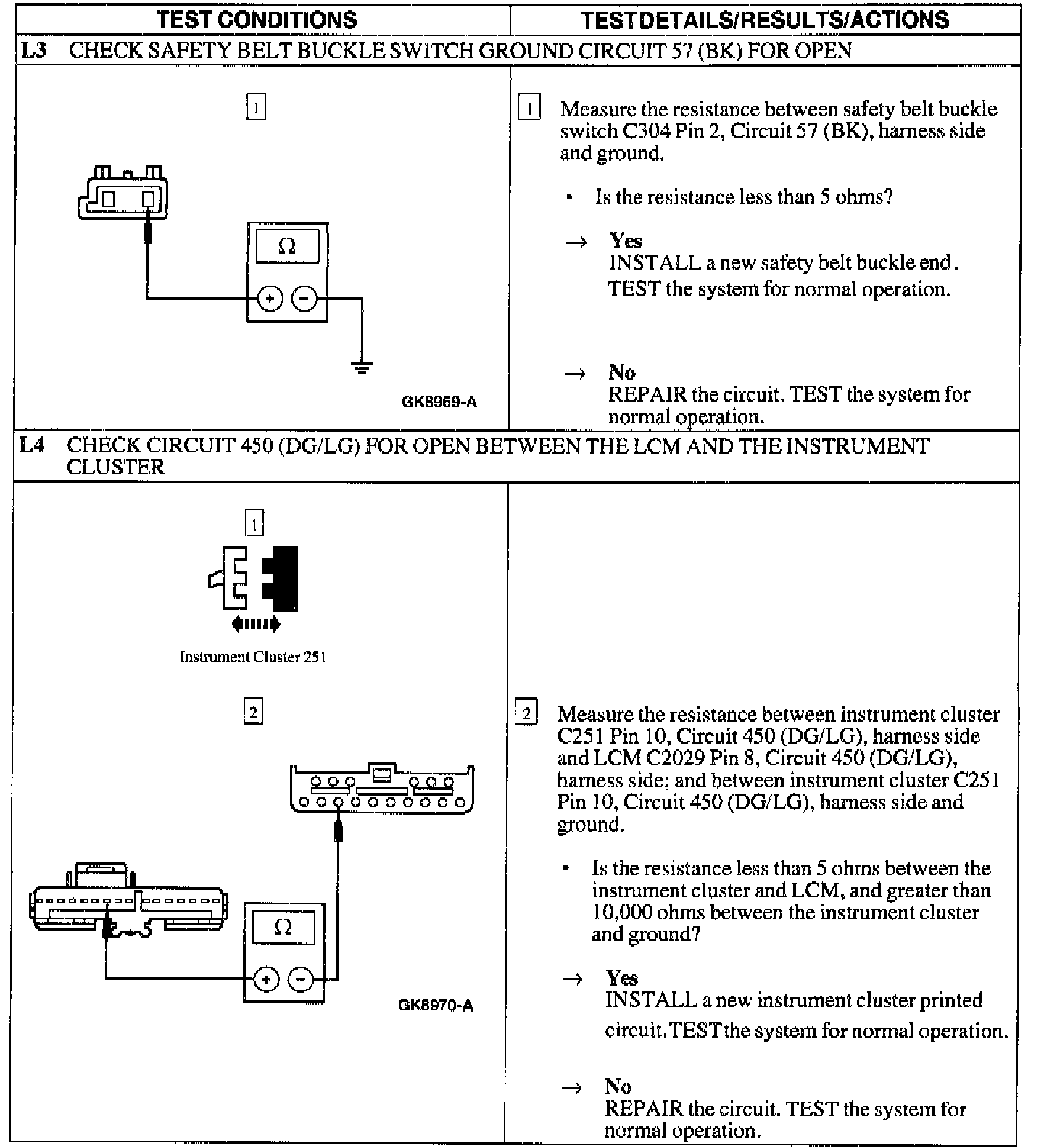

L3 - L4:
