Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Conventional Instrument Cluster) >> J: Brake Warning Never/Always ON

J: Brake Warning Never/Always ON

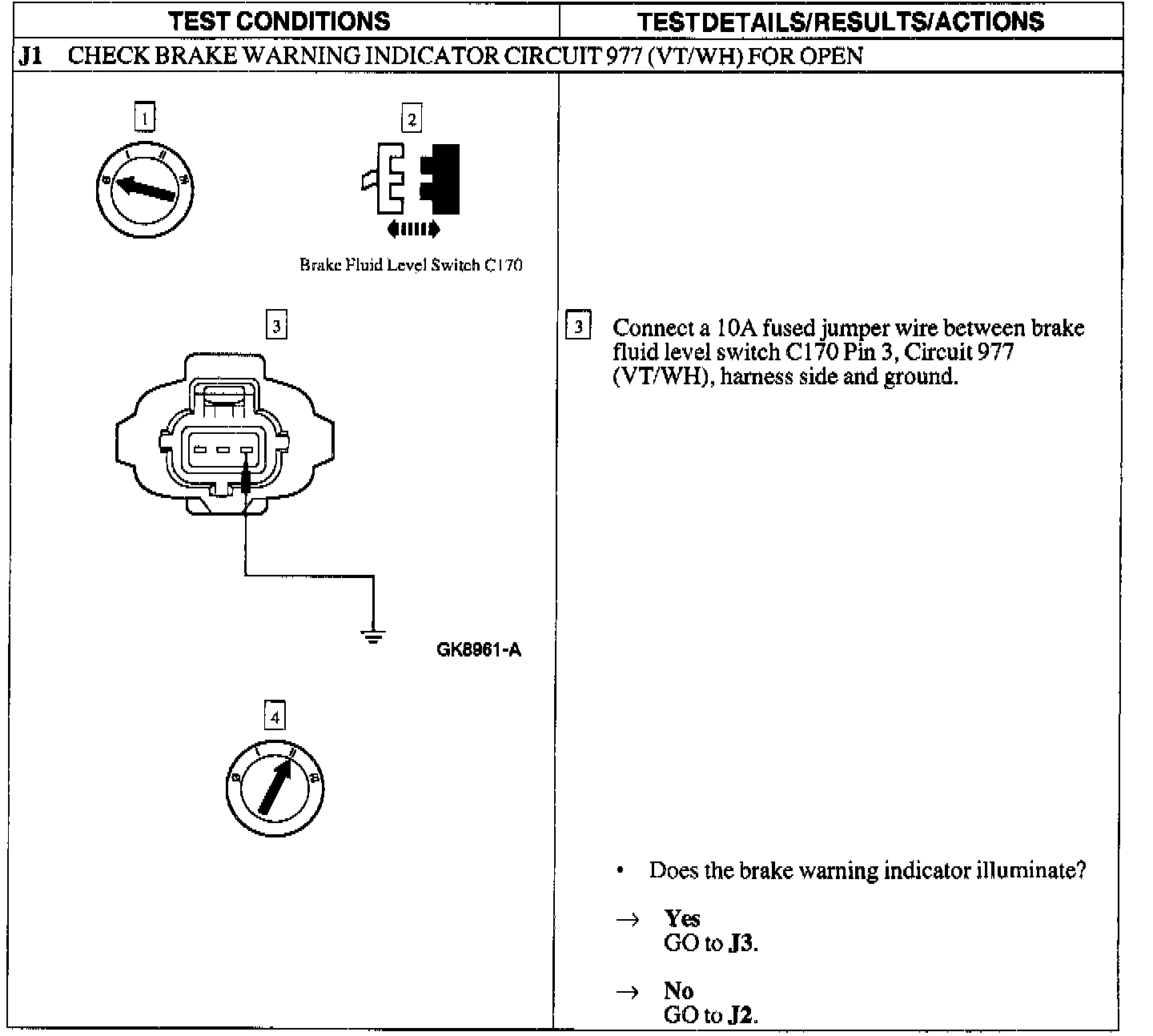

J1:

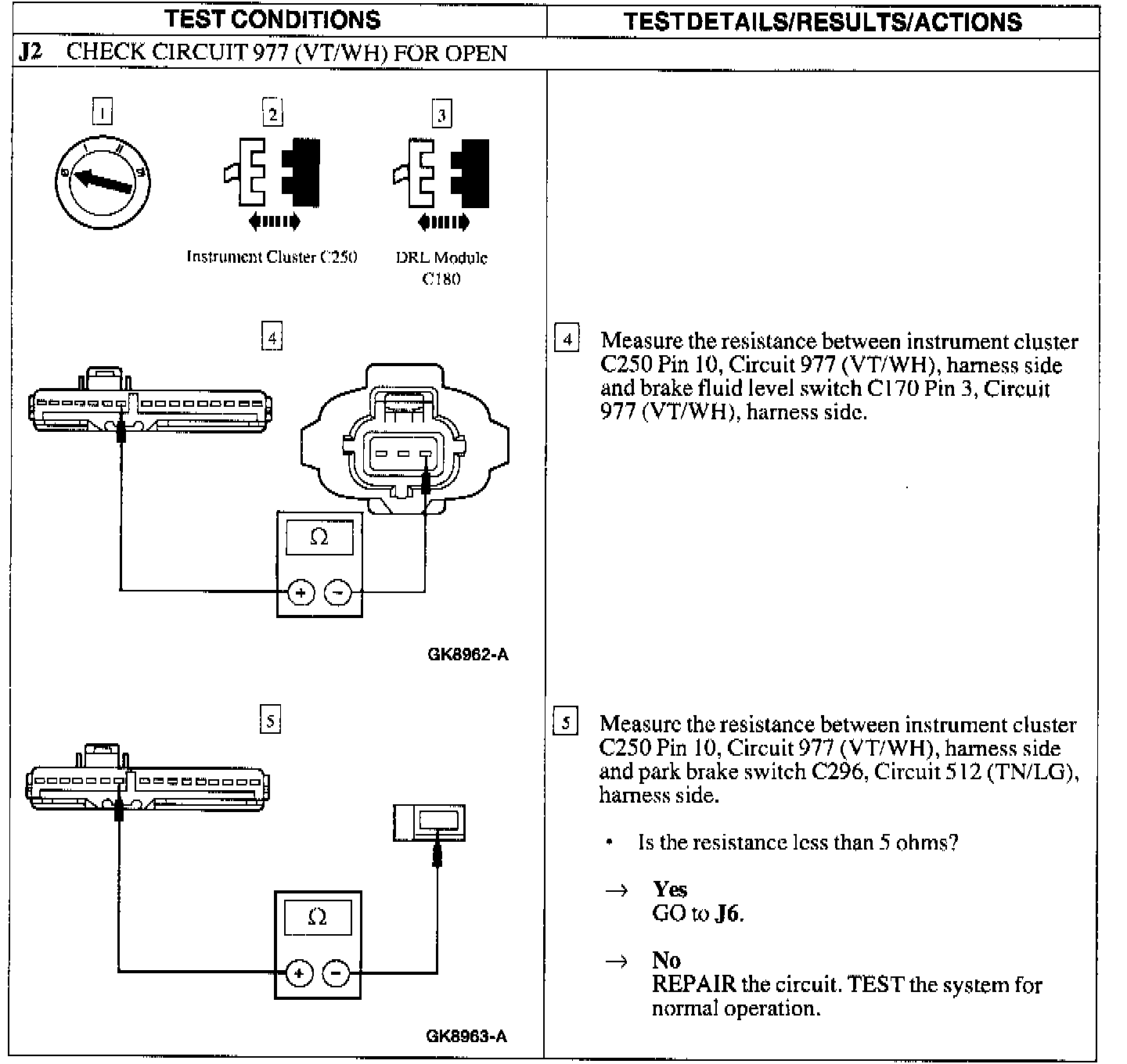

J2:

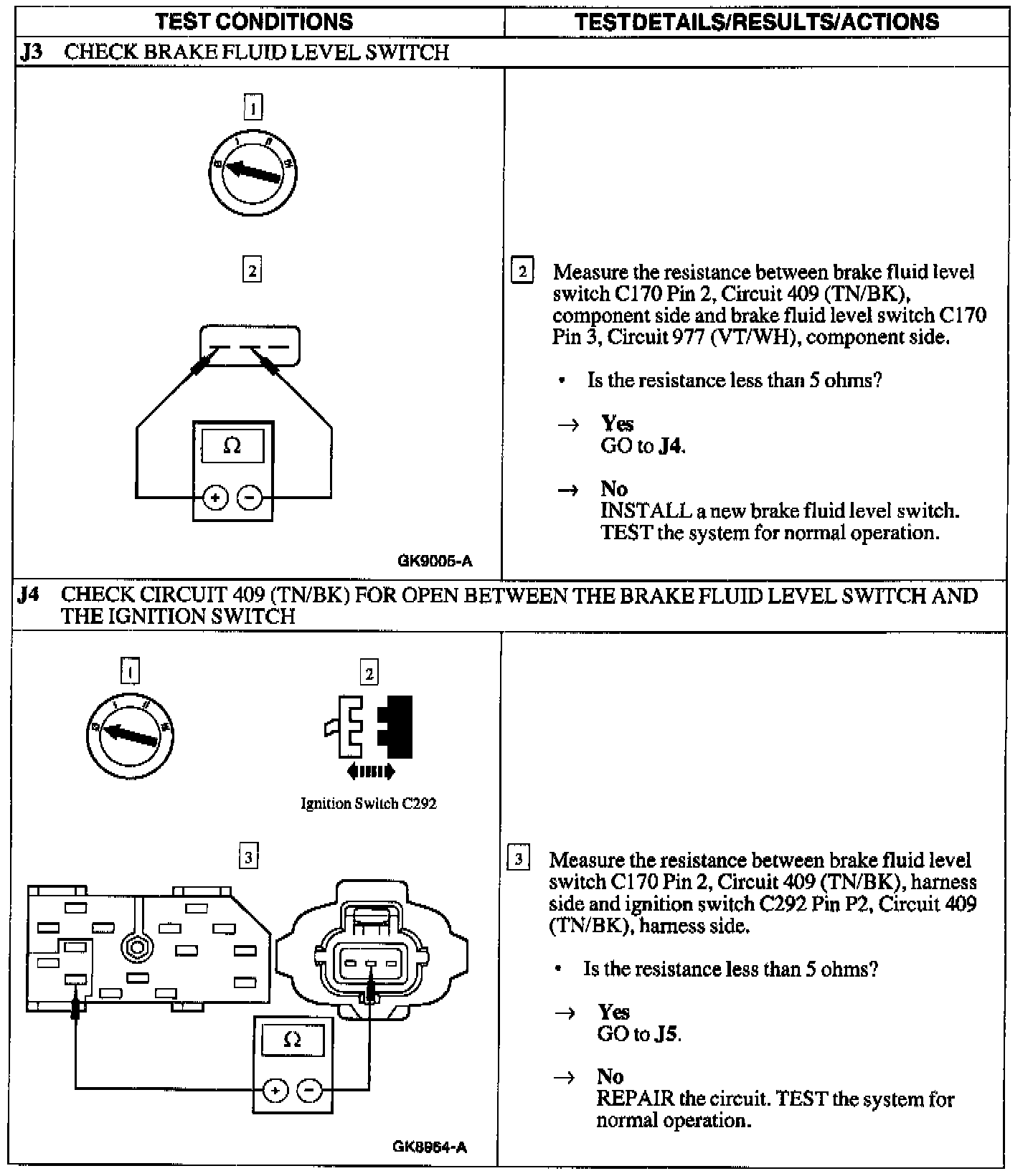

J3 - J4:






J5 - J6:
