Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Conventional Instrument Cluster) >> B: No Communication With LCM/Unable to Self-Test

B: No Communication With LCM/Unable to Self-Test

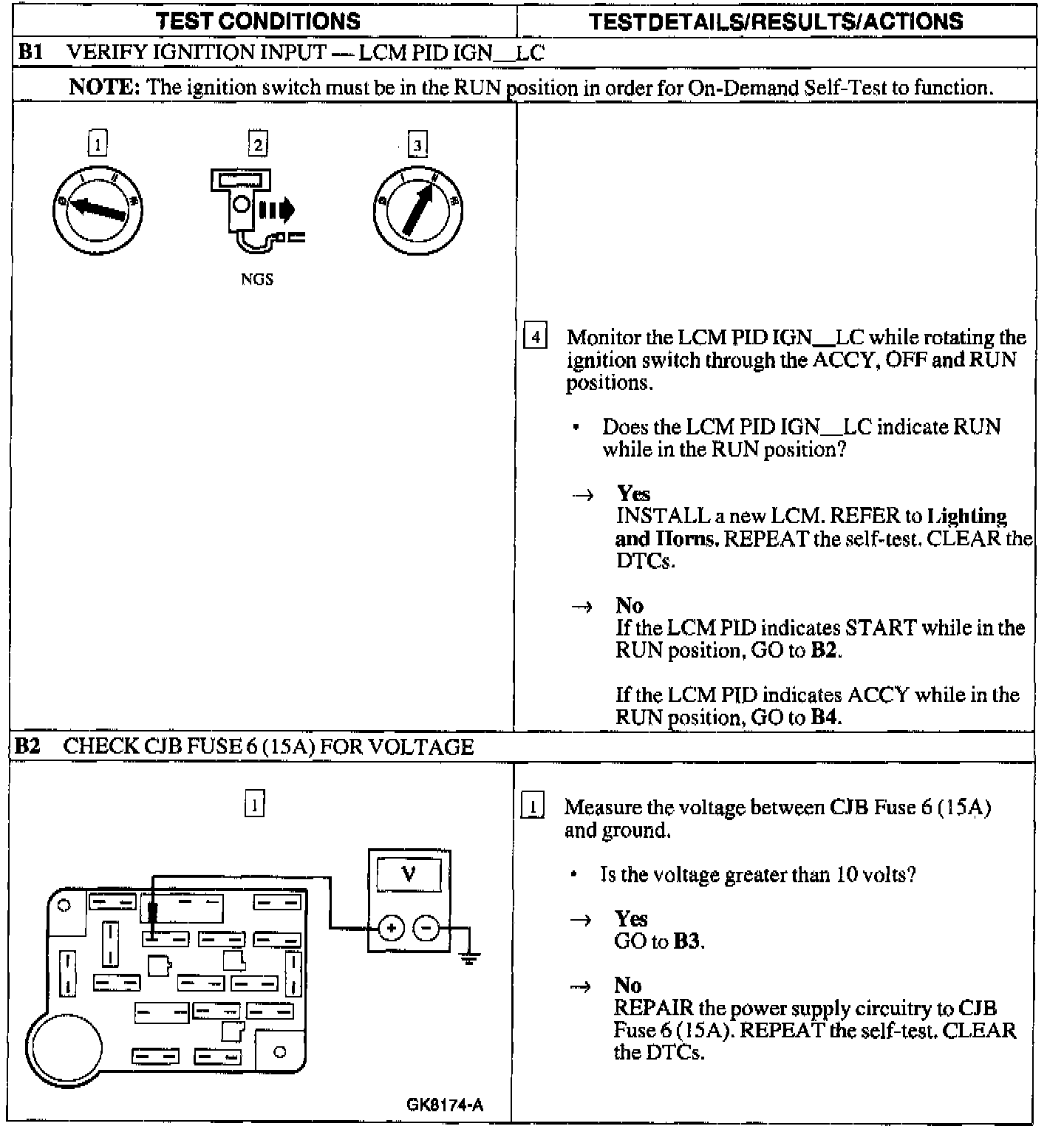

B1 - B2:

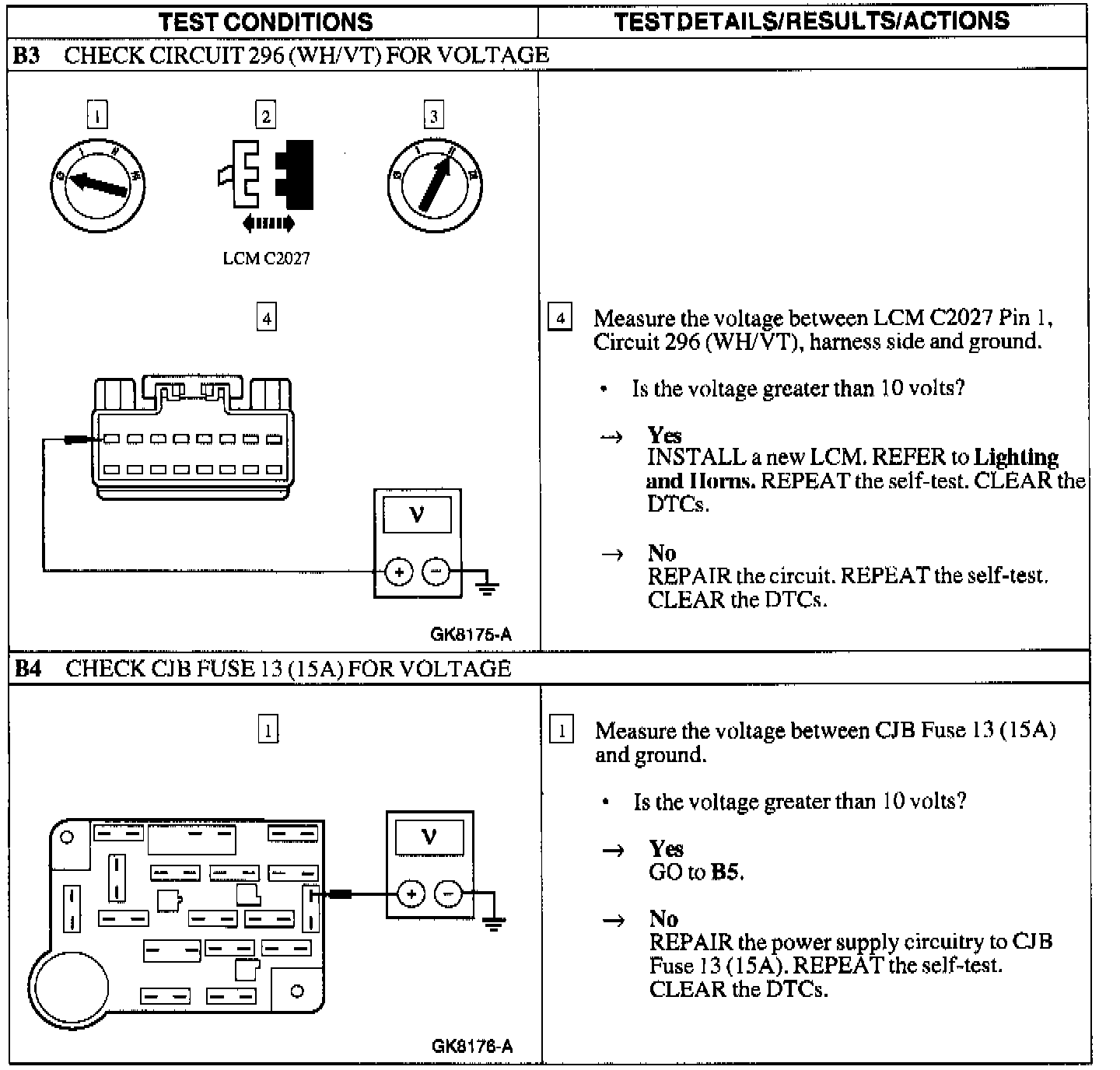

B3 - B4:

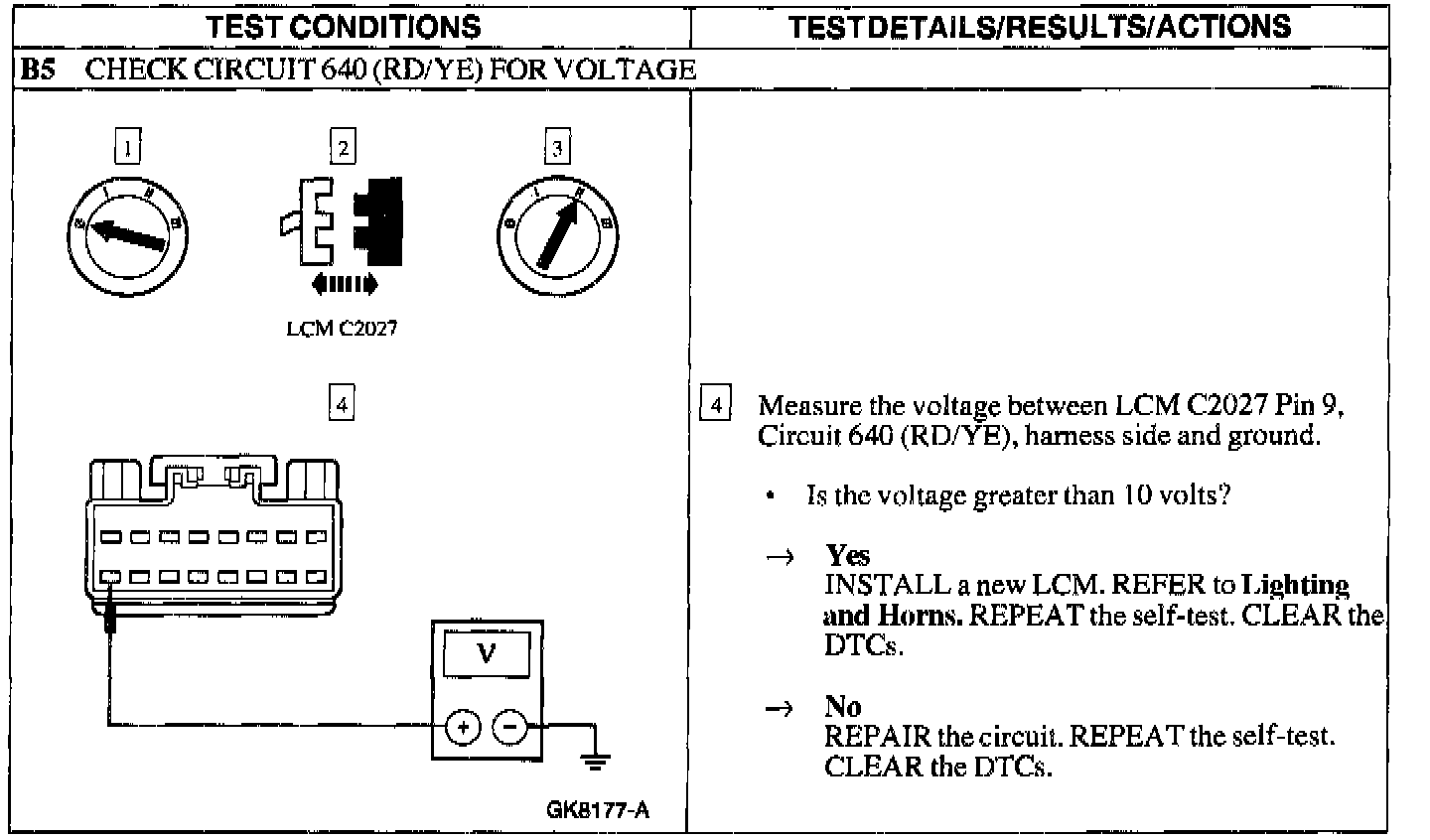

B5:
