With Electronic Instrument Cluster (EIC)

REMOVAL
1. Disconnect the battery ground cable.
2. Set the parking brake.
3. Remove the instrument panel finish panel.

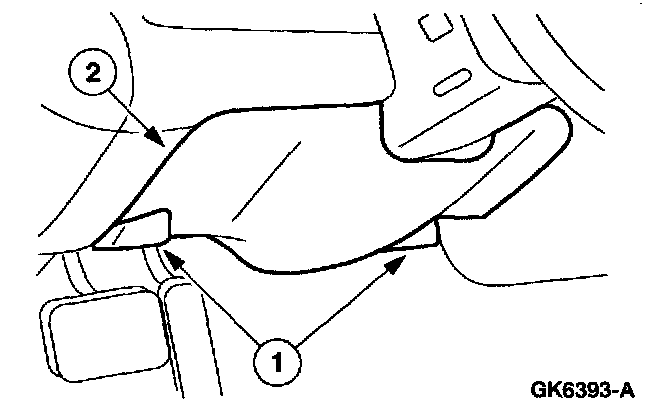

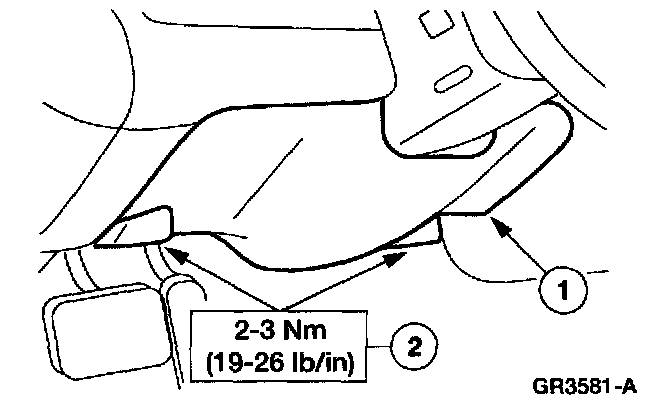

4. Remove the instrument panel lower steering column opening cover.
a. Remove the bolts.
b. Remove the instrument panel lower steering column opening cover.

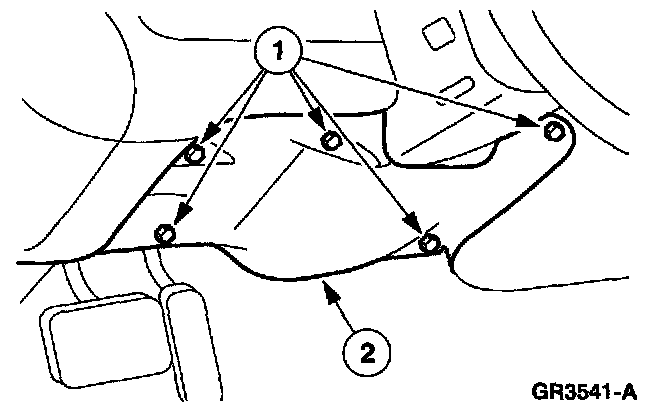

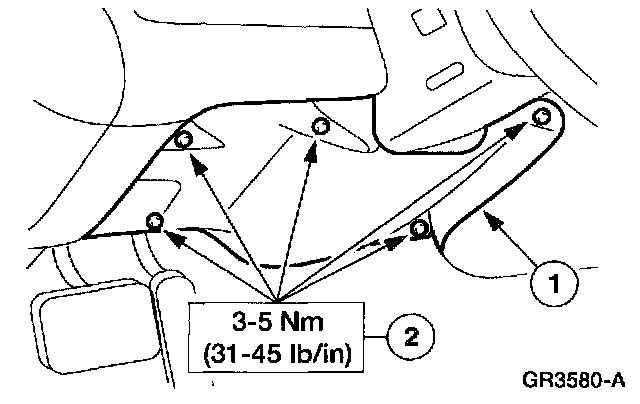

5. Remove the instrument panel lower steering column opening cover reinforcement.
a. Remove the bolts.
b. Remove the instrument panel lower steering column opening cover reinforcement.

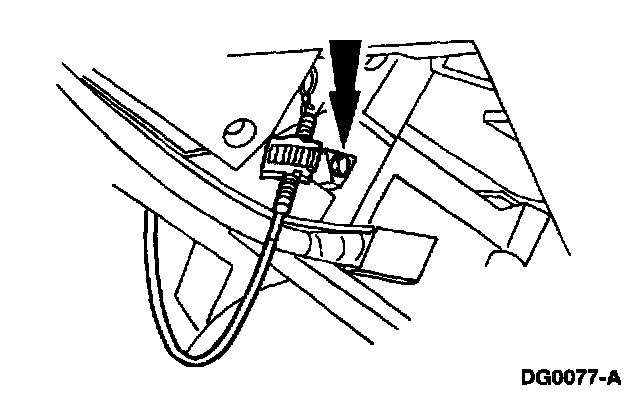

6. Disconnect the transmission shift cable loop from the shift tube hook.

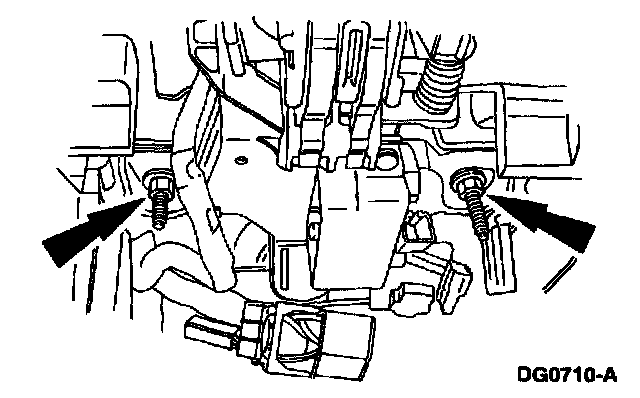

7. Loosen the steering column assembly.

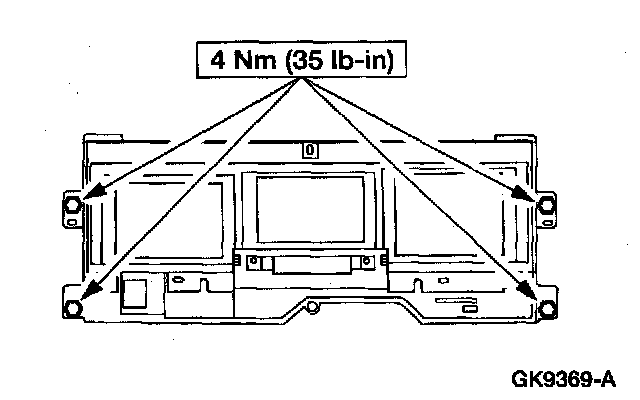

8. Remove the screws.

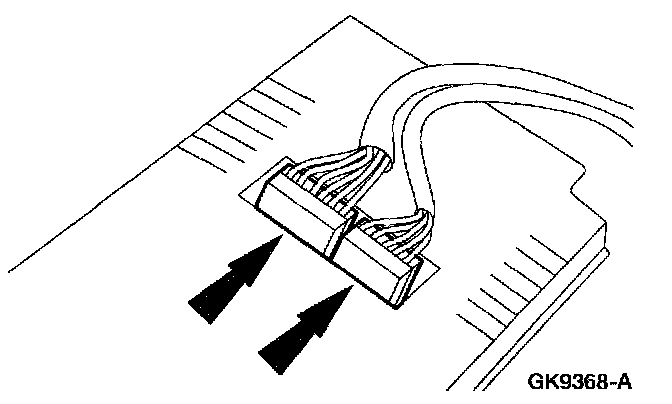

9. Disconnect the electrical connectors and remove the instrument cluster.

INSTALLATION






















1. To install, reverse the removal procedure.
