Compass Calibration Adjustment

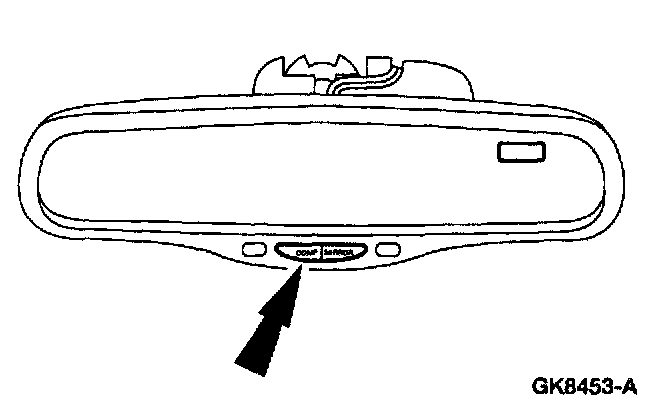

1. Press and hold the COMP button until C appears (six seconds). Release the COMP button.

NOTE: For optimum calibration, drive to an open, level location away from large metallic objects or structures. Switch off all non-essential electrical accessories (rear window defrost, heater, A/C, map lamps and wipers) and make sure all doors are shut.

2. Drive the vehicle at less than 8 km/h (5 mph) a continuous circle until the display turns off.
3. If the C message does not turn off within five circles, demagnetize the vehicle.
