Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> R: Blower Motor Does Not Operate Correctly-Manual A/C

R: Blower Motor Does Not Operate Correctly-Manual A/C

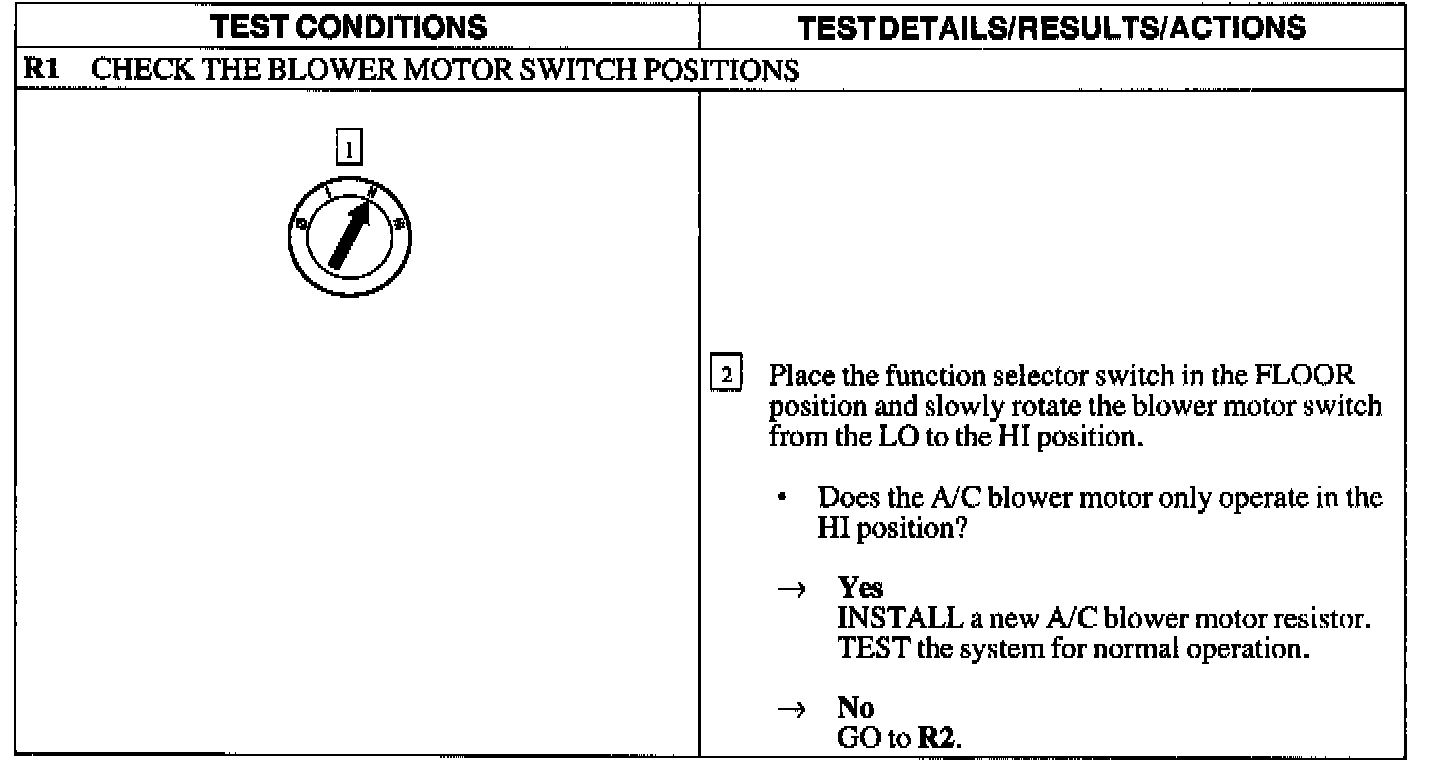

R1:

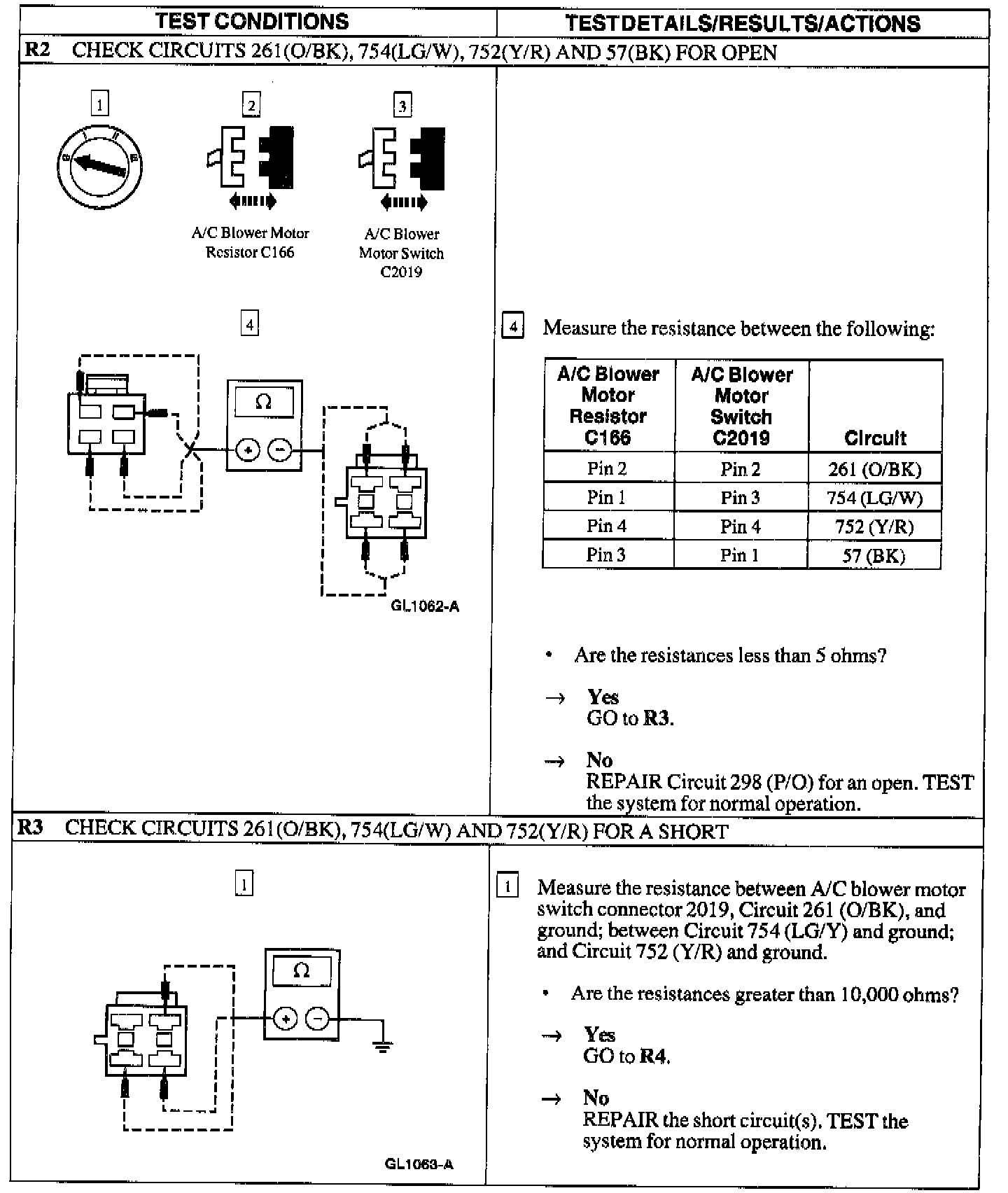

R2 - R3:

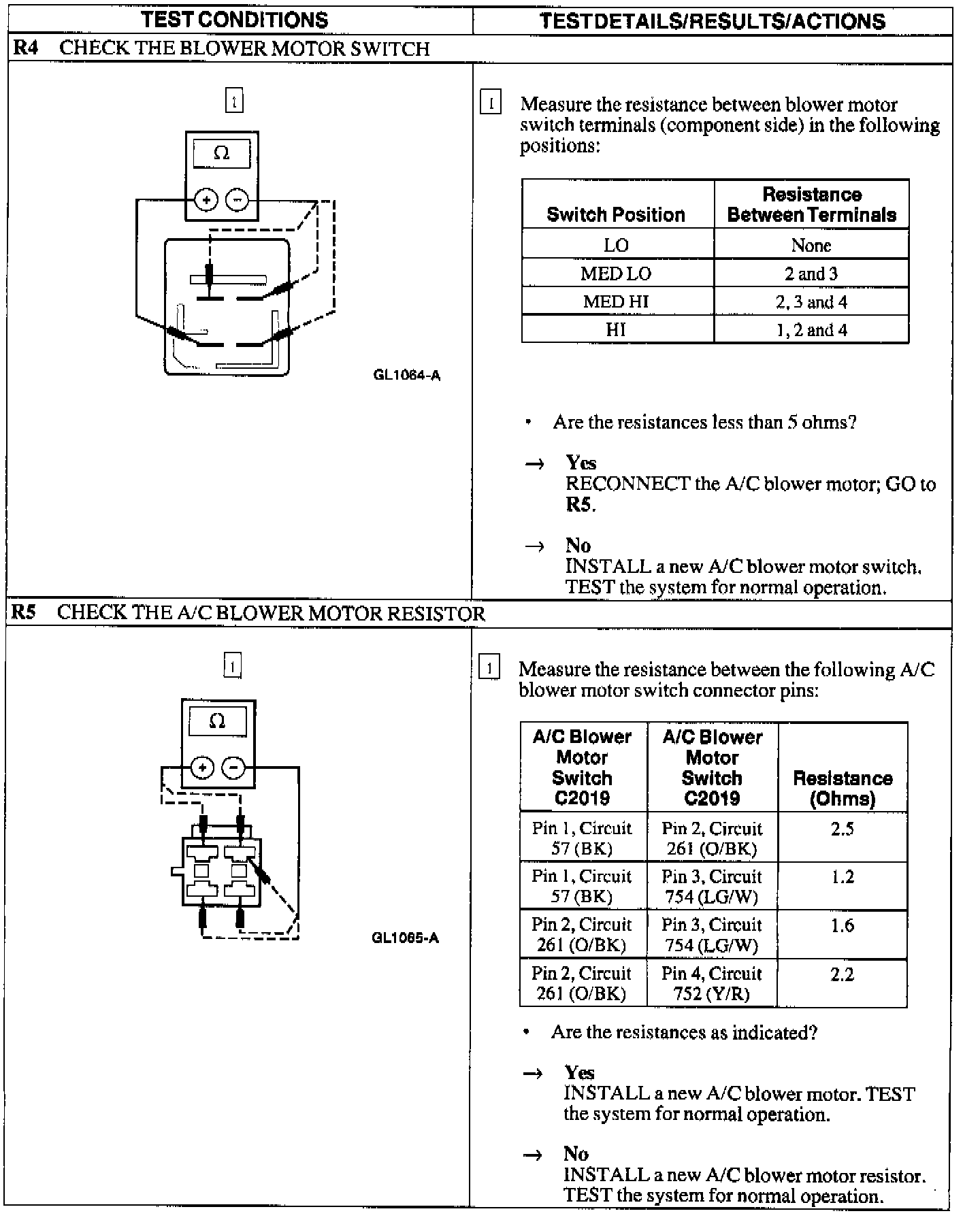

R4 - R5:
