Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> P: No Operation In All Temperature Settings-Manual A/C

P: No Operation In All Temperature Settings-Manual A/C

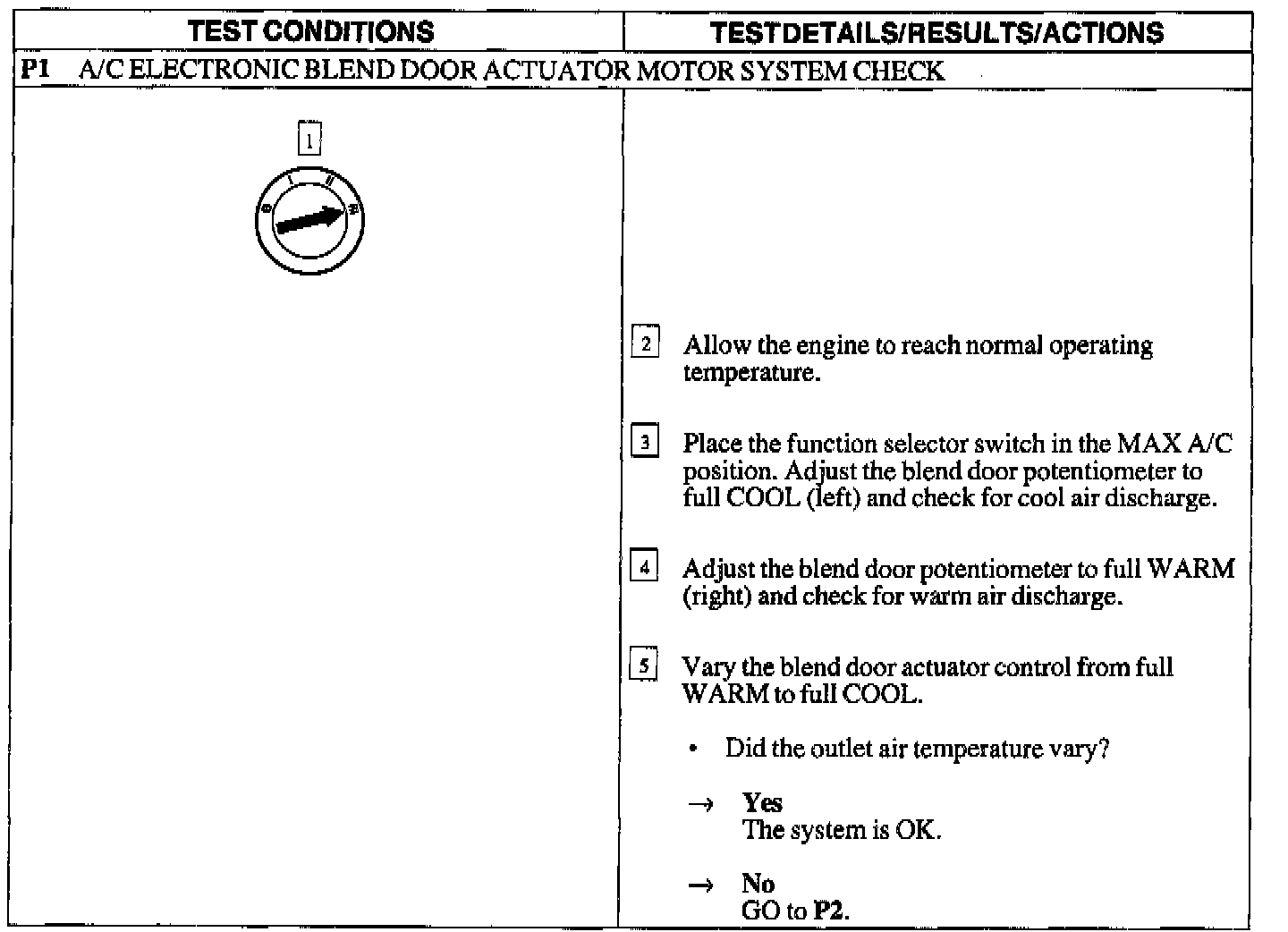

P1:

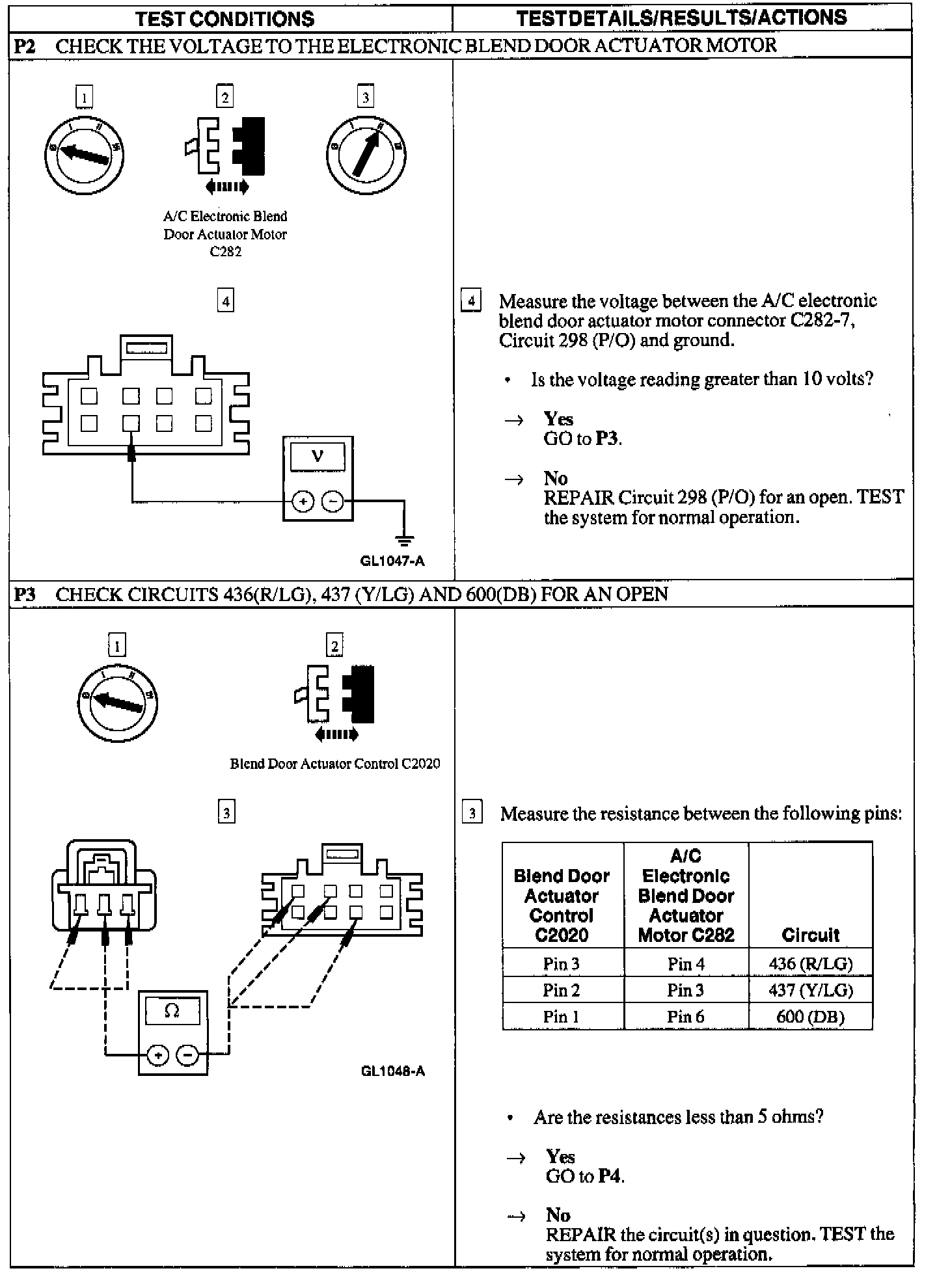

P2 - P3:

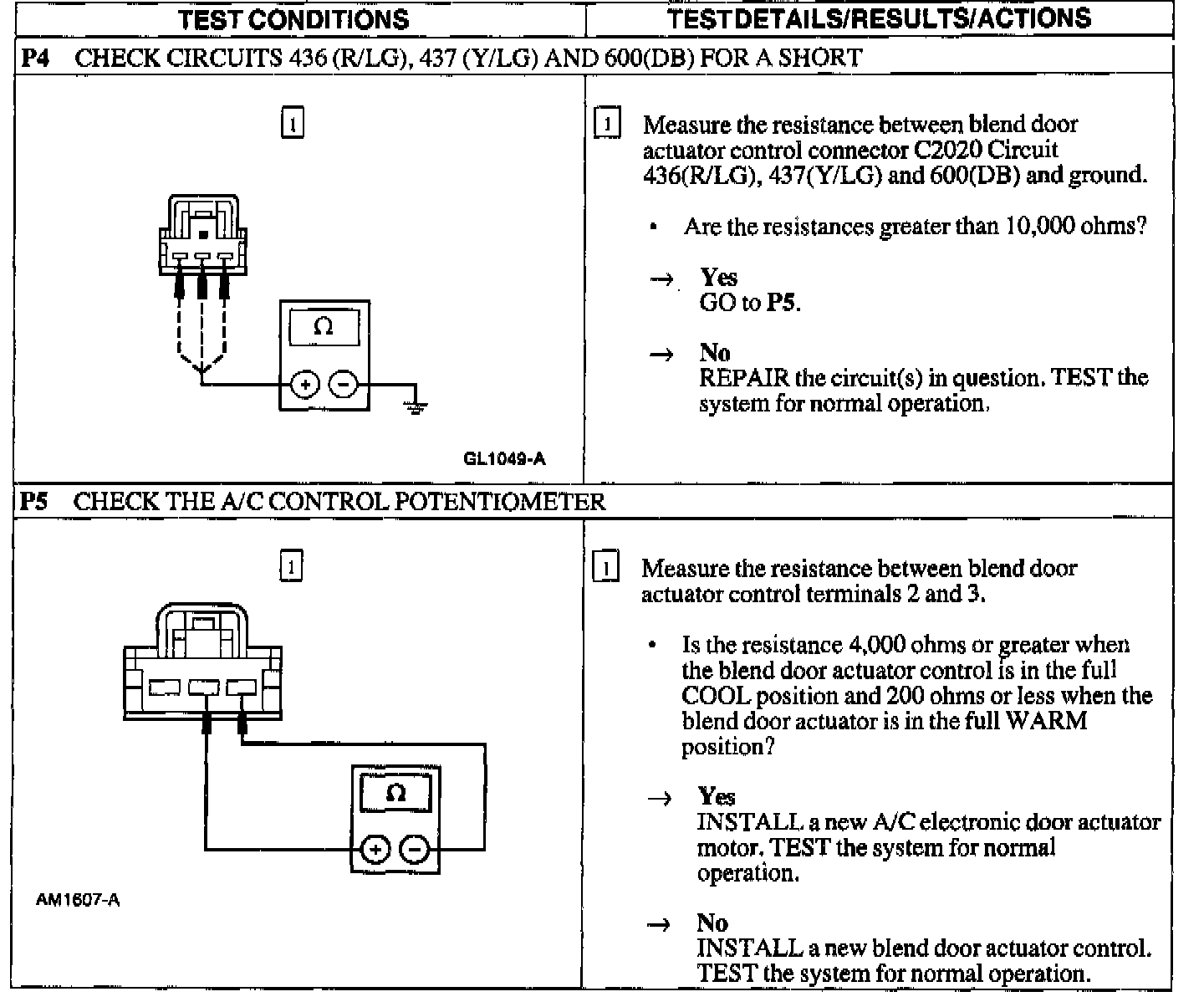

P4 - P5:
