Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> G: Incorrect/Erratic Airflow From Outlets(s)-EATC

G: Incorrect/Erratic Airflow From Outlets(s)-EATC

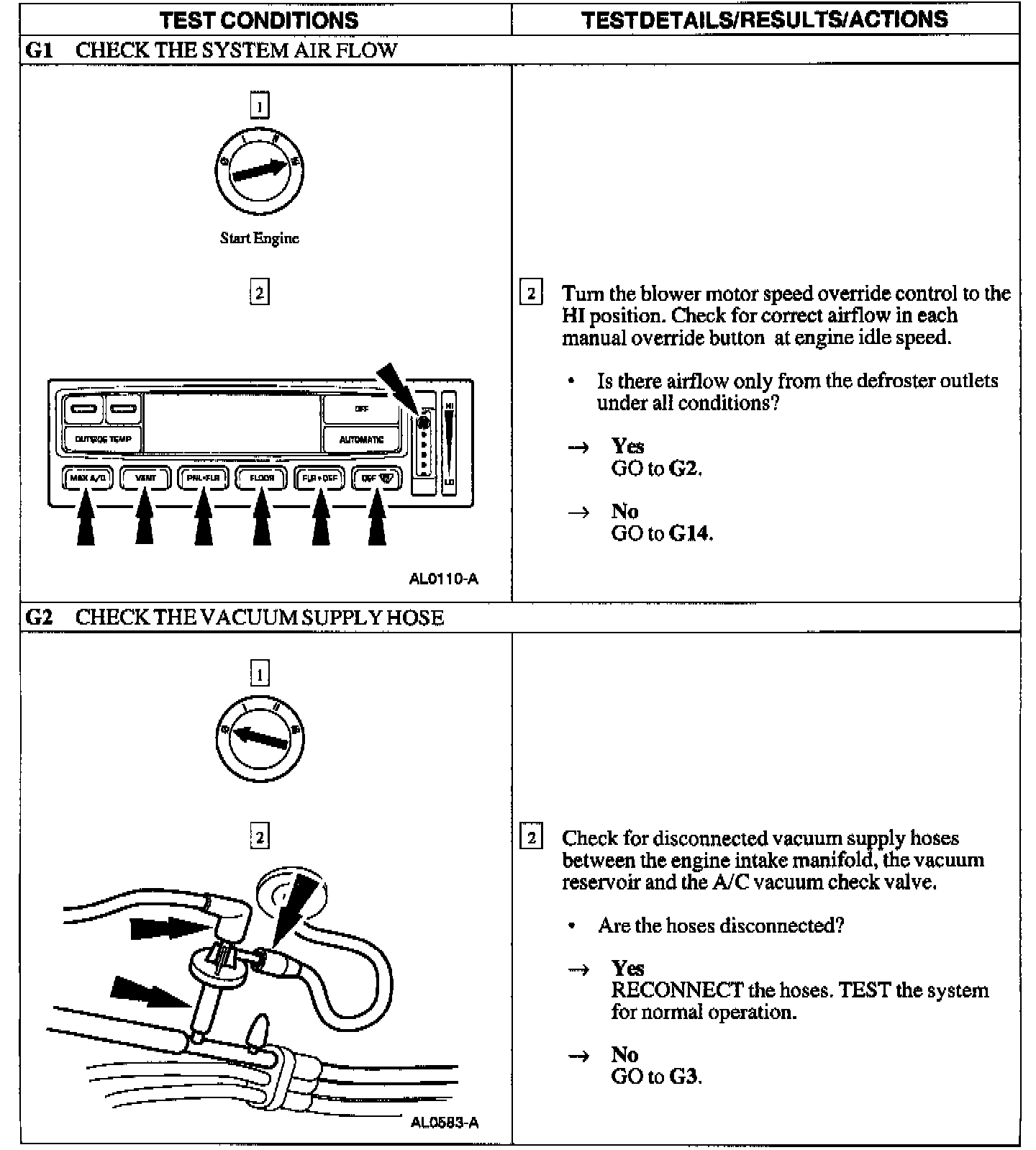

G1 - G2:

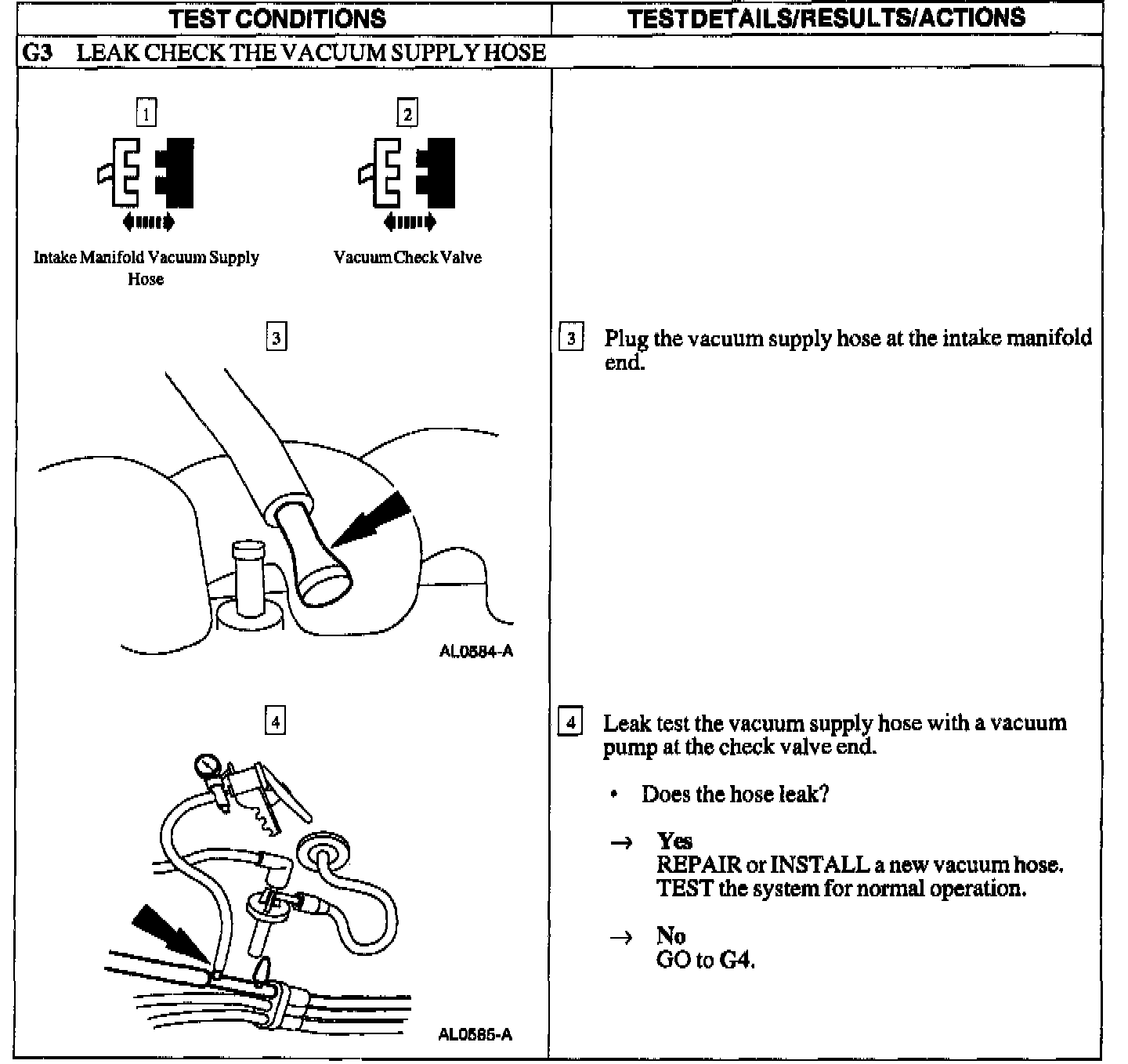

G3:

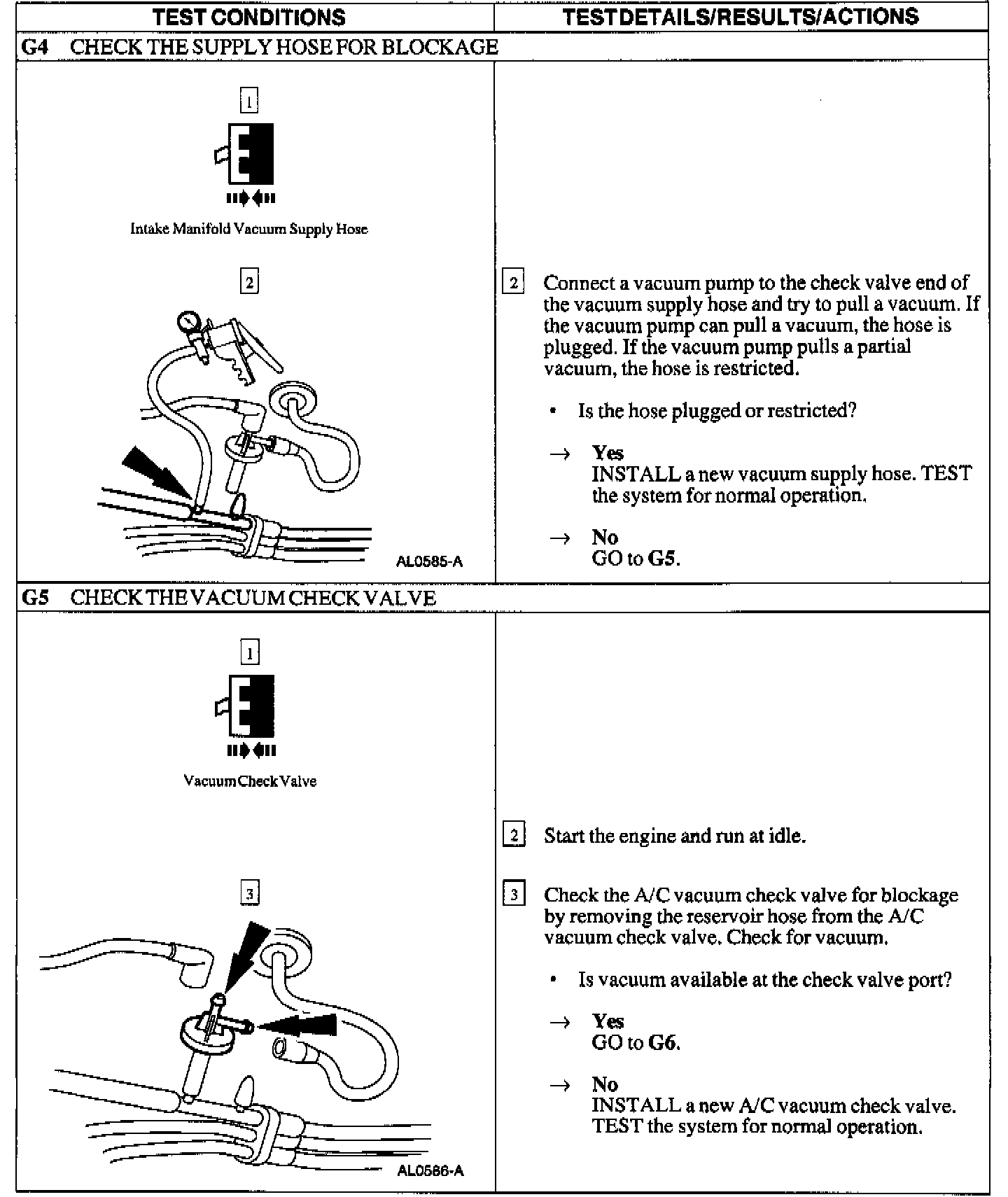

G4 - G5:

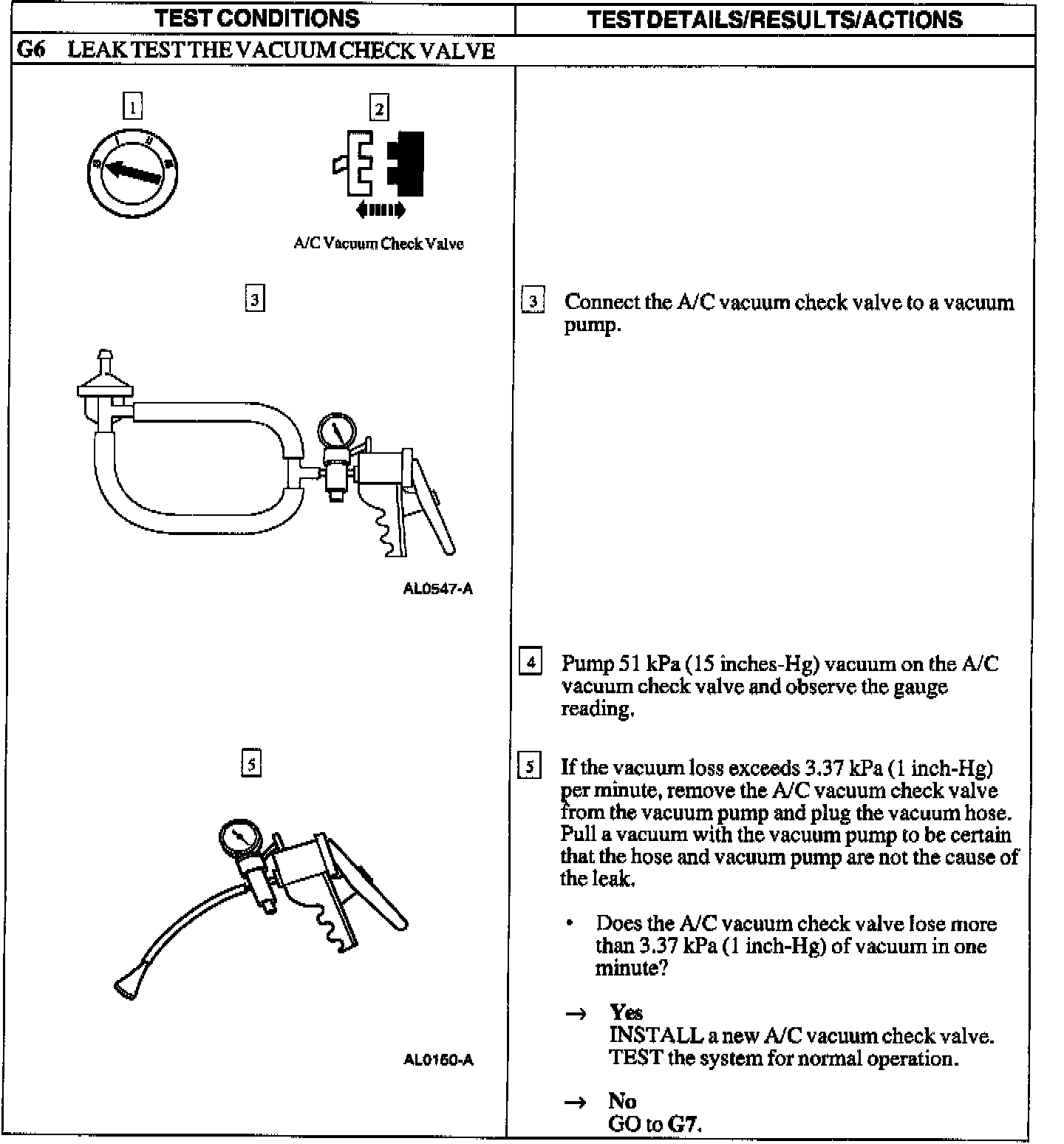

G6:

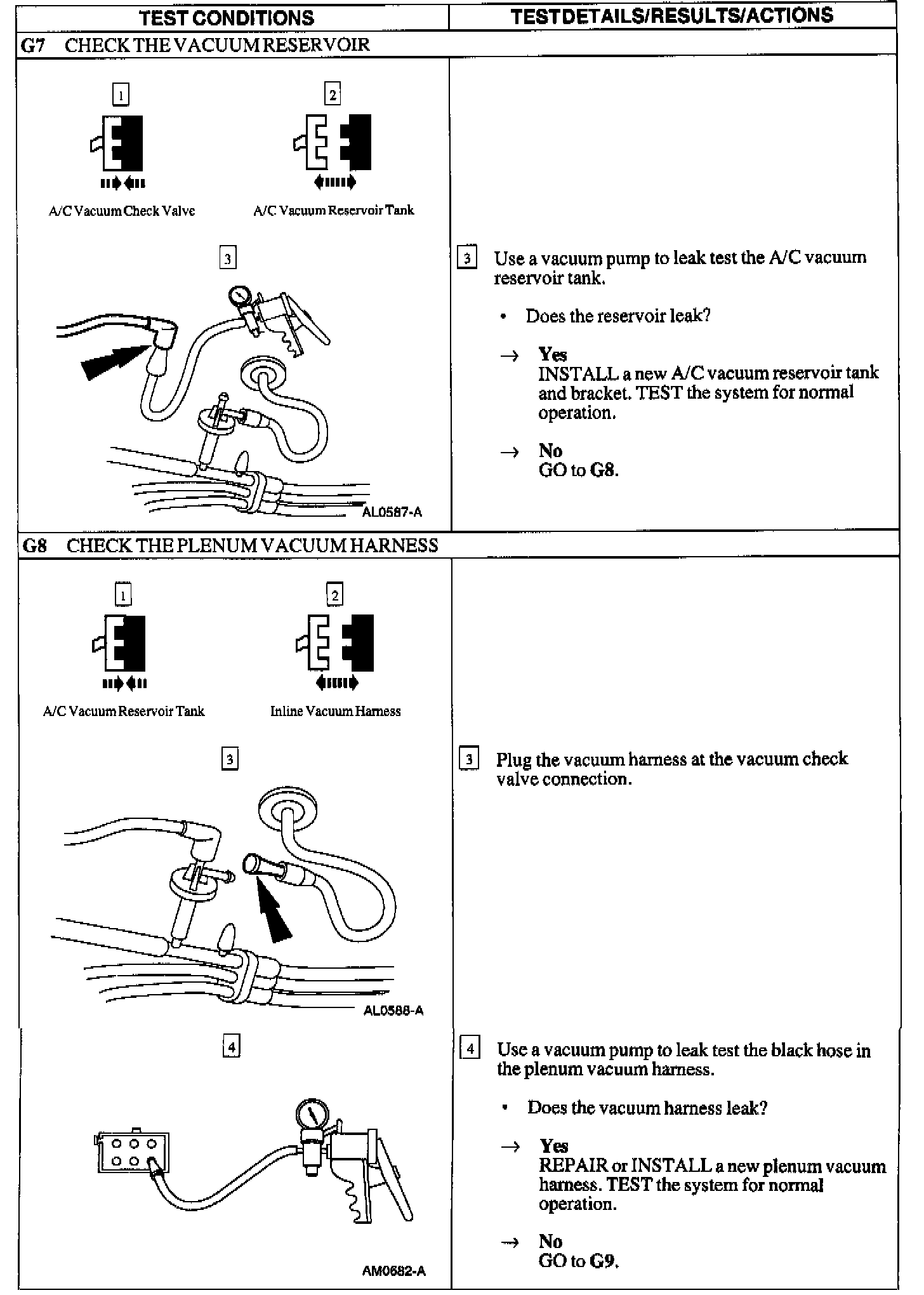

G7 - G8:

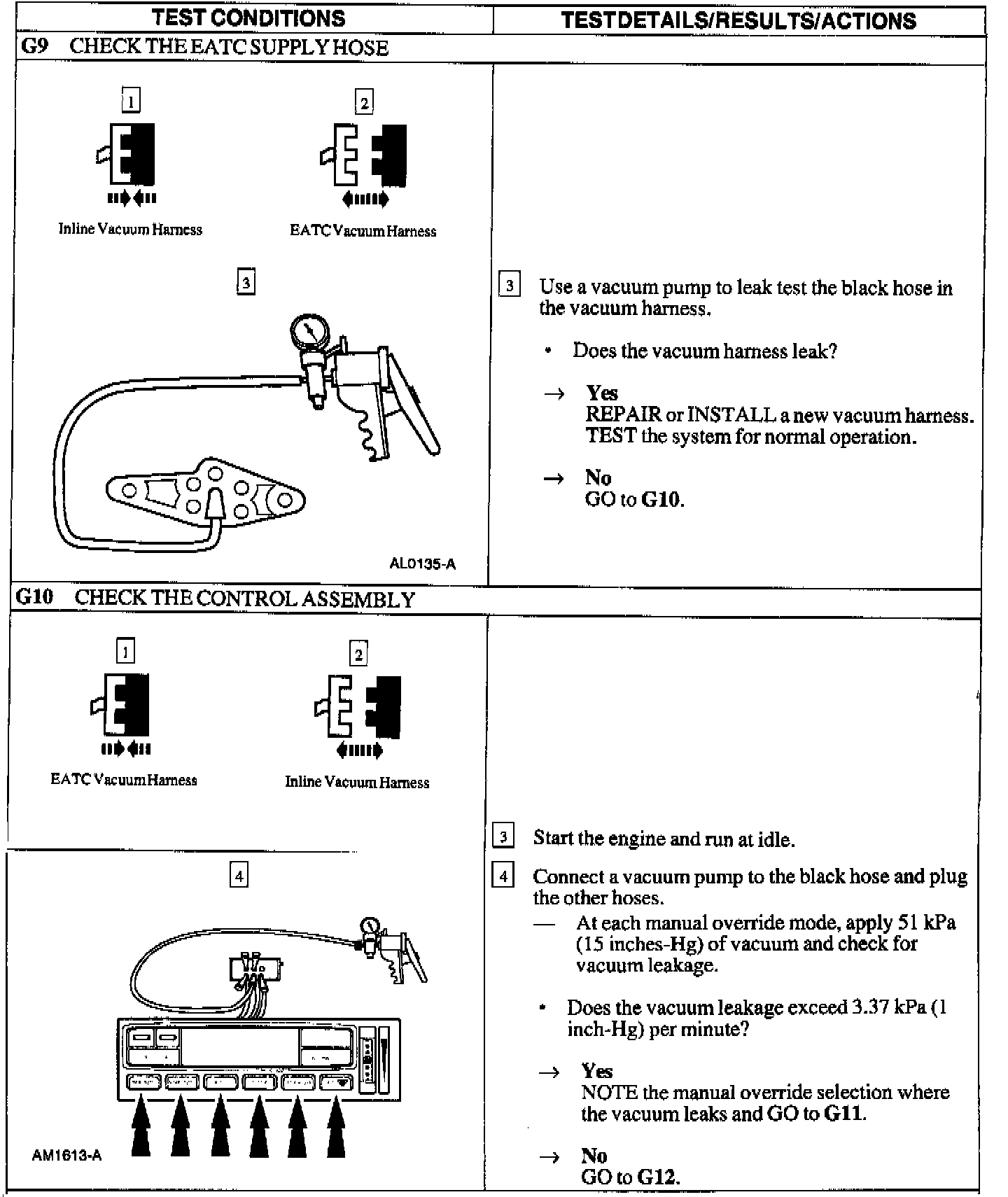

G9 - G10:

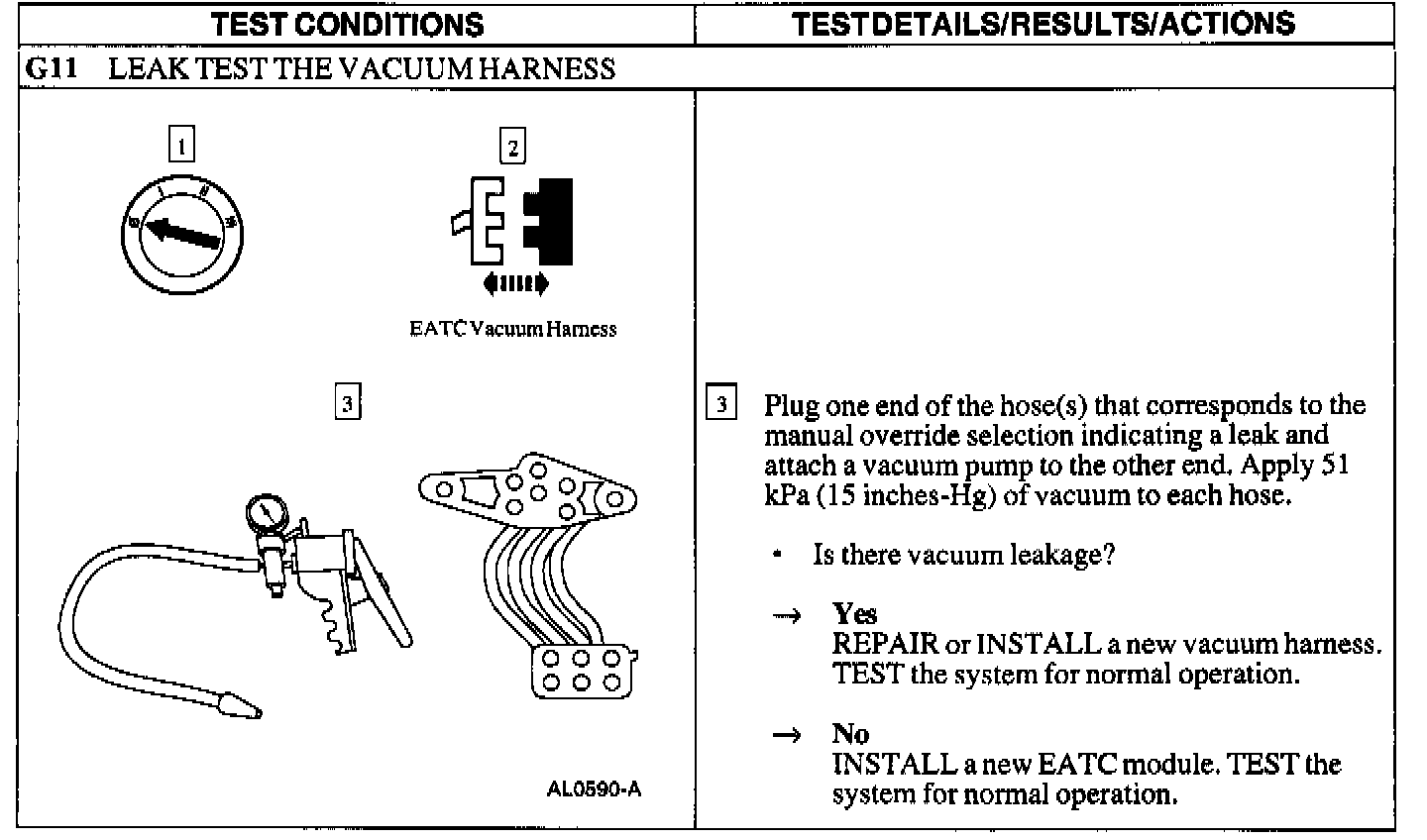

G11:






G12:

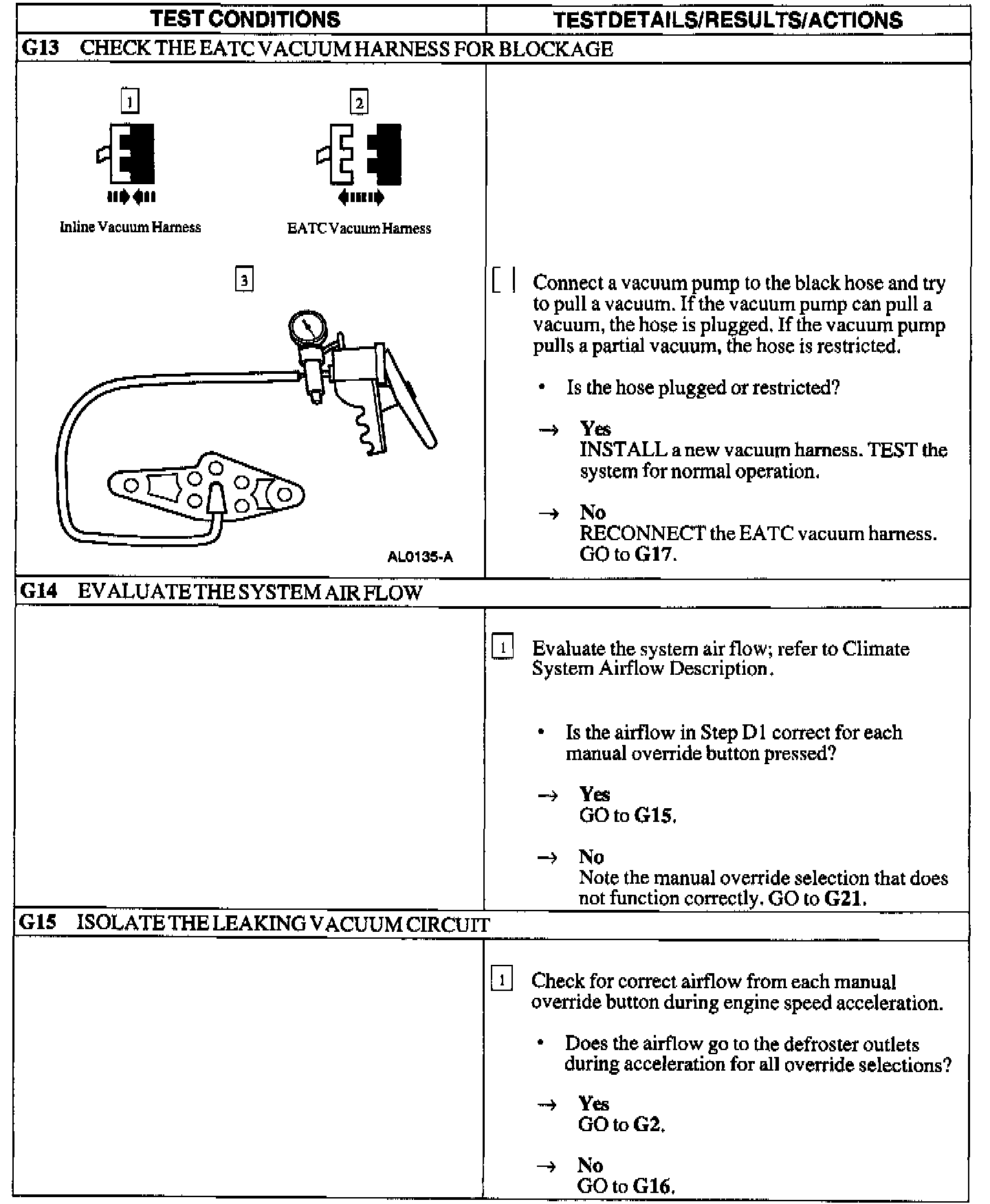

G13 - G15:

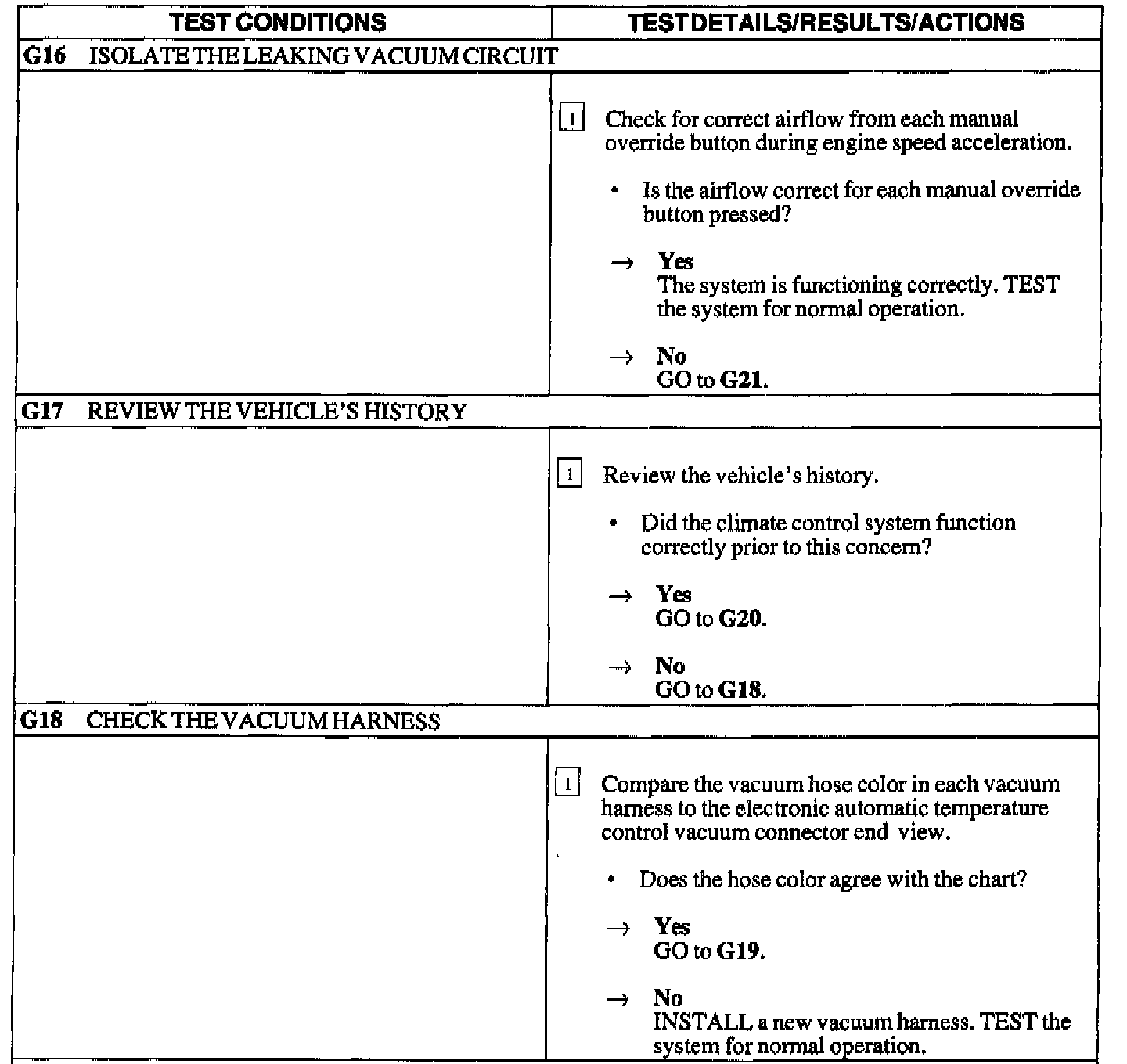

G16 - G18:

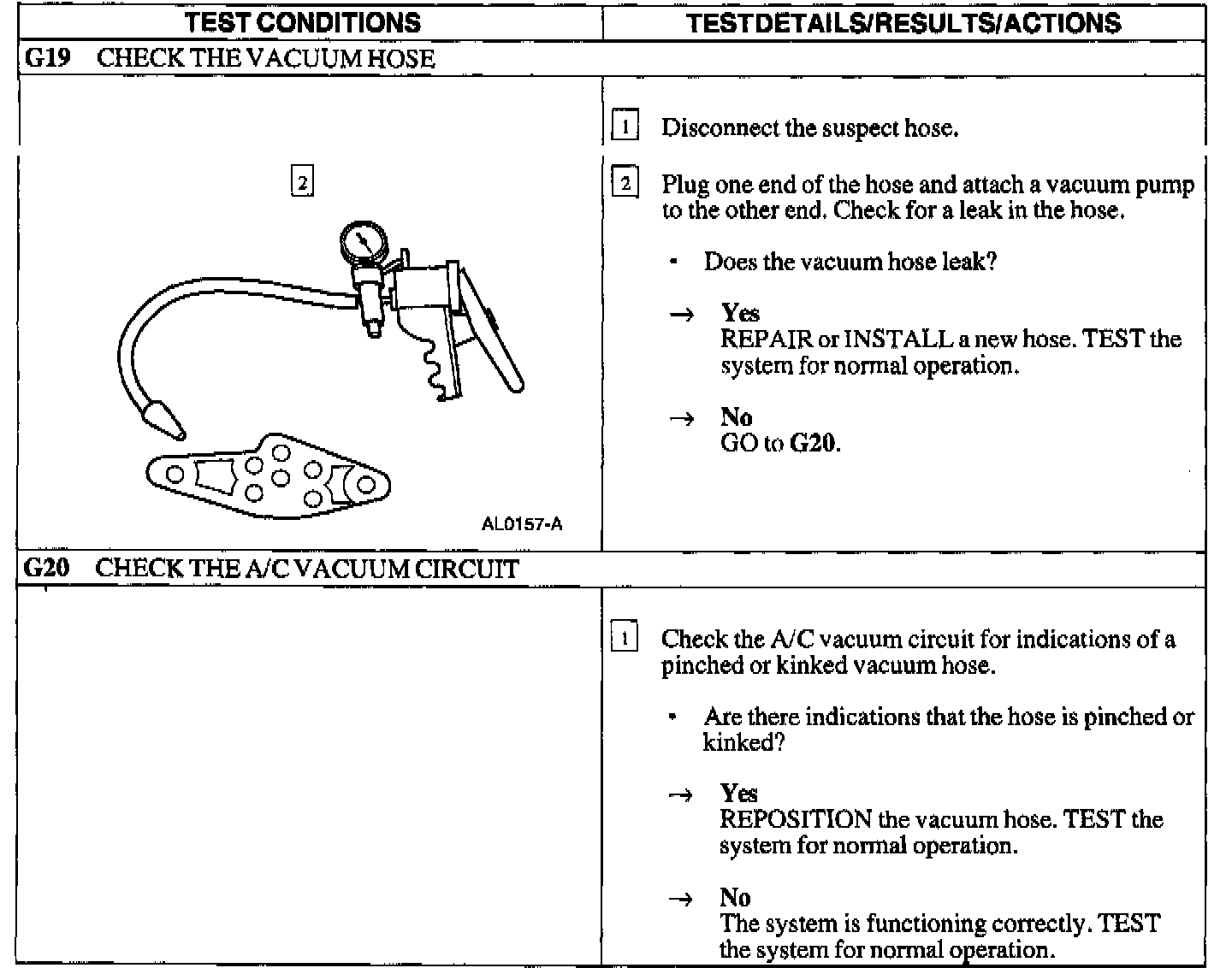

G19 - G20:

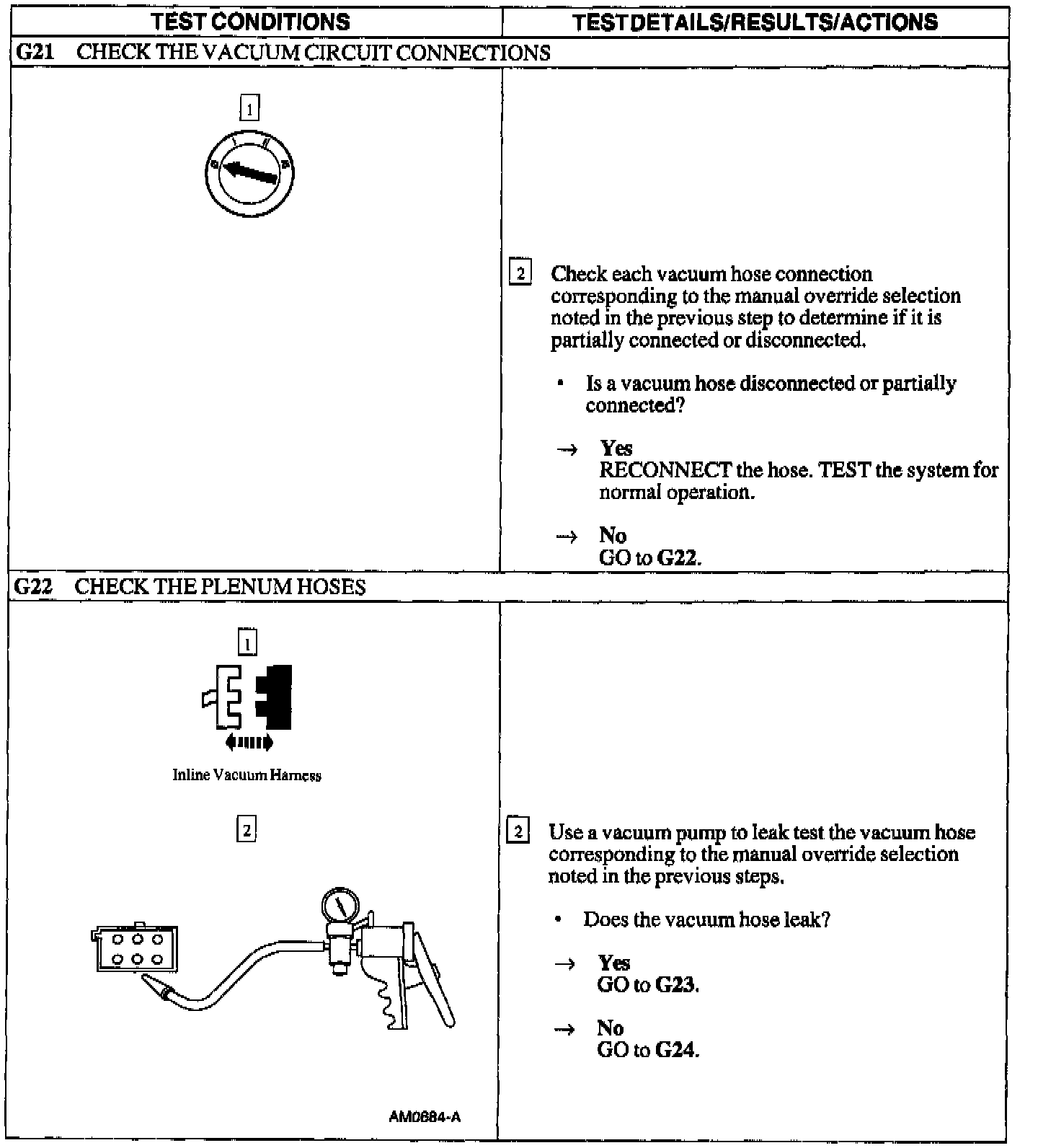

G21 - G22:






G23 - G24:

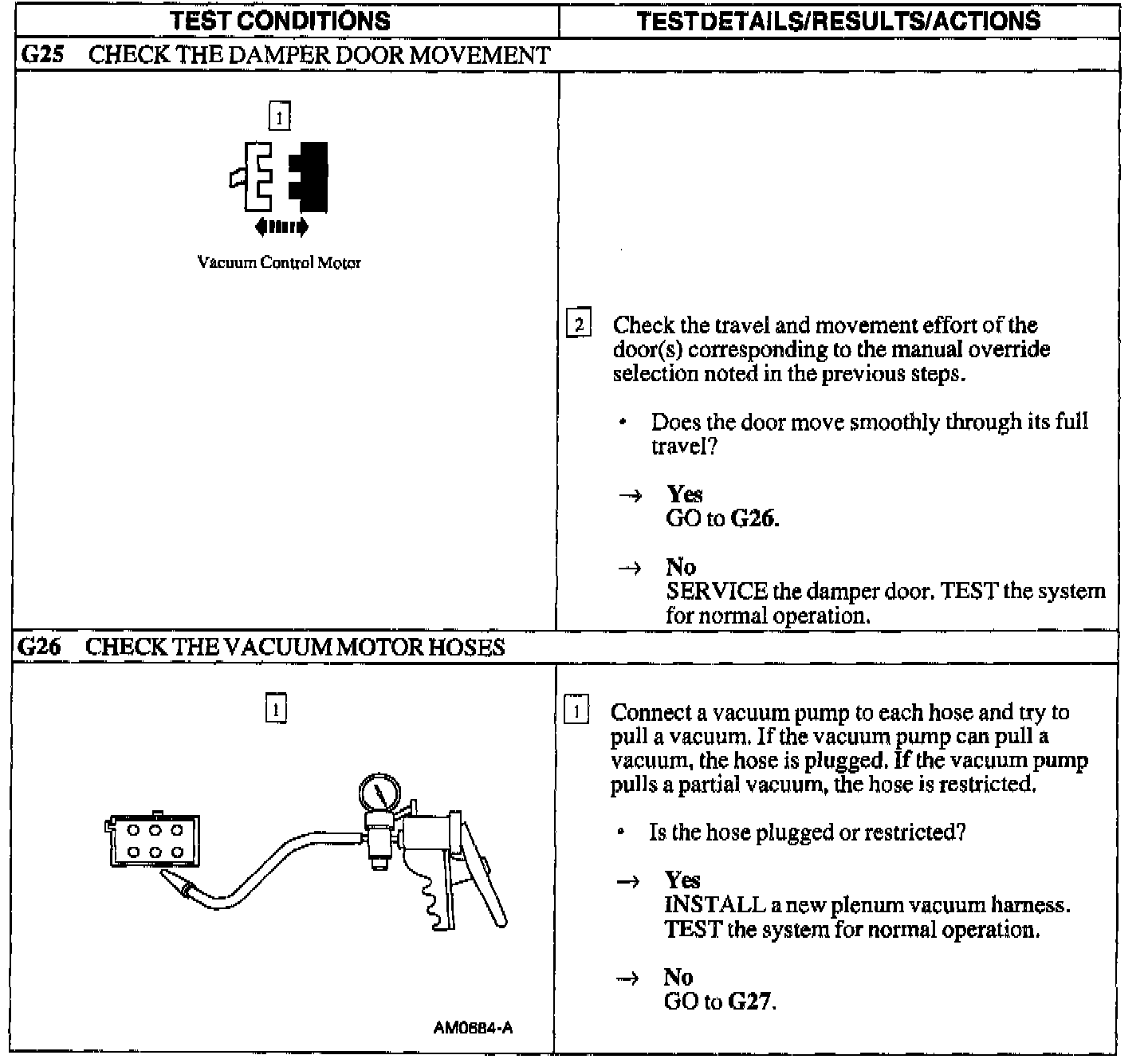

G25 - G26:

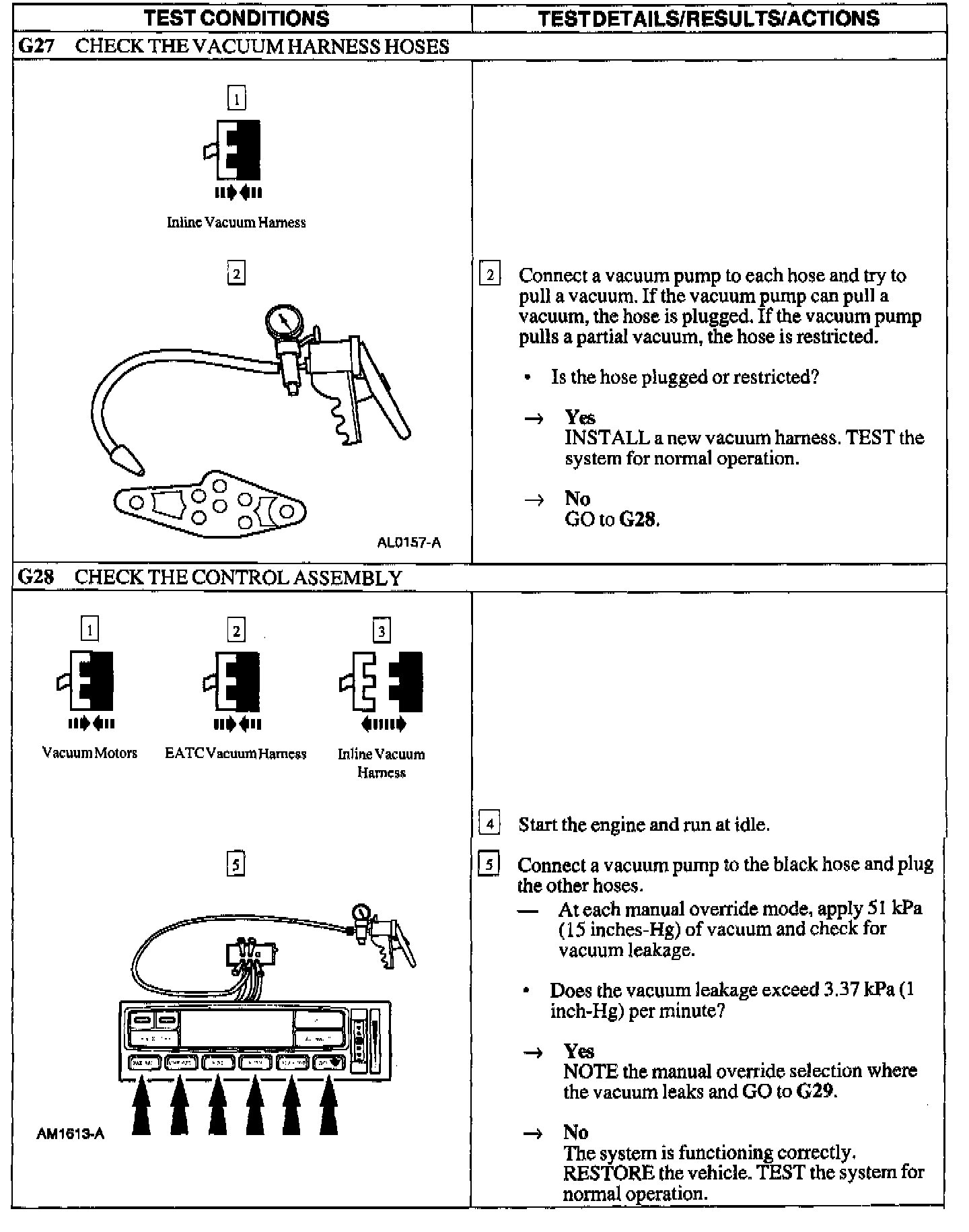

G27 - G28:

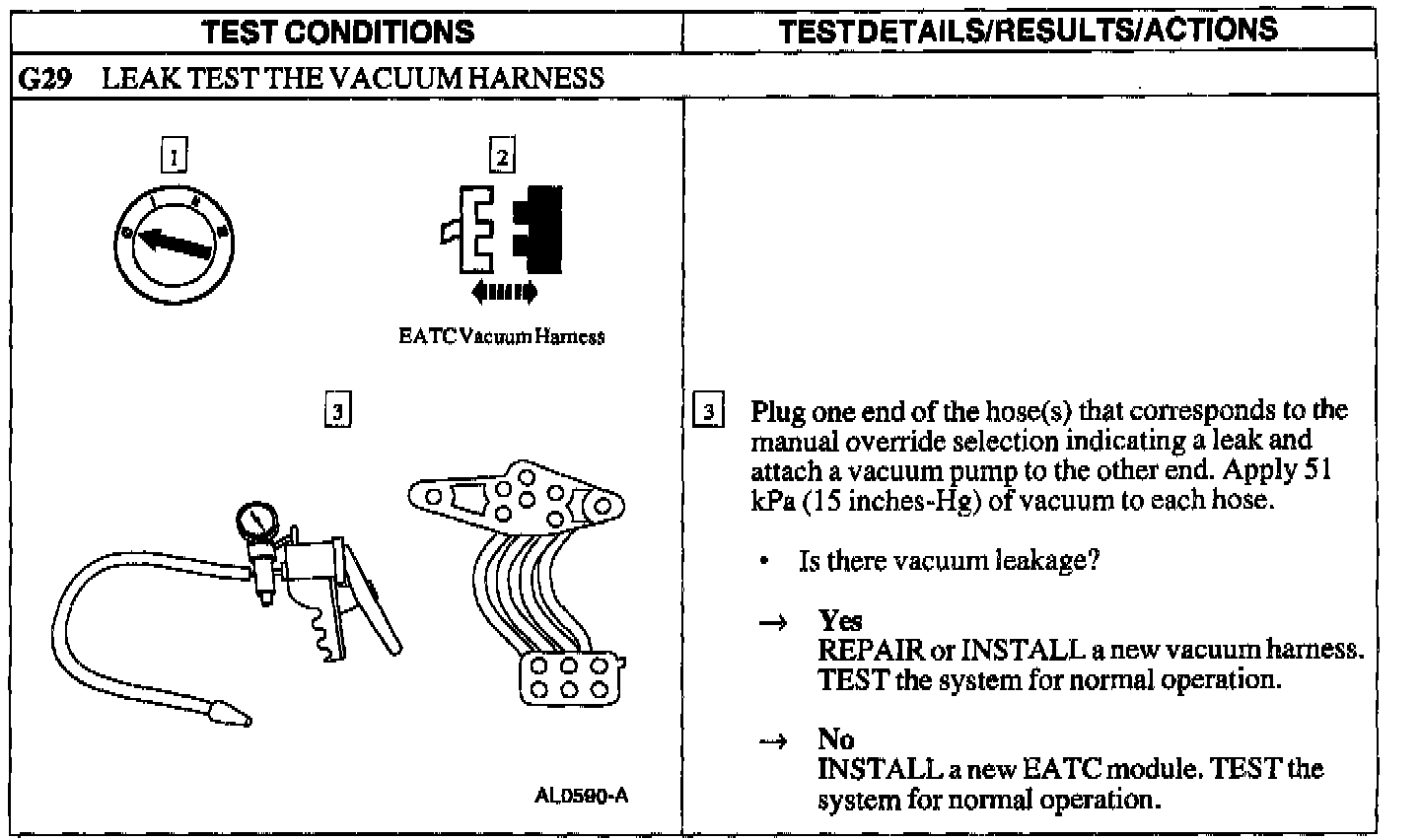

G29:
