A/C High Pressure Safety Valve
REMOVAL1. Recover the refrigerant.

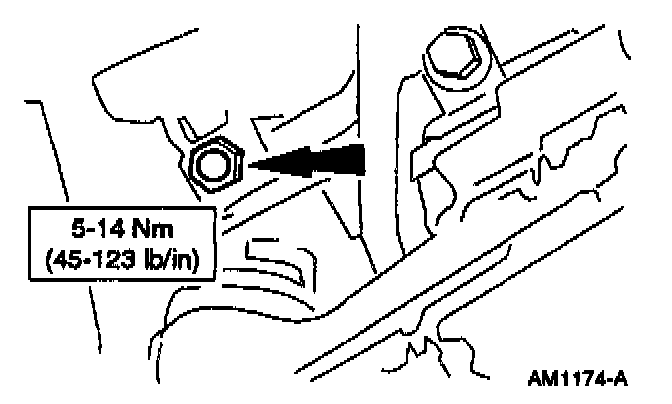

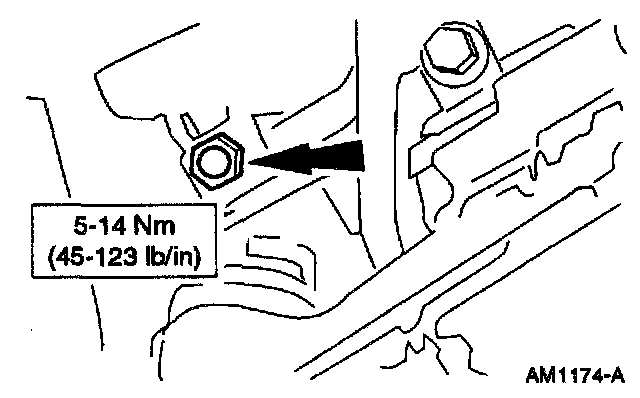

2. Remove the A/C compressor pressure relief valve.
INSTALLATION
1. To install, reverse removal procedure.
- Lubricate the O-ring seal with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
