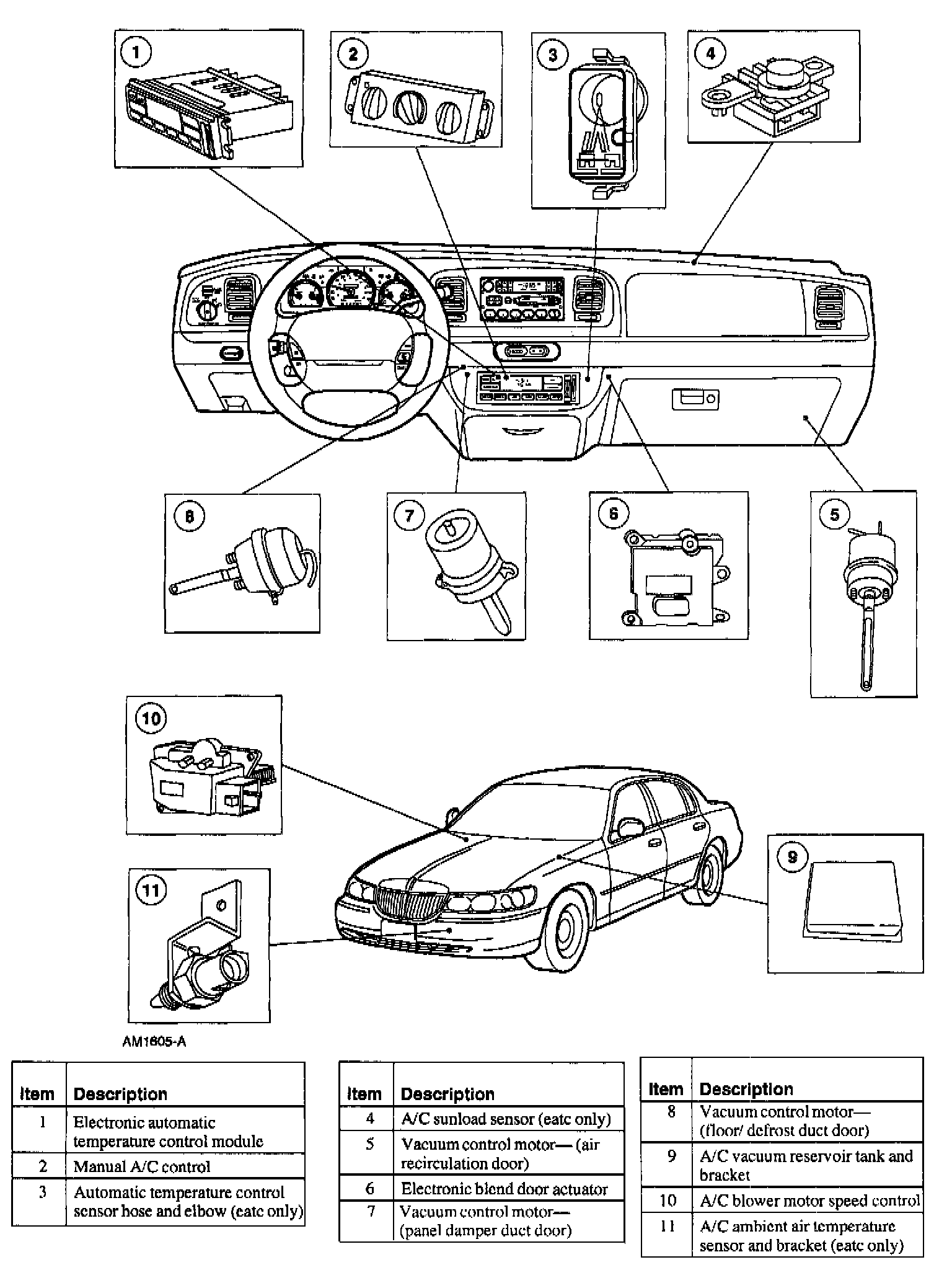

Electronic Climate Control

With the use of a microcontroller, the Electronic Automatic Temperature Control (EATC) module analyzes input from the following major sources:
- temperature, function and blower selection (made by the vehicle occupants)
- in-vehicle temperature sensor
- ambient temperature sensor
- sunload sensor
- vehicle speed sensor
- engine coolant temperature sensor

Using these inputs, the microcontroller determines the correct conditions for the following outputs:
- A/C clutch engagement
- blower speed
- air temperature blend door position
- floor/panel door position
- panel/defrost door position
- air inlet duct door position

Part 1 Of 2:

Part 2 Of 2:

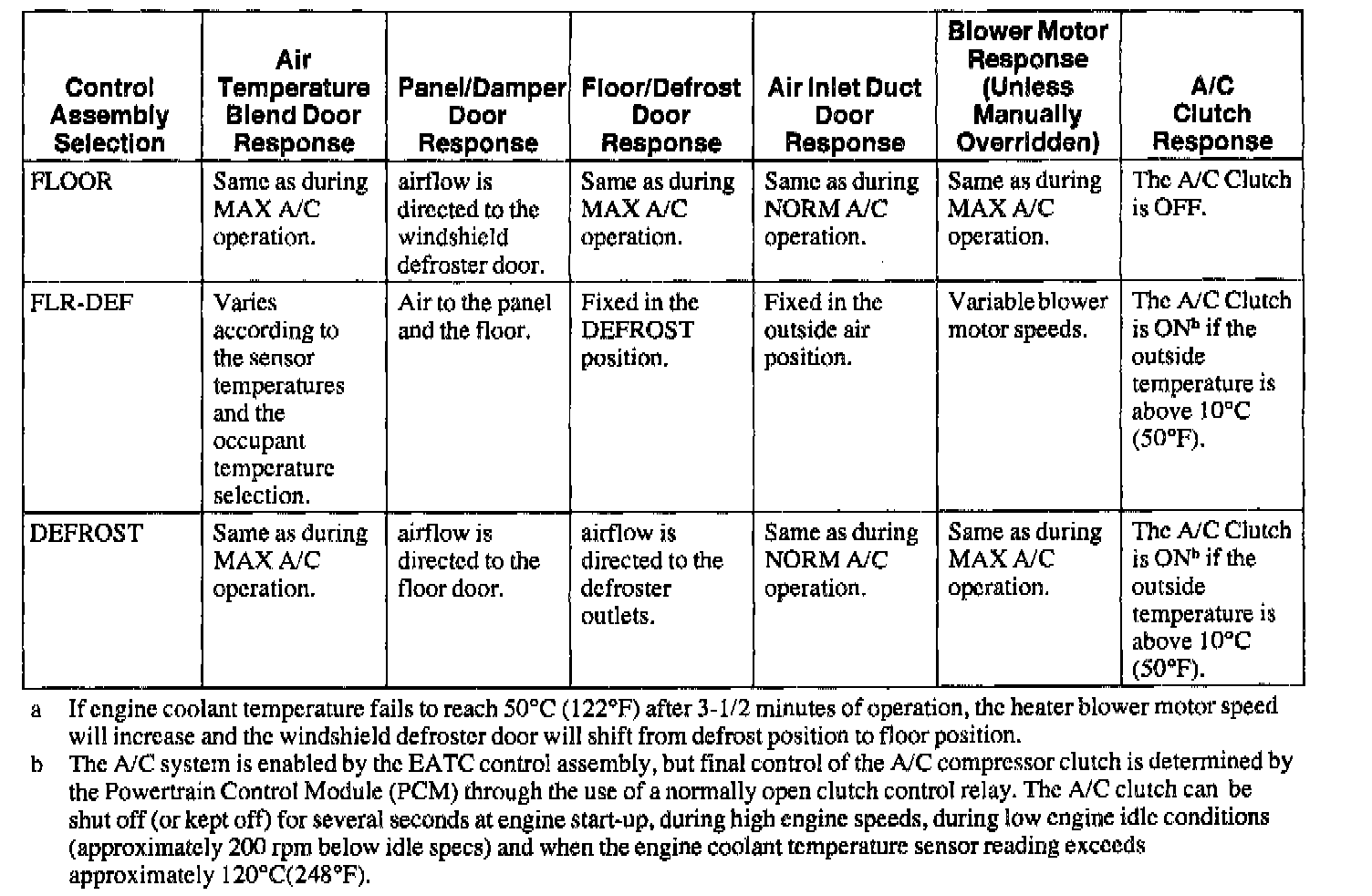

System Response
