Blend Door

REMOVAL
1. Remove the plenum chamber.
2. Remove the electronic blend door actuator.

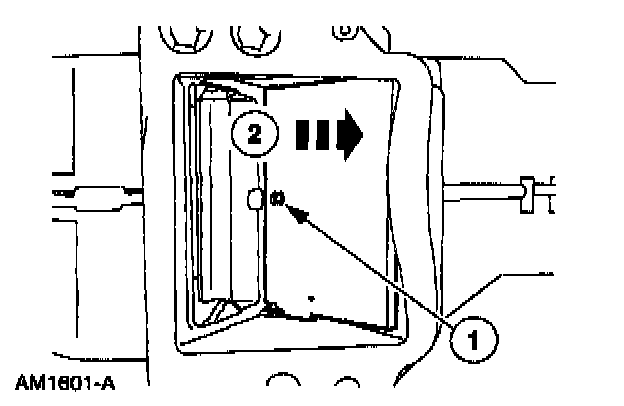

3. Remove the temperature blend door.
1 Remove the screw.
2 Remove the temperature blend door.

INSTALLATION
1. To install, reverse the removal procedure.
