Windshield Defroster Door

REMOVAL
1. Remove the plenum chamber.







2. Remove the screws.







3. Remove the floor duct.

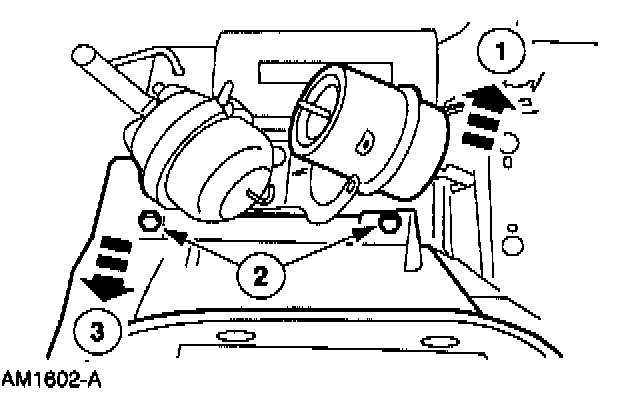

1 Position the vacuum motor aside.
2 Remove the screws.
3 Remove the floor duct.

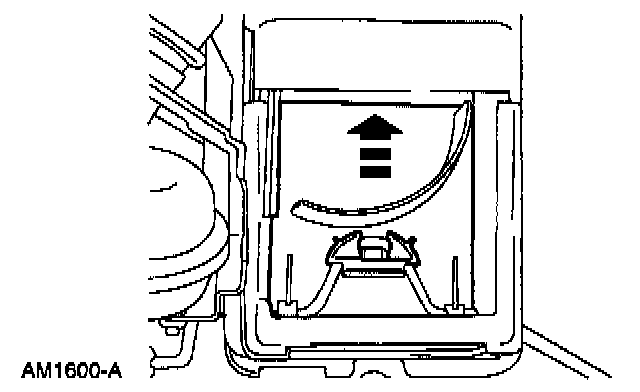

4. Reach through the opening and remove the duct door.

INSTALLATION
1. To install, reverse the removal procedure.
