Recirculating Air Duct Door

REMOVAL
1. Remove the recirculating air duct.







2. Remove the heater and the air recirculating duct door.

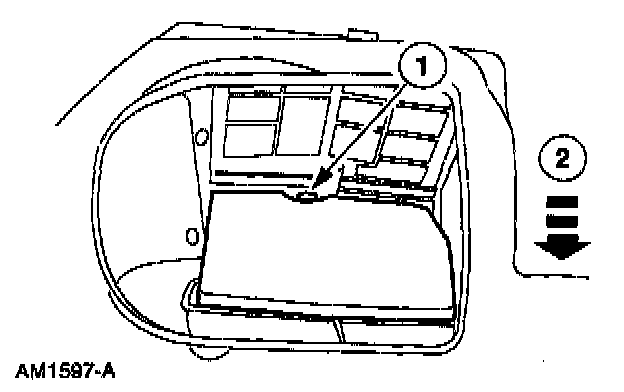

1 Remove the screw.
2 Remove the heater and the recirculating duct door.

INSTALLATION
1. To install, reverse the removal procedure.
